LEV 16252-1PT LA DEC REC SPLIT W/1P

Manufacturer: Leviton Mfg Co | Catalog # 16252-1PT | Cooper Electric Part # 2015026
$21.11/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

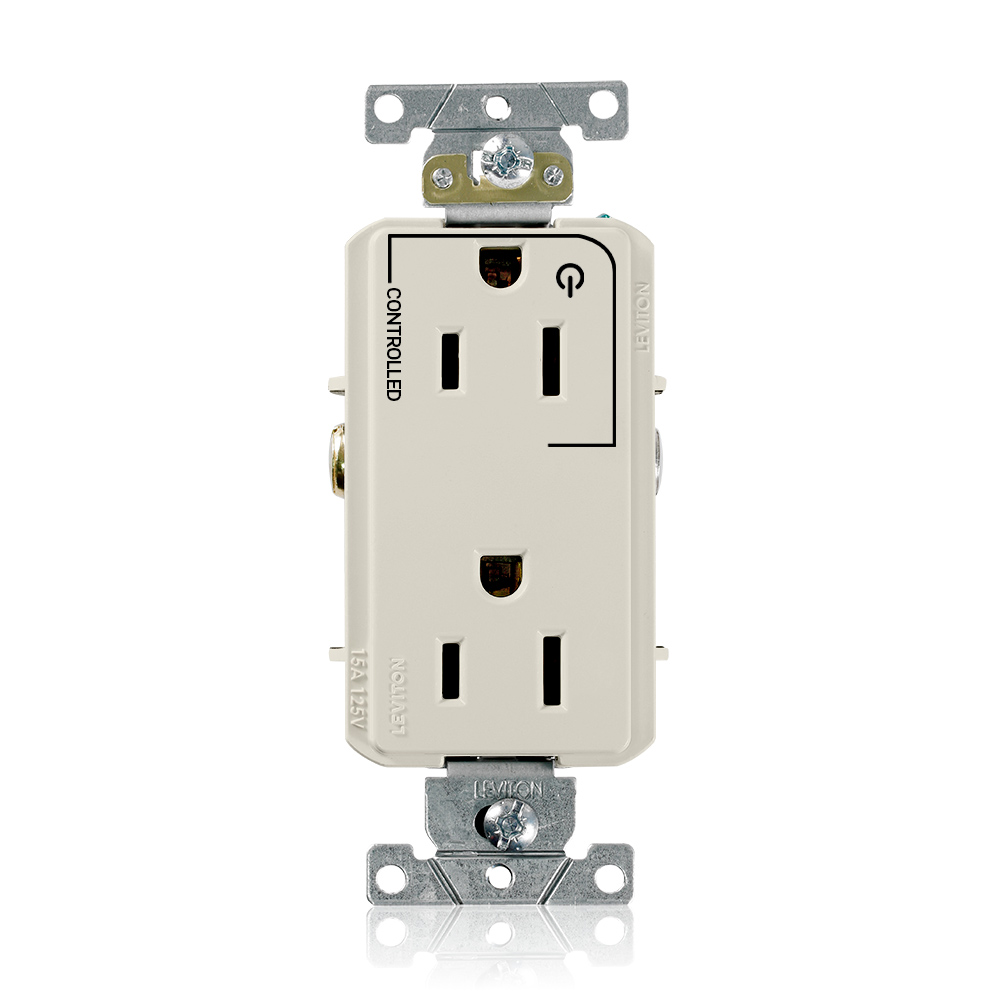

Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Split-Circuit, One Outlet Marked "Controlled", Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Light Almond

Technical Information

Amperage
15 Amp
Applications
Commercial
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Contact Material
Brass
Contact Type
Triple-Wipe
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Insulation Material
Brass
Material
Zinc
NEMA
5-15R,5-15R,WD-1,WD-6
Number of Holes
8 Hole
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Zinc-Plated Steel
Screw Size
10-32,8-32
Standard
ANSI C-73,ANSI C-73,CSA C22.2 No.42,CSA C22.2 No.42,Fed Spec W-C-596,Fed Spec W-C-596,UL 498,UL 498
Temperature Rise
30 degrees C
Terminal Size
14-10 AWG
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Decora Duplex Receptacle
Voltage
125 Volt
Wire Count
3,3
Wire Type
Solid Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477706220
Color
Light Almond
GTiN
00078477706220
Product UPC
07847770622

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
CULus,CULus,NON-ANCE,NON-ANCE
Country of Origin
Mexico
Patents
  • MX321216
  • US8684771
Features
  • Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
