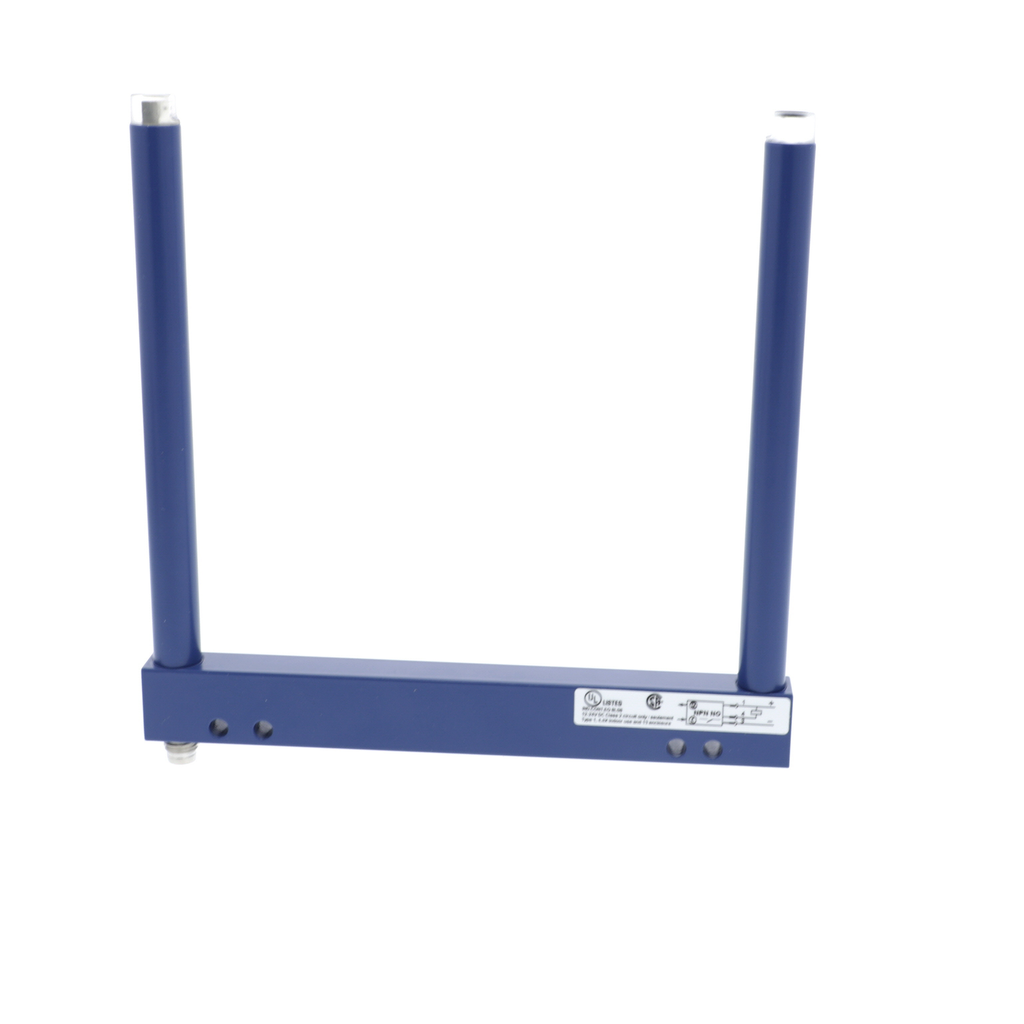

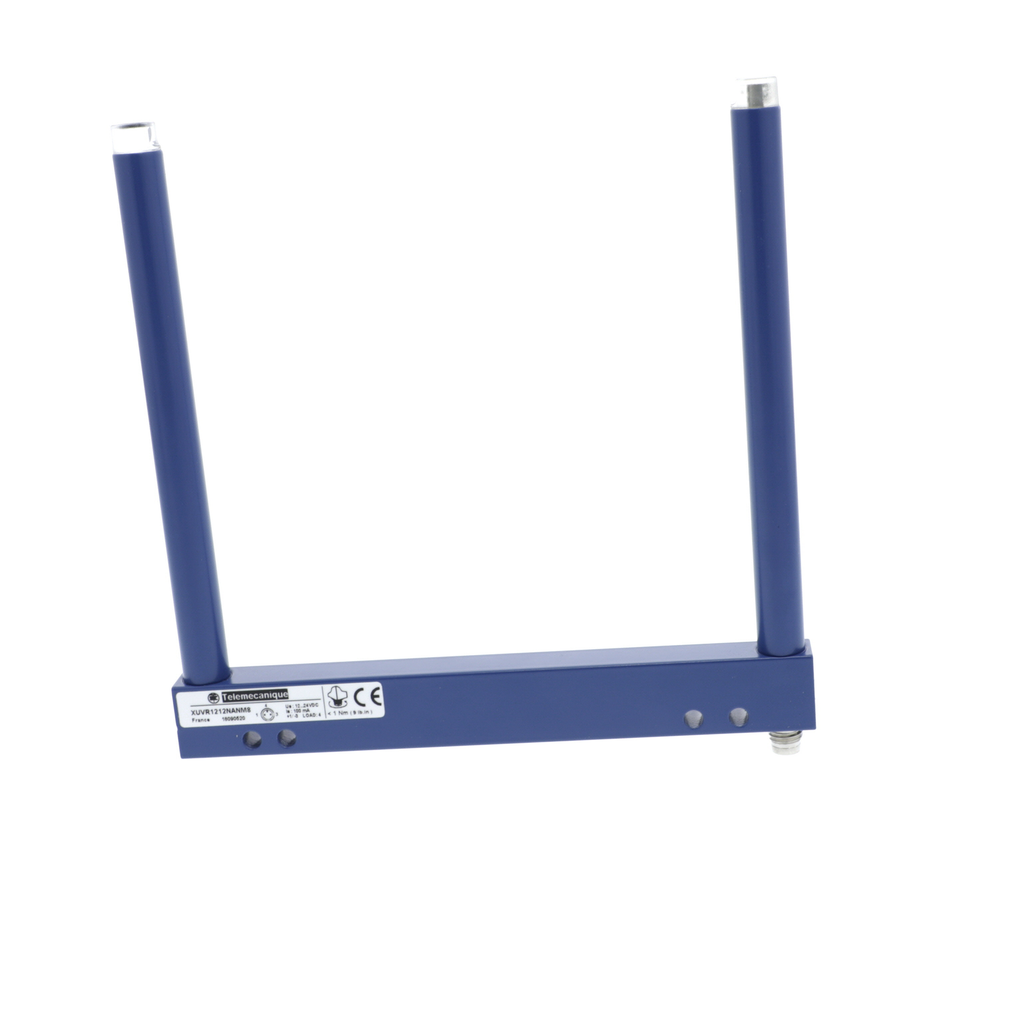

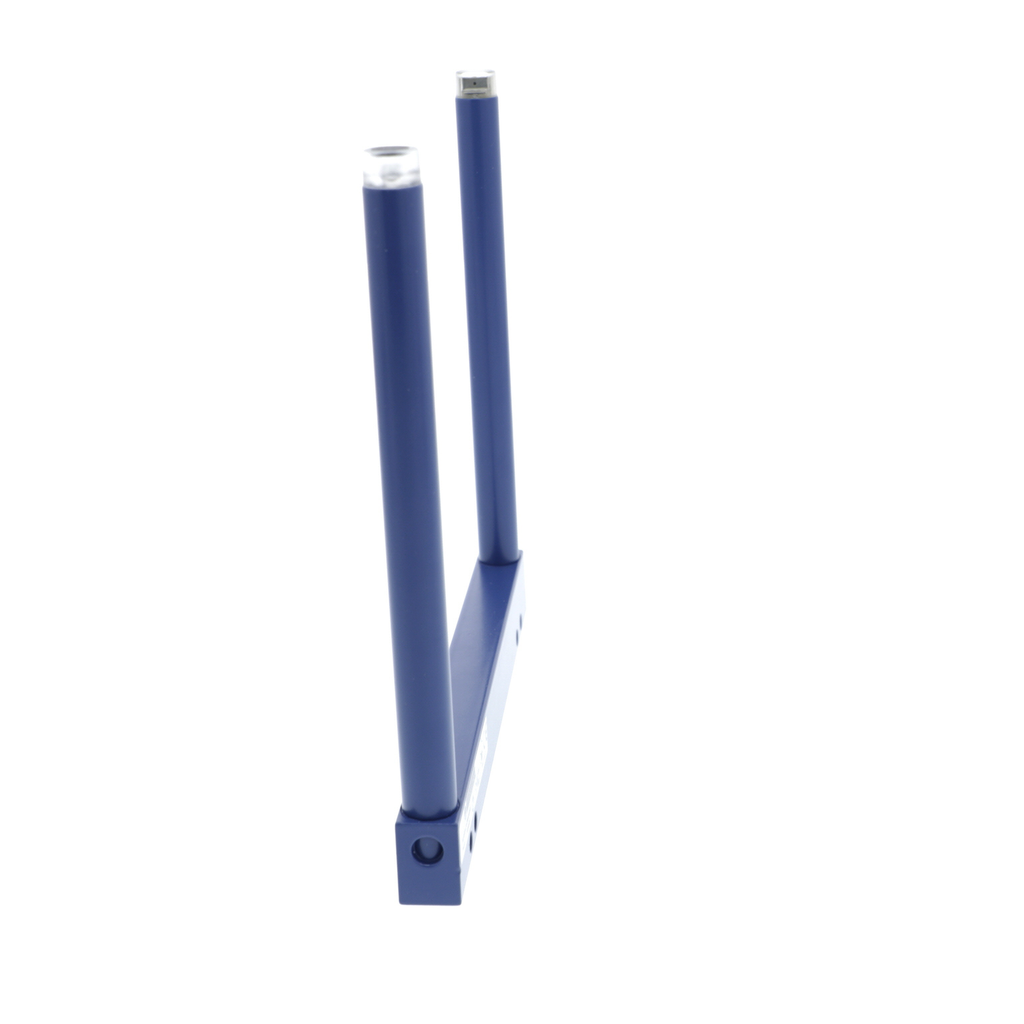

TES XUVR1212PANM8 Photoelectric sensors XU, XUV, fork, 120X120mm, 12...24 VDC, M8

Manufacturer: TES Electric | Catalog # XUVR1212PANM8 | Cooper Electric Part # 2011057
$173.65/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This single mode (thru-beam system) optical fork has a painted aluminium and polyamide (case). It has a supply voltage of 12V to 24V DC. This optical thru-beam non-adjustable fork has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has a corrosion resistant and non magnetic painted aluminium casing. 1 LED display allows to identify status of the sensor. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+55.C). It has a standard M8 connector, compatible with all existing market sensor cabling. It provides high immunity to ambient light up to 10,000 lux. It is CSA and UL certified.

Technical Information

Amperage
100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications
Detection on small conveyor
Current
20 mA
Enclosure
IP65-IP67,PAINTED ALUMINIUM AND POLYAMIDE/GLASS
Enclosure Material
Aluminum
Material
Metal
Net Weight
0.19 kg
Operating Cycles
4000
Operating Temperature
-10-60 Adegrees C
Output
1 NO;PNP;Solid state;Discrete
Sensing Range
120-120 MM
Size
FORK
Storage Temperature
-40-80 degrees C
TC Connection
1 MALE CONNECTOR M8, 3 PINS
Type
Thru beam;Photo-electric sensor;Fork;General purpose
Voltage
12...24 Volt DC REVERSE POLARITY PROTECTION

Manufacturer Information

Brand
Telemecanique
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
891190407614
Product UPC
89119040761
Weight
0.42 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
France
