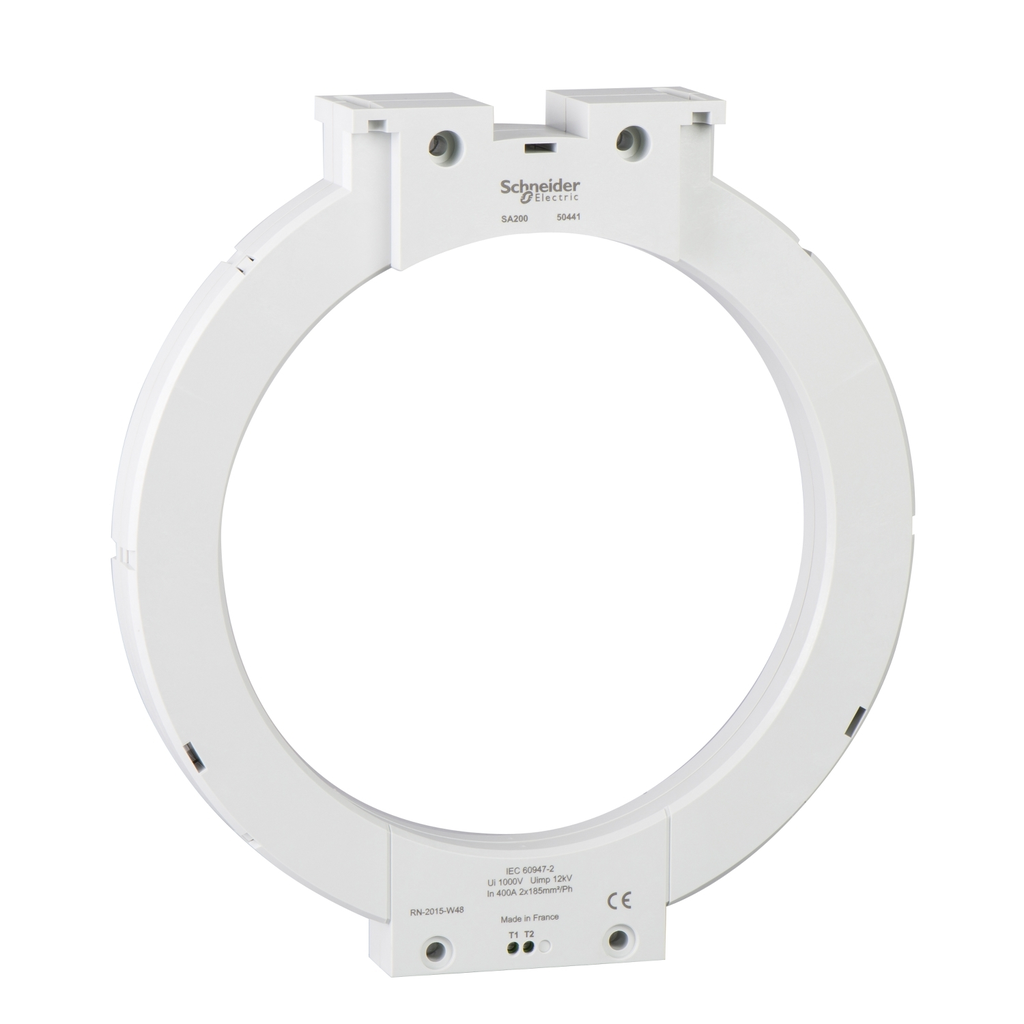

SQUARED 50442 Closed toroid A type,

Manufacturer: Square-D / Schneider | Catalog # 50442 | Cooper Electric Part # 2010440
$2,295.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 630A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 300 millimeters and the weight is 2.280kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 150 millimeters. The maximum cross section per phase (R, S, T, N) is 2 cables of 240mm. for a copper conductor.

Technical Information

Amperage
630 Amp
Applications
Equipment monitoring and control
Mounting Type
Fixed Cables)
Net Weight
2.23 kg
Operating Temperature
-35-70 Adegrees C
Range
Vigirex
Standard
IEC 60947-2
Storage Temperature
-55-85 degrees C
TC Connection
CONNECTION BY CLIP 6.35-6.35 MMA
Type
A type closed toroid;Earth leakage current sensor
Voltage
1/1000

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GA300

General Product Info

12-Digit UPC
303430504422
Environmental Conditions
EXPOSURE TO DAMP HEAT NOT IN SERVICE 25...55 A?C, RH 95 ) 28 CYCLES IEC 60068-2-30-SALT MISTKB/2 IEC 60068-2-52-EXPOSURE TO DAMP HEAT IN SERVICECATEGORY C2 48 HOURS IEC 60068-2-56
GTiN
03303430504429
Weight
2.23 kg

Dimensions

Chain Cable Diameter
150-150 mm
Depth
46 mm
Diameter
291 mm
Height
360 mm
Length
1.81 Inch
Warranty Length
18 mth
Width
390 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
