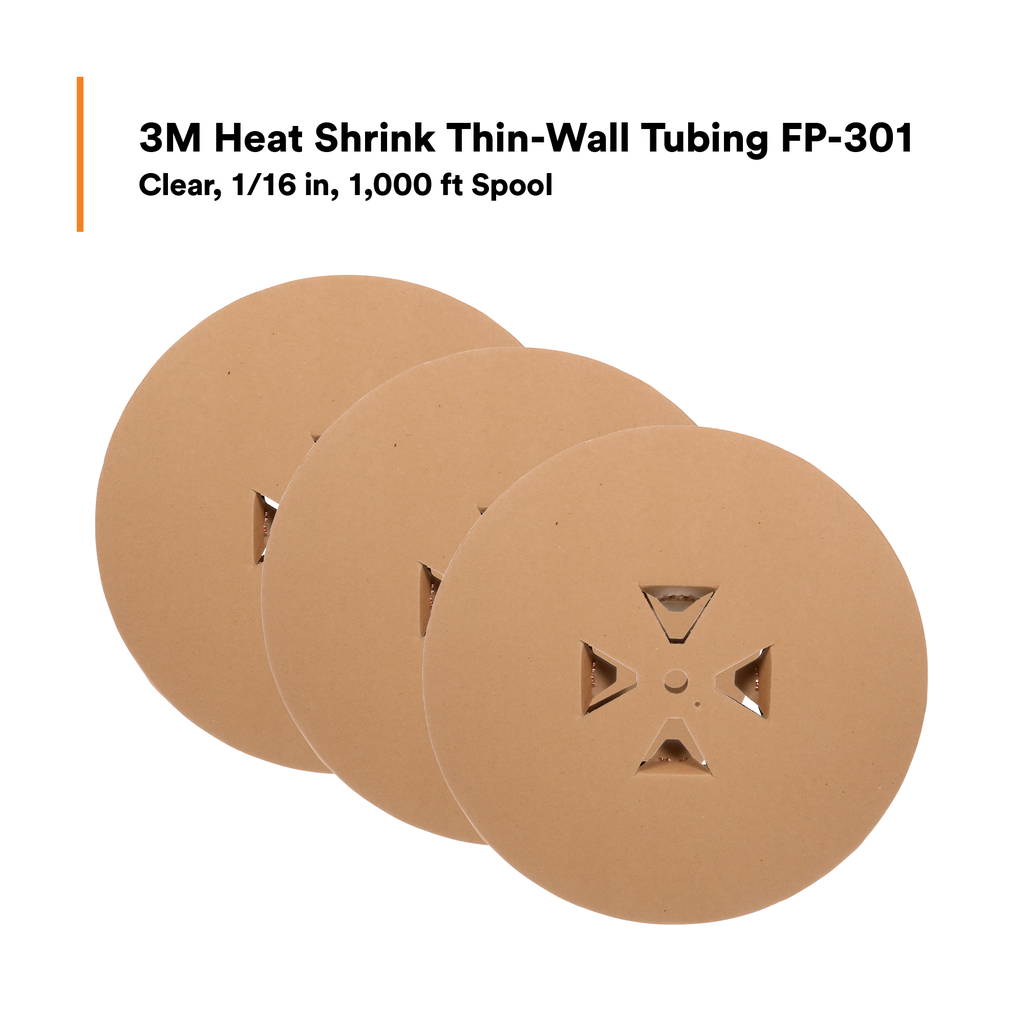

Product image for 3M 7100025158 3M™ Heat Shrink Thin-
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

3M 7100025158 3M™ Heat Shrink Thin-

Manufacturer: 3M | Catalog # 7100025158 | Cooper Electric Part # 2008773
$0.81/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

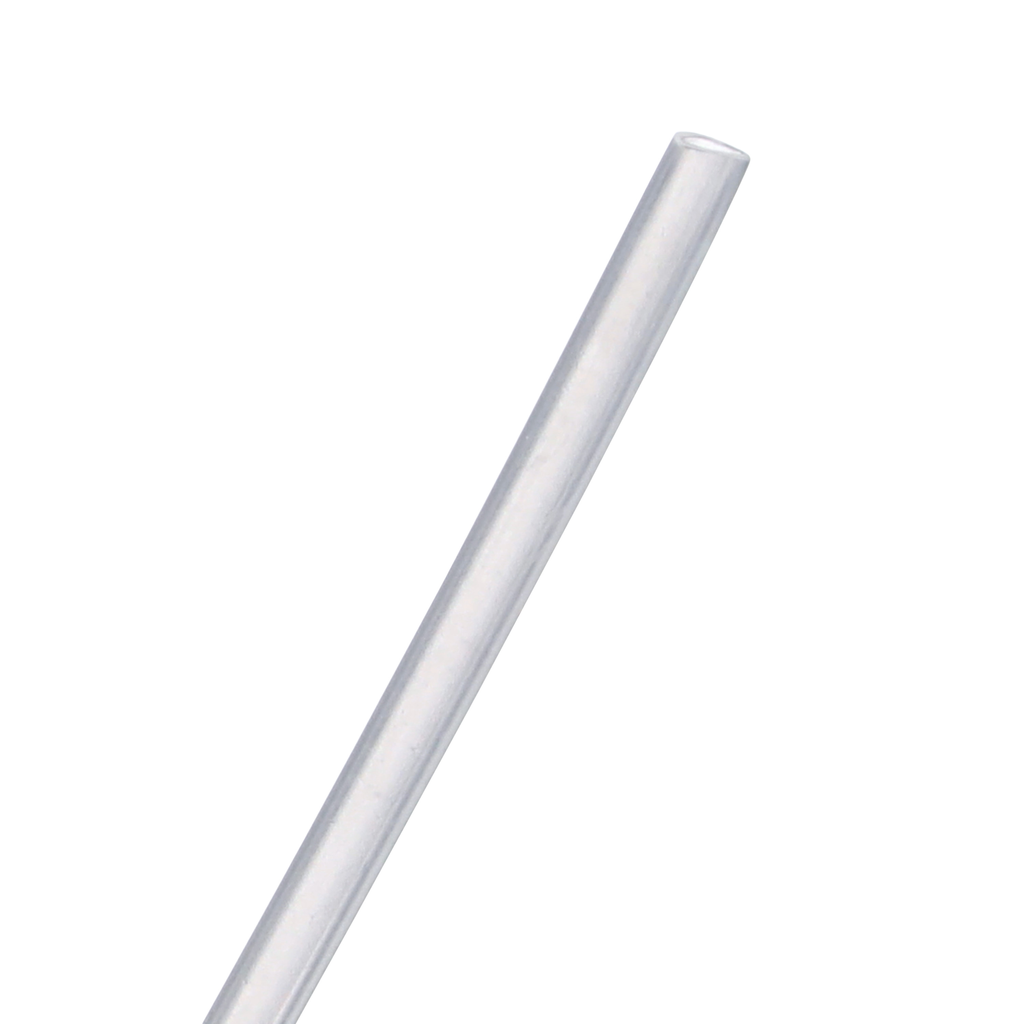

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Technical Information

Dielectric Strength
900 V/mil
Material
Polyolefin
Max Operating Temperature
135.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
2 to 1
Tensile Strength
2400 lb/in
Type
Single (Thin) Wall

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007085249
Color
Transparent
GTiN
00054007085249
Product UPC
05400708524

Dimensions

Inside Diameter
0.031
Length
1000 Foot
Outside Diameter
0.063 in
Overall Length
1000.0 ft
Thickness
0.017

Certifications and Compliance

Country of Origin
USA
Features

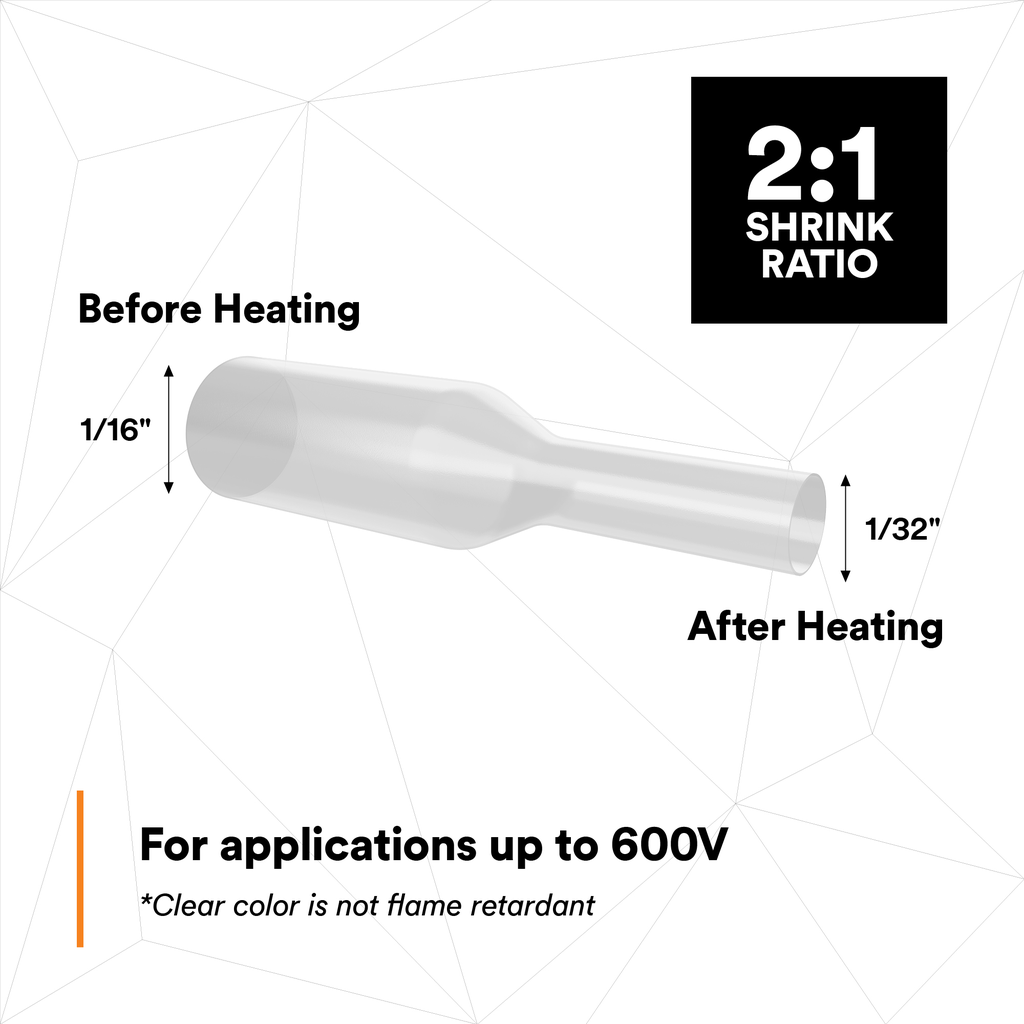

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
