SATCO S11764 9T8/LED/24-5CCT/BP/SE-

Manufacturer: Satco | Nuvo | Catalog # S11764 | Cooper Electric Part # 2004644
$13.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

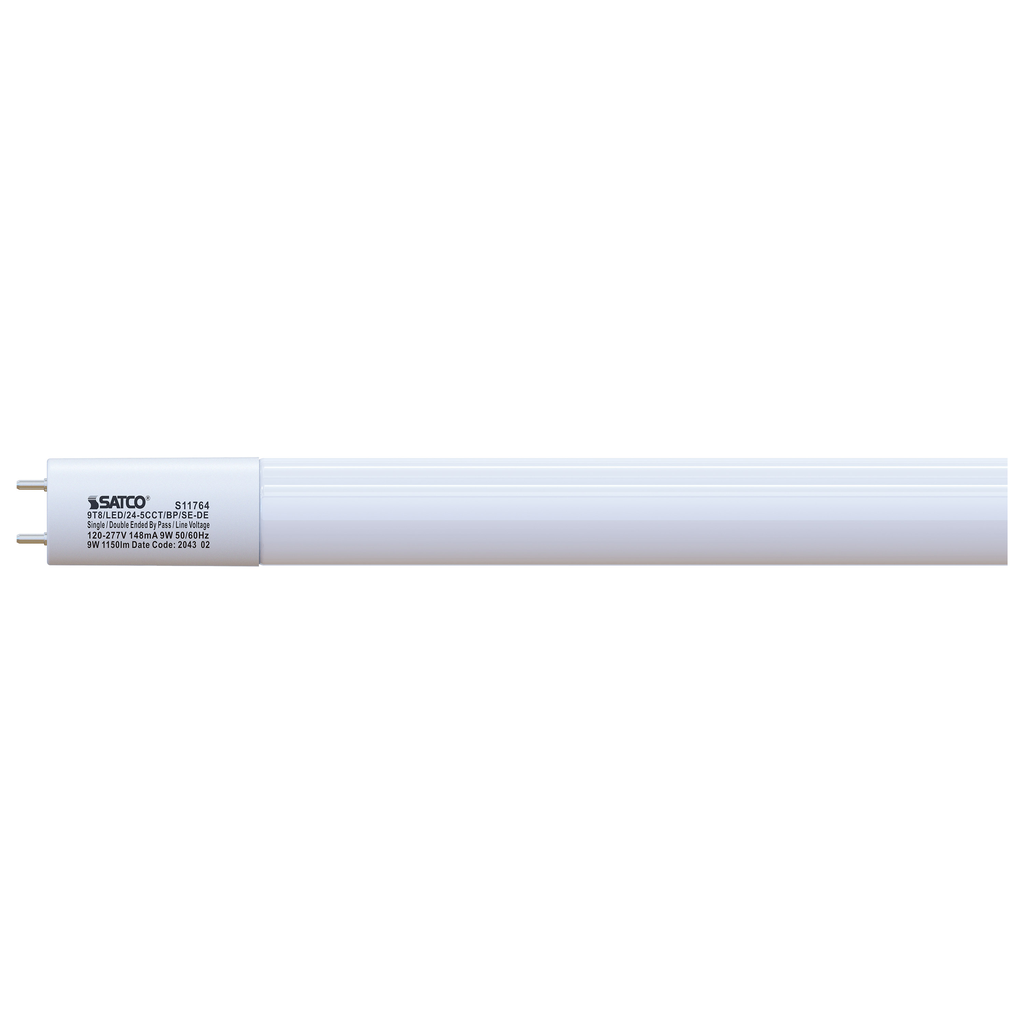

9-Watt 2-Foot LED T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt

Technical Information

Amperage
0.075-0.032 Amp
Applications
Indoor Lighting
Average Rated Life
50000 hr
Beam Angle
210 DEG
Beam Spread
210
Color Temperature
Warm White To Daylight
Correlated Color Temp
Warm White to Daylight
Incandescent Equivalent
40 W
Lamp Type
LED
Lens Color
Frost
Lens Material
Glass
Lumens
1,150 Lumen
Material
Glass,Plastic
Operating Temperature
-20 degrees C
Power Factor
0.9
Technology Type
LED
Type
Linear
Voltage
120 Volt
Wattage
9 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923117640
Finish
White
GTiN
00045923117640
Housing Color
White
Product UPC
04592311764
Weight
0.25 lb

Dimensions

Length
24 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • MOL: 23.17 inches, MOD: 1.00 inch
  • Medium Bi Pin base
  • CCT Selectable
  • Rated for 50,000 hours
  • Damp location rated
  • Single or double-ended wiring
  • 5-Year Warranty
  • Non CCT Selectable options are S39900-S39903
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
