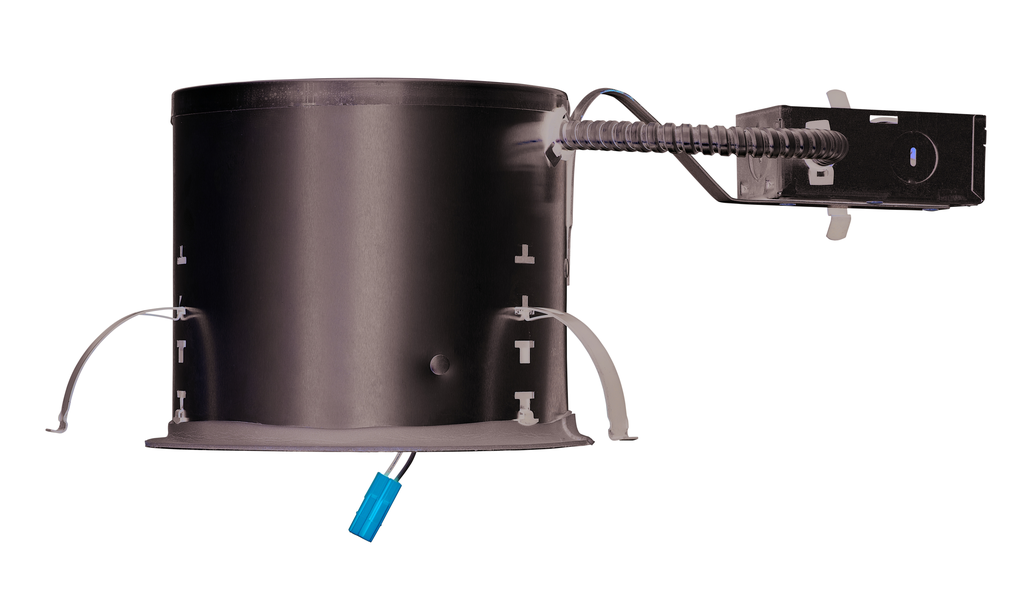

Juno QC6RWG-J6 6" Quick-Connect LED Remodel Downlight Housing, Push-In Electrical Connectors, Air-Loc Gasket, 27K-50K

Manufacturer: Lithonia Lighting | Catalog # QC6R W G J6 | Cooper Electric Part # 2001085
$23.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Contractor Select

Technical Information

Aperture Size
6 in
Applications
Education,Hospitality,House Of Worship,Residential,Retail
Lamp Type
LED
Lumens
Lamp Not Included Lumen
Material
Steel
Mounting Type
Recessed
Number of Lamps
Not Applicable
Type
Downlight
Voltage
120 Volt

Manufacturer Information

Brand
Juno Lighting

General Product Info

12-Digit UPC
196182647123
Color
Unfinished
Construction
Remodel
Environment
Indoor
Environmental Conditions
Indoor
GTiN
00196182647123
Product UPC
19618264712
Shape
Round
Weight
1.27 lb

Dimensions

Height
5-3/4 Inch
Length
13-3/4 Inch
Width
7.5 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features

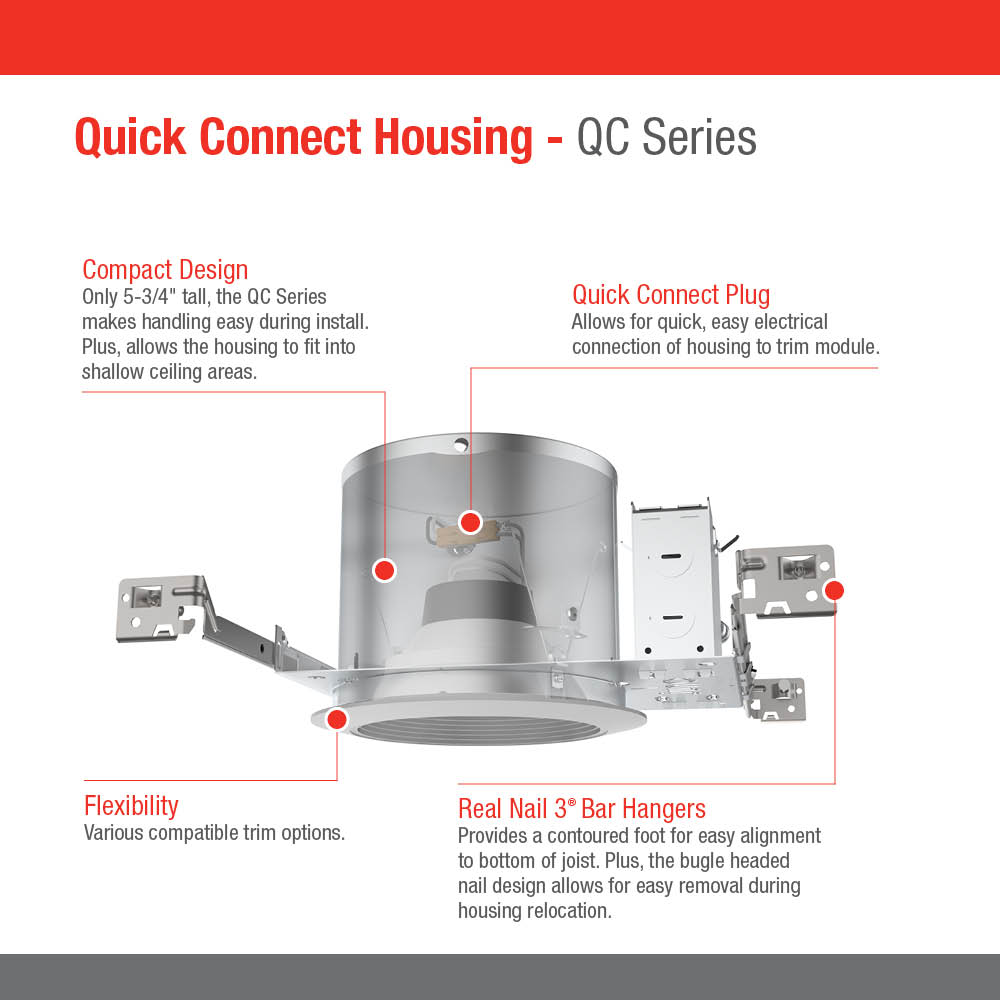

  • DESIGN: Juno® Quick Connect Housing provides an orange quick connect plug that is provided as standard for electrical attachment of the LED retrofit trim to the housing. This plug allows you to quickly plug the retrofit trim straight into the housing.
  • ENERGY SAVINGS: Quick Connect Housing offers an energy-efficient, Air-Loc® sealed housing that stops ex-filtration and infiltration of air, reducing heating and cooling costs.
  • COMPATIBLE: Quick Connect Housing is compatible with Acuity Brands® retrofit trims, including: E Series, RLD Series, J6RL Series, G Series, RLA Series and Juno AI Smart Downlight.
  • RATINGS/LISTINGS: Can be used to comply with 2019 Title 24 Part 6 JA8 high efficacy LED light source requirements, UL listed for U.S. and Canada through-branch wiring, damp locations, When used with E and RLD series, suitable for wet locations, UL and cUL

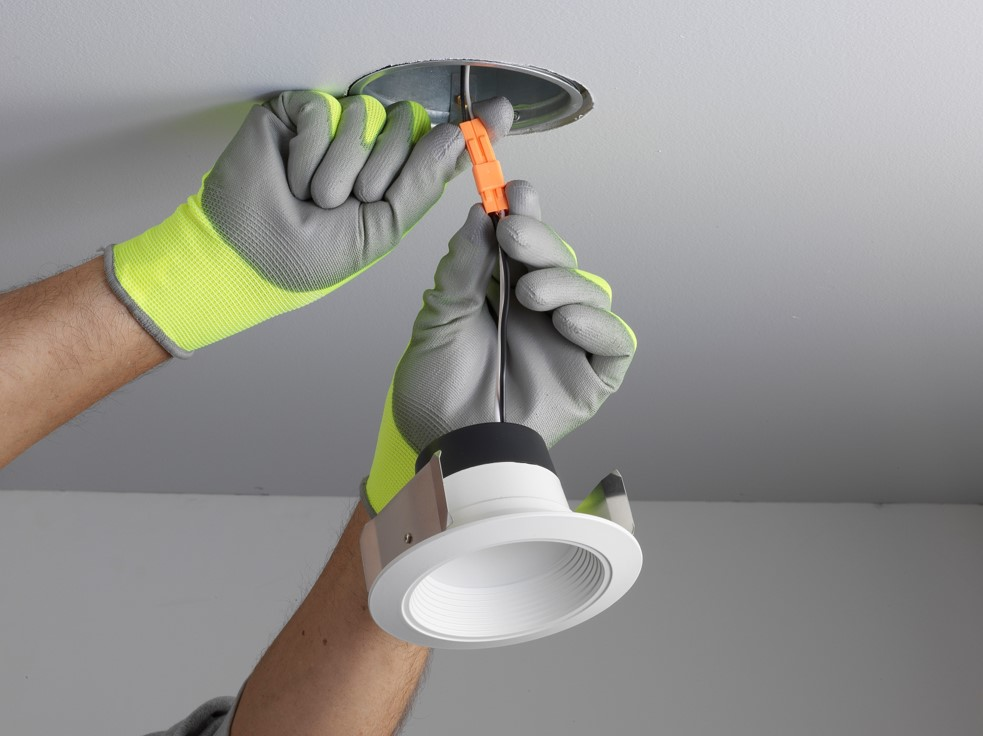

  • INSTALLATION: The Quick Connect Housing's compact design, less than 6\" tall, makes handling easy during installation and allows the housing to fit into shallow ceiling areas. Plus, the orange plug allows for quick connection from housing to trim.
  • Does not apply.
  • DESIGN FEATURE BENEFIT: Designed for direct contact with insulation. Plus, the housing has a wide selection of compatible trim options for downlighting and accent lighting.
  • Emergency battery currently not available
  • WARRANTY: 1-year
  • DIMENSIONS: Housing Height 7 1/8\", Housing Width 7 5/16\"\", Housing to Junction Box 13 3/4\", Ceiling Cutout 6 3/4\
Standards
  • C-UL-US
  • ULCA Title 24
Applications
  • Education
  • Hospitality
  • House of Worship
  • Residential
  • Retail
