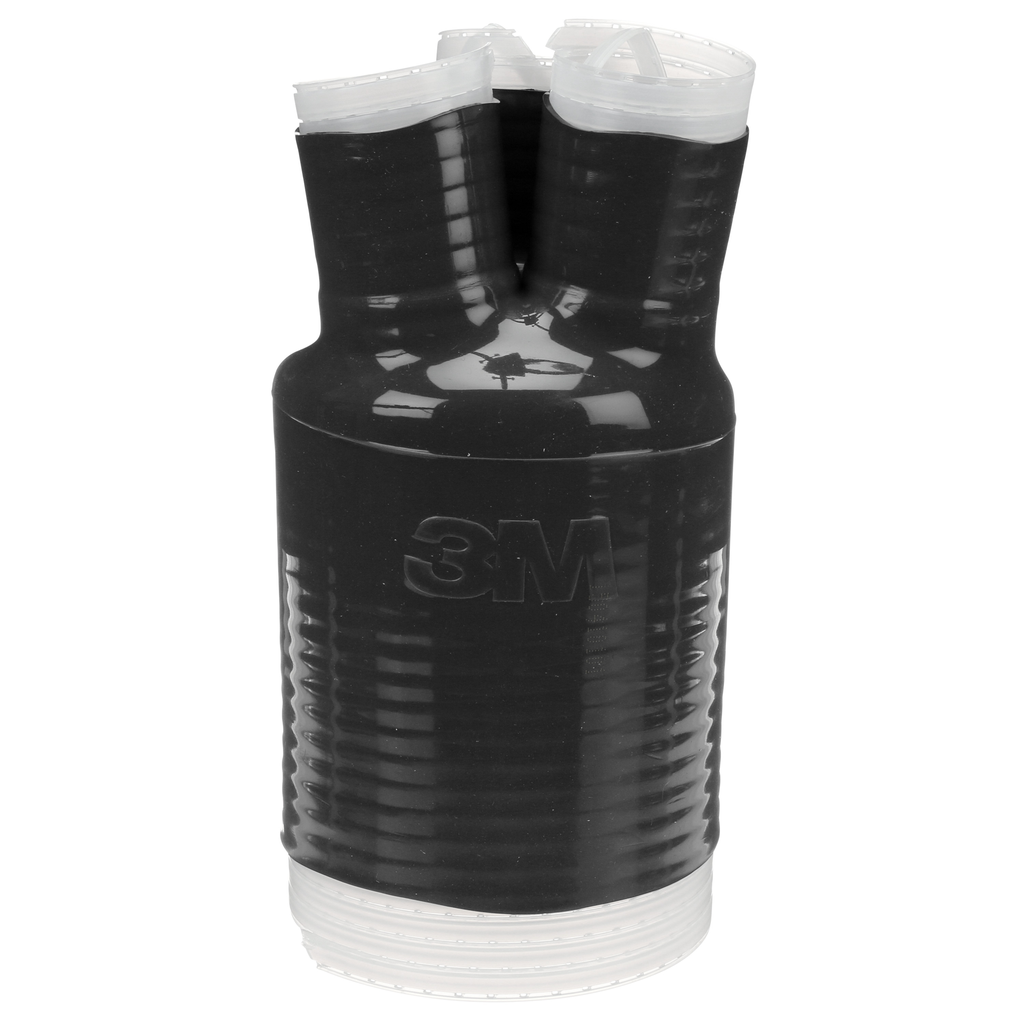

Product image for 3M 8564 Breakout Boot
Email

3M 8564 Breakout Boot

Manufacturer: 3M | Catalog # 7100009350 | Cooper Electric Part # 1997885
$424.36/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
3M™ Cold Shrink Silicone Rubber 3/C Cable Breakout Boot 8564 has a 1.02-1.63 in (26.0-41.1 mm) phase shield range and a 2.52-4.32 in (64.0-109.8 mm) outer jacket range. It is an open-ended molded rubber sealing assembly that has been factory expanded and mounted on a removable plastic core.

Technical Information

Applications
to protect the phase leg breakout of 3/C medium voltage power cable from exposure to moisture, contamination, corrosion, ozone, ultraviolet radiation, physical contact and other hazards associated with 3/C termination operating environments
Insulation Material
Top Insulator
Material
Silicone
Tensile Strength
1370 lb/in
Type
Cold Shrink Boot
Voltage
892.857/5,000/8,000/15,000 Volt

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007431466
Color
Gray
GTiN
00054007431466
Product Type
Cable & Wire Accessory
Product UPC
05400743146

Certifications and Compliance

Country of Origin
China
Features
  • Ensures excellent insulation and void-free sealing of cable breakouts
  • High dry- and wet-insulation resistance
  • Creates an environmental enclosure for individual cable phases
  • Has an outer jacket diameter range of 1.3 to 1.94 inches
  • 3-way outlet
  • Dark gray silicone rubber construction
