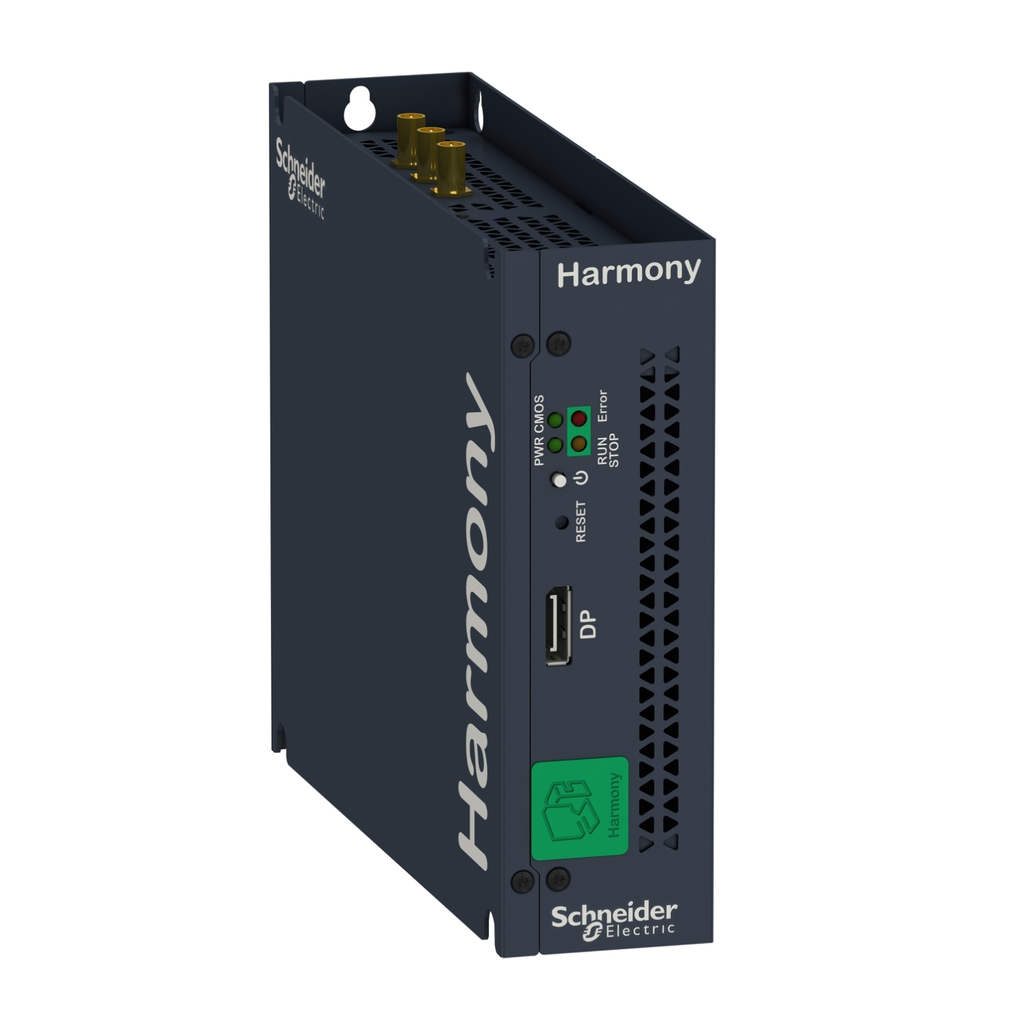

Product image for SQUARED HMIBMIEA5DD1101 modular box
Email

SQUARED HMIBMIEA5DD1101 modular box

Manufacturer: Square-D / Schneider | Catalog # HMIBMIEA5DD1101 | Cooper Electric Part # 1996092
$1,597.44 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
This product is part of the Harmony iPC range, an offer of Harmony HMIBM Edge Box PCs. It support advanced automation applications requiring Windows operating systems, with powerful CPUs, expansion capabilities, high-availability options and advanced certifications. It is equipped with Intel Atom E3930 upto 1.8 GHz processor and pre-installed Windows 10 IoT Enterprise (64-bit Multi-language) operating system. It comes with 4GB DDR3 RAM and 64 GB eMMC storage. This product works at a power consumption of 20 W and a rated voltage from 9.6V to 28.8V DC. Its dimensions are 187mm (width) x 150mm (height) x 46mm (depth) and weighs 1.20 kg. This Edge Box comes with IP40 degree of protection conforming to IEC 60529. Harmony iPC runs at the Edge Control level of EcoStruxure, improves productivity and performance with data management functionality and flexibility.

Technical Information

Net Weight
1.2 kg
Operating Temperature
0-50 degrees C By Default) EN/IEC 60068-2-2 || 0-50 degrees C Flat Mounting || 0-45 degrees Cmini PCIe || 0-45 degrees C Flat Mountingmini PCIe
Standard
Class A Group 1 IEC 55011,FCC Part 15,IEC 61000-6-4,IEC 61131-2,UL 60950
Storage Temperature
-20-60 degrees C IEC 60068-2-14,-20-60 degrees C IEC 60068-2-2

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606489740408
GTiN
03606489740405
Product UPC
60648974040
Weight
1.2 kg

Dimensions

Depth
46 mm
Height
5.91 in
Width
7.36 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CE,CULus,EAC,RCM,UL 60950 For IT Equipments
Country of Origin
Taiwan
Features
  • Equipped with fanless Intel Atom Apollo Lake E3930 dual-core processor, 1.8 GHz
  • Connection ports: 2x USB 3.0, 2x USB 2.0, 1x COM (RS-232/422/485), 2 Gigabit i210 Ethernet, and 2x Display port
  • Expansion slots: 1x full-size mini PCIe slot
