3M 7000138529 Scotch® Rubber Splici

Manufacturer: 3M | Catalog # 7000138529 | Cooper Electric Part # 198857
$99.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

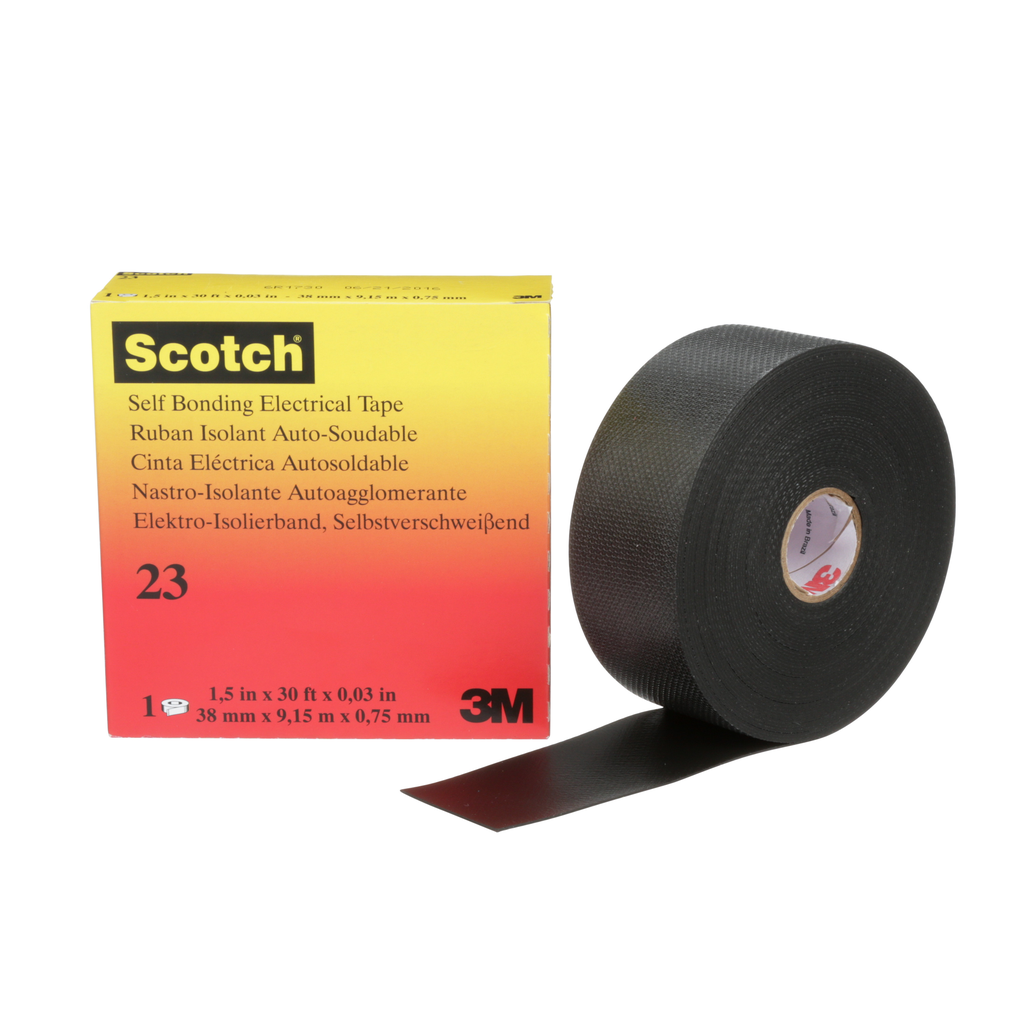

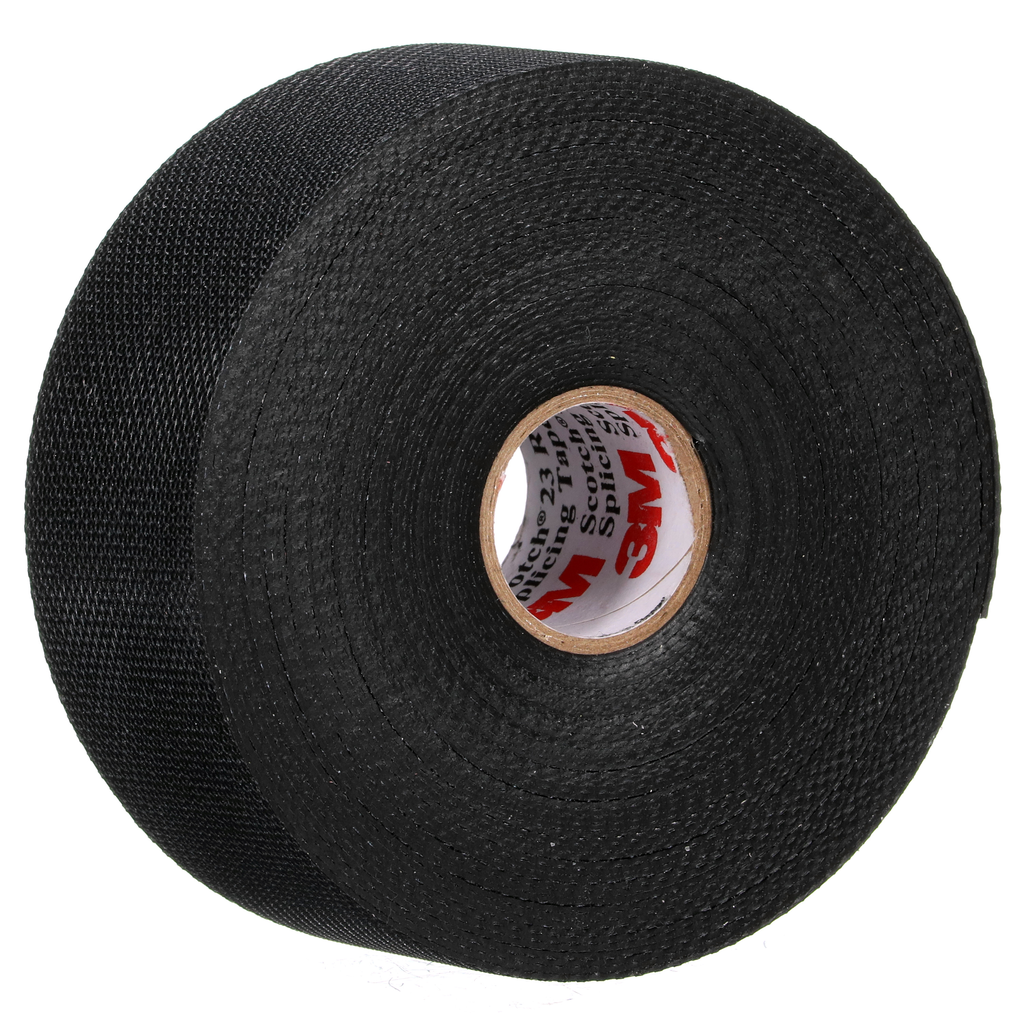

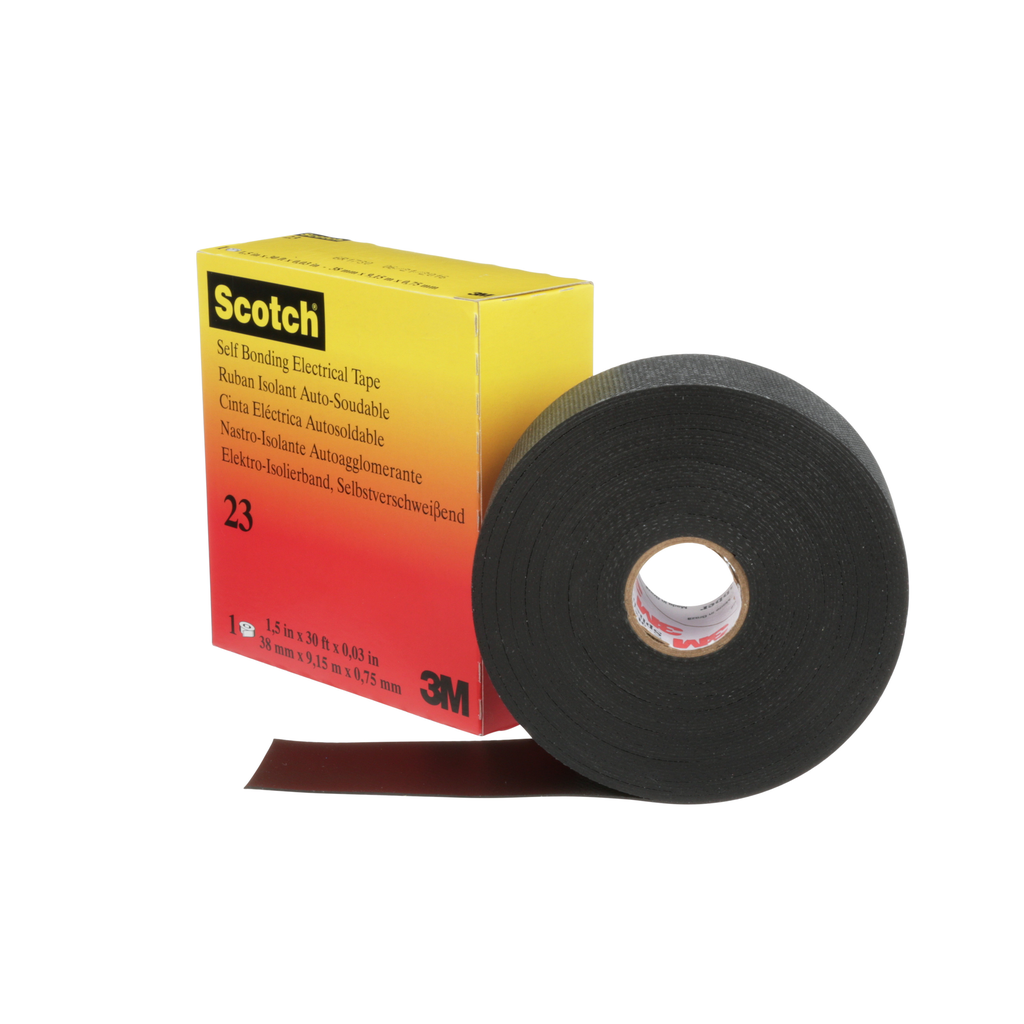

Scotch® Tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 .F (90 .C).

Technical Information

Adhesive Type
Non-Adhesive
Applications
Electrical Maintenance,Insulation
Backing Material
Ethylene Propylene Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
0.0 degrees C
Operating Temperature
90 degrees C
Size
1.5 in x 30 ft
Tensile Strength
8.0 lb/in
Type
Insulating
Voltage
69 kV

Manufacturer Information

Brand
3M
Sub Brand
Scotch®

General Product Info

12-Digit UPC
054007112143
Color
Black
GTiN
00054007112143
Product Type
Rubber And Splicing Tapes
Product UPC
05400711214

Dimensions

Length
30 Foot
Overall Length
30.0 ft
Thickness
30 Milli-inch (mil)
Width
1.5 in

Certifications and Compliance

Country of Origin
Brazil
Features
  • CONFORMABLE: Made with highly conformable ethylene rubber (EPR)
  • PRIMARY INSULATION USE: Used for primary insulation for cable splice and termination applications up to 69kV (ASTM D4388, Type III)

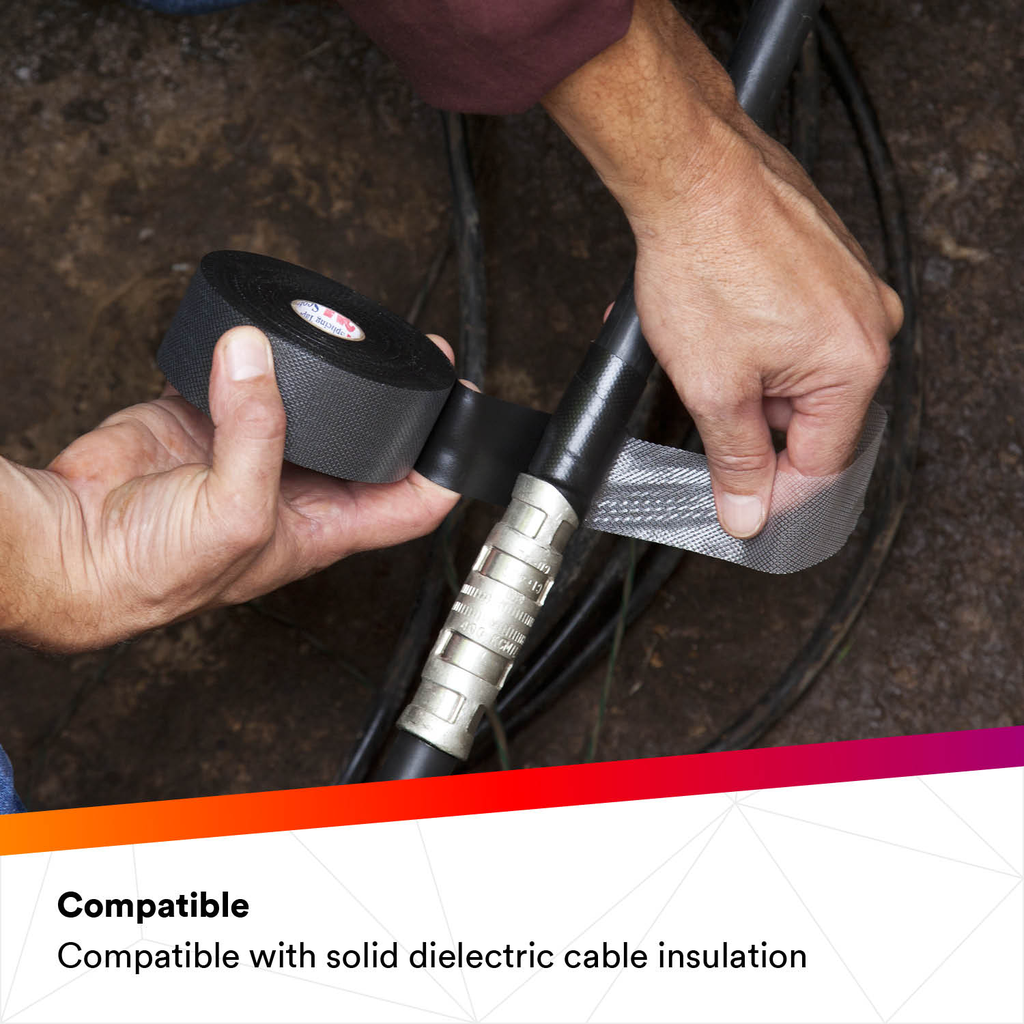

  • COMPATIBLE: Compatible with solid dielectric cable insulation
  • HIGH HEAT USE: Operating temperature rated to 194 °F (90 °C) with an emergency overload rating to 266 °F (130 °C)
  • EASY TO HANDLE: Unwinds without sticking due to the polyethylene liner
  • COMPLIANCE: RoHS and Prop 65 Compliant, Self-certified to ASTM D4388, Type III up to 69 kV (test report available)
