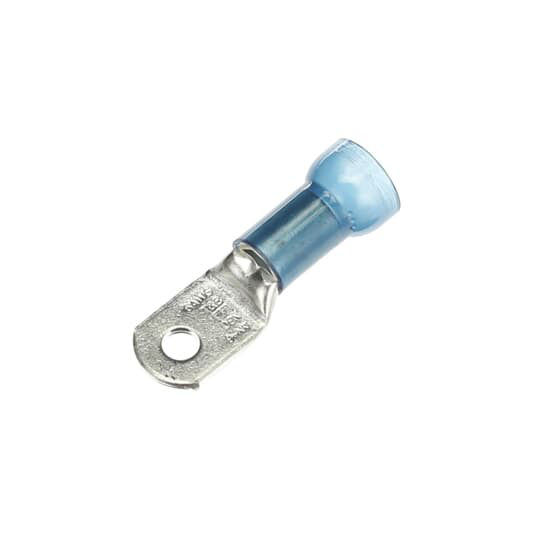

Product image for ABB RE6-10 INS NYL RING TERM 6 BLT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

ABB RE6-10 INS NYL RING TERM 6 BLT

Manufacturer: ABB | Thomas & Betts | Catalog # RE6-10 | Cooper Electric Part # 198552
$827.93/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure
Nylon Insulated Large Ring Terminal, Length 1.65 Inches, Width .49 Inches, Maximum Insulation .420, Bolt Hole #10, Wire Range 6, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed/Overlapping Seam, Funnel
Conductor Size
6 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RE
Type
Short Sleeve
Voltage
600 Volt
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210878614
Color
Blue
Finish
Electro Tin Plated
GTiN
05414363159919
Product UPC
78621087861

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.3 in
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Certifications
  • UL
  • CSA
Notes
  • Not available on Mylar Tape.
