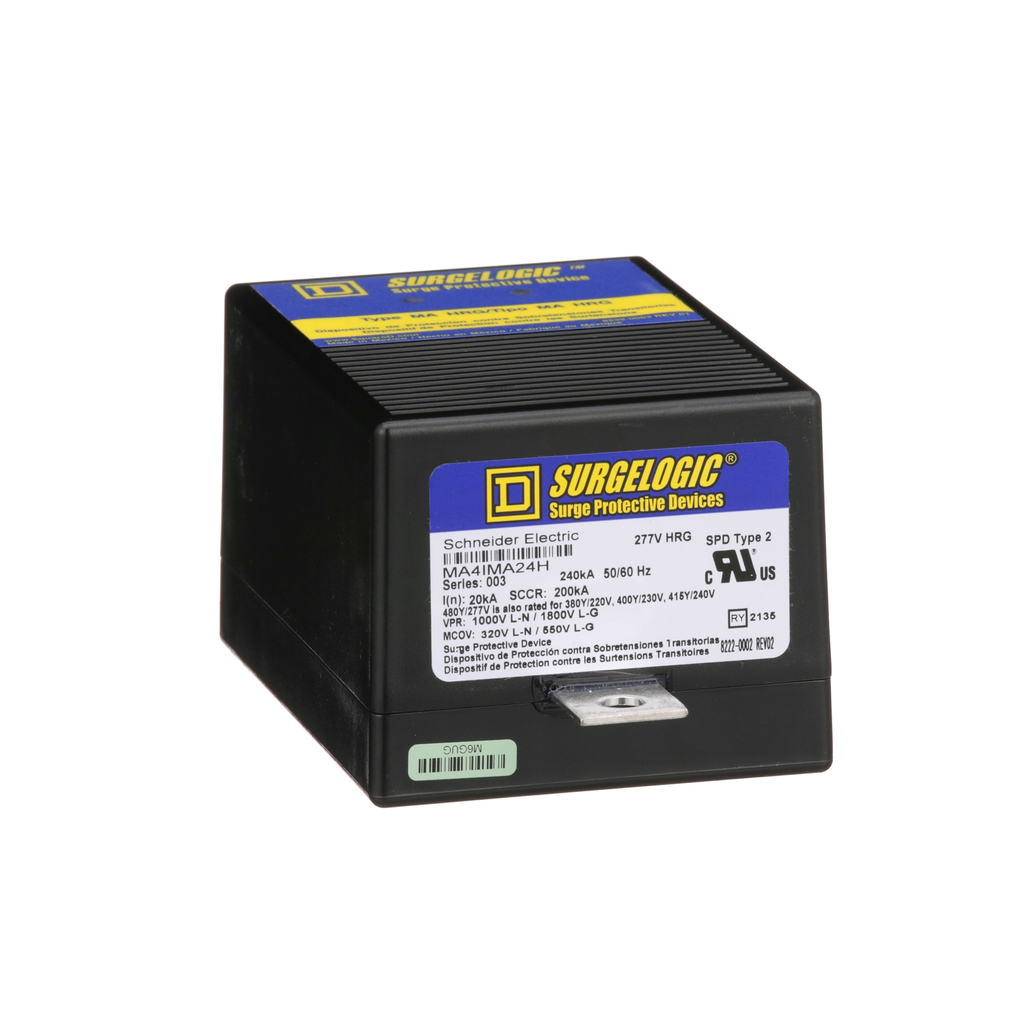

SQD MA4IMA24H Surge protection modu

Manufacturer: Square-D / Schneider | Catalog # MA4IMA24H | Cooper Electric Part # 1984255
$975.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Surgelogic™ Type MA_IMA Systems feature module assemblies designed to ensure continued compliance with safety standards and optimal performance specifications following surge events. This is used as a replacement module for Surgelogic™ IMA Surge Protective Devices, it ensures continued protection and performance. Being modular in design, this unit is able to provide a surge current rating of 240,000 Amps in severe electrical conditions through immediate responses from its advance diagnostic system. Designed for 480Y/277VAC High resistance ground three phase systems. This product is UL and CSA certified.

Technical Information

Enclosure
NEMA 1
Enclosure Material
Plastic
Nominal Discharge Current
20 kA
Number of Phases
3 Phase
Size
158.8 MM,68.3 MM,82.8 MM
Standard
CSA,E2186,UL
Type
4-WIRE,REPLACEMENT PART,SURGE PROTECTION MODULE
Voltage
277/480 VAC

Manufacturer Information

Brand
Square D
Sub Brand
IMA-HRG

General Product Info

12-Digit UPC
785901933434
GTiN
00785901933434
Product UPC
78590193343

Dimensions

Depth
68.3 mm
Height
6.25 in
Warranty Length
18 mth
Width
3.26 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
Features
  • Surgelogic™ provides high performance surge suppression even in severe electrical conditions
  • Externally mounted replacement module design allows for fast, easy service or replacement
  • Noise filtering as well as transient surge suppression
  • Fusing uses Thermal Cut-Off circuitry to isolate the SPD during severe overvoltages
  • Complies with UL 1449 and 1283 and CSA C22.2
