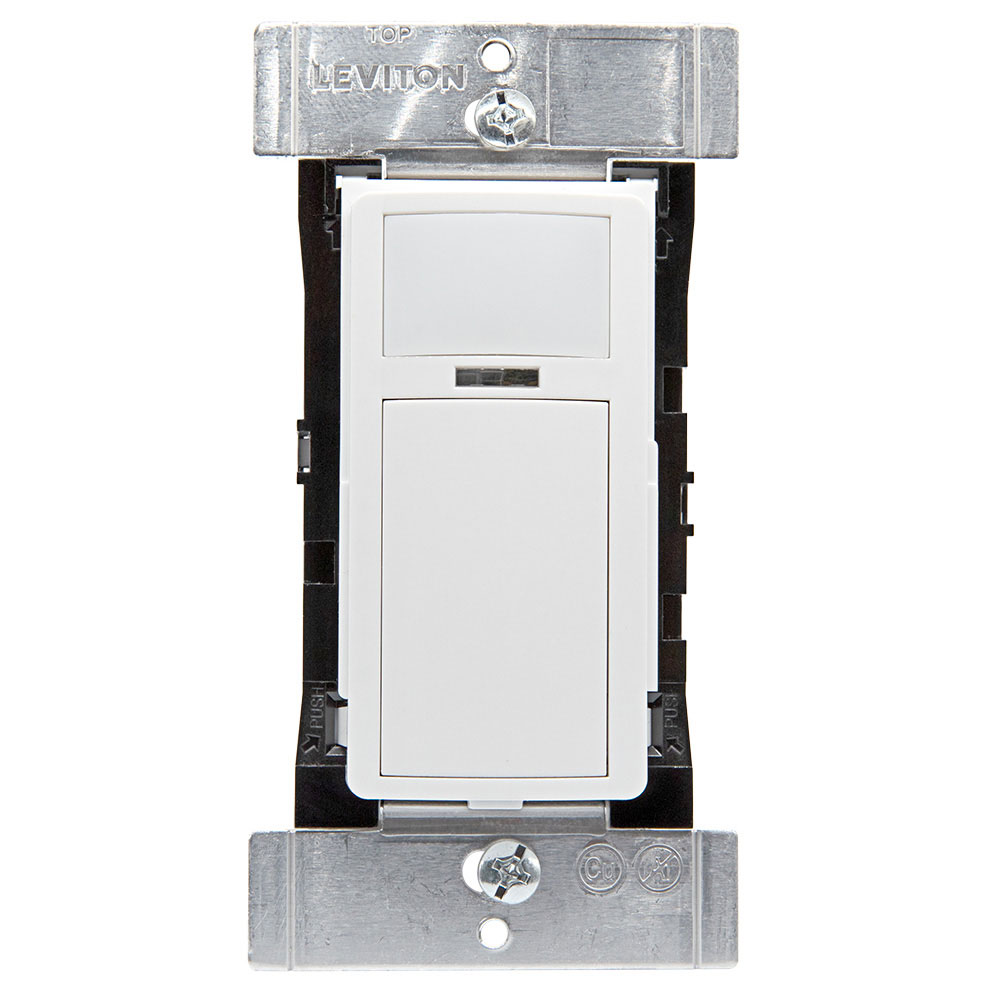

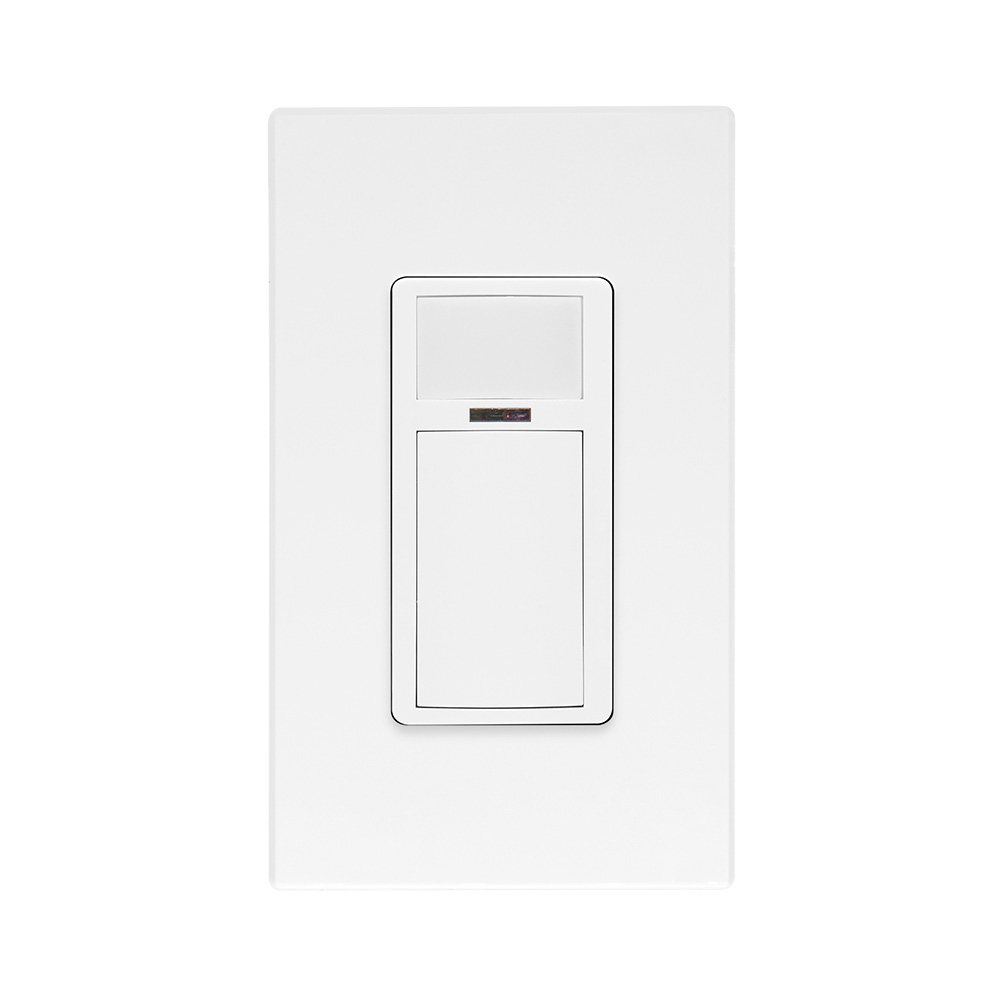

LEV ODS15-GDW SMART WB BLE PIR, 100

Manufacturer: Leviton Mfg Co | Catalog # ODS15-GDW | Cooper Electric Part # 1982362
$87.89/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
Smart Sensor, PIR, Antimicrobial, Wallbox, App configurable; Auto-ON/Auto-OFF or Manual-ON/Auto-OFF no neutral wire required. 120-277VAC, 50/60hz, Commercial Grade, White

Technical Information

Frequency
50 Hz
Grade
Commercial
Mounting Type
Surface
Operating Temperature
40 degrees degrees C
Size
53.95 mm

Manufacturer Information

Brand
Leviton
Sub Brand
OCC SENSOR WALLPLATE

General Product Info

12-Digit UPC
078477999660
Color
White
GTiN
00078477999660
Product UPC
07847799966

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Patents
  • US11594950
Features
  • Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title24, Part 6 occupancy/vacancy sensing and manual control requirements
  • Fits in a standard wallbox and gangable with other units
  • Controls General Purpose plug loads up to 20A and LED lighting loads up to 10A
  • One relay module for single-level switching
  • 180° field-of-view provides approximately 1,100 square feet of coverage
  • Latest PIR technology accurately detects minor motion up to400sq ft and major motion up to 1,100 sq ft
  • Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
  • Integrated photocell for daylighting hold-OFF
  • Add a Power Pack and Controlled Receptacles for plug load control
  • Use the Leviton Push to Pair (P2P) process to create a multi-way system for up to 5 devices
  • Advanced configuration can be performed
  • The Leviton Smart Sensor uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistant lens. A specialized lens divides the field-of-view into sensor zones. When a person passes in or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as an occupant is moving through the sensor zones. The ODS15-xxxs vacancy mode features manual-ON/ auto-OFF for installations where manual-ON switching is required for energy code applications. Configuration of the ODS15-xxx is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth®-enabled Android or iOS device. Simple configuration can also be applied using pushbutton setup for several popular pre configured options. The ODS15 integrates a photocell for daylighting hold-OFF which can be programmed using the Leviton Smart Sensor App. Ideal for non-residential and commercial spaces up to 1,100 SF including offices, meeting rooms, and lobbies. Do you have a question about an occupancy sensor or vacancy sensor?
