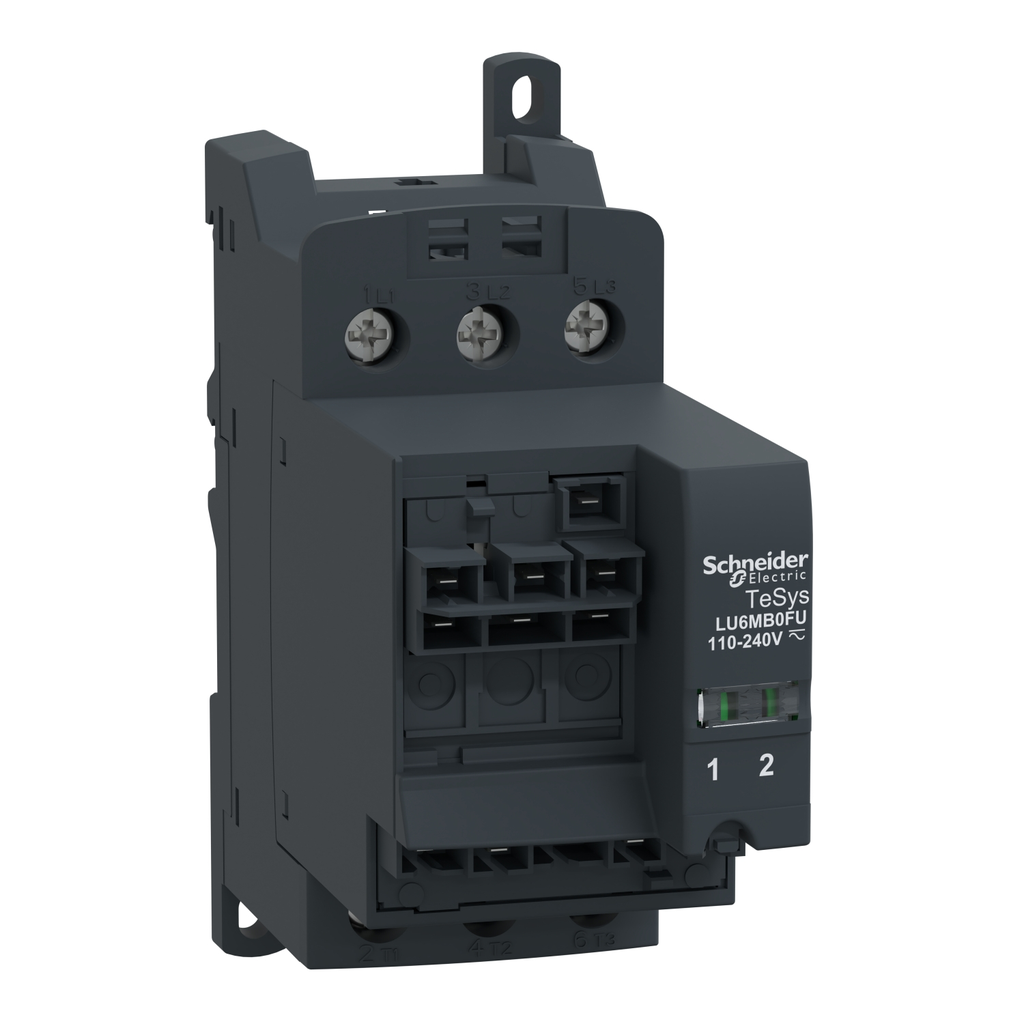

Square D LU6MB0FU Reverser Block PANEL MNT.W/O TERMS

USED IN CONJUNCTION WITH A NON-REVERSING POWER BASE WITHOUT CONNECTIONS TO CREATE A REVERSING STARTER-CONTROLLER.

1000 mA

IP20 FRONT PANEL AND WIRED TERMINALS CONFORMING TO IEC 60947-1-IP20 OTHER FACES CONFORMING TO IEC 60947-1-IP40 FRONT PANEL OUTSIDE CONNECTION ZONE CONFORMING TO IEC 60947-1

Separate Mounting

0.425 kg

-25...60 degrees C WITH LUCM--25...70 degrees C WITH LUCA, LUCB, LUCC, LUCD

110/240V

TeSys

CSA C22.2 No 60947-4-1, With Phase Barrier,EN 60947-6-2,IEC 60947-6-2,UL 60947-4-1, With Phase Barrier

-40-85 degrees C

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.34-1.5 MMA 3 MM) FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-6 MMA 4 MM) FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-6 MMA 4 MM) RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1.5-6 MMA 4 MM) FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.75-1.5 MMA 3 MM) FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.75-1.5 MMA 3 MM) RIGID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.34-1.5 MMA 3 MM) FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.75-1.5 MMA 3 MM) FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.75-1.5 MMA 3 MM) RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-10 MMA 4 MM) RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-6 MMA 4 MM) FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 2.5-10 MMA 4 MM) FLEXIBLE WITHOUT CABLE END

REVERSER BLOCK

690 Volt

Schneider Electric

LU6MB,TESYS

785901221760

03389110106664

0.425 kg

113 mm

115 mm

18 mth

45 mm

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

ASEFA,ATEX,CCC,CE,CSA,EAC,Marine,UL

France
