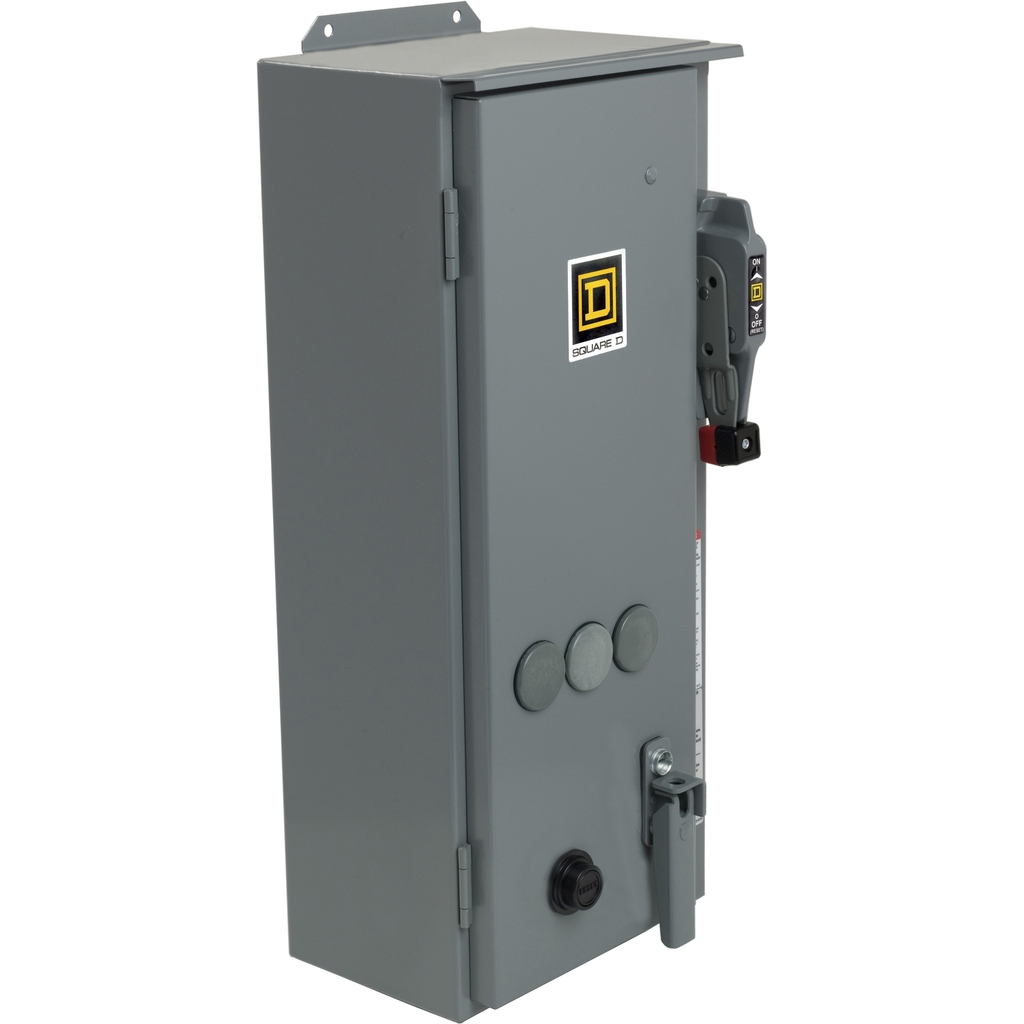

Product image for Square D 8539SBA53V02S <1000 VAC Motor Control Starter
Image thumbnail 0

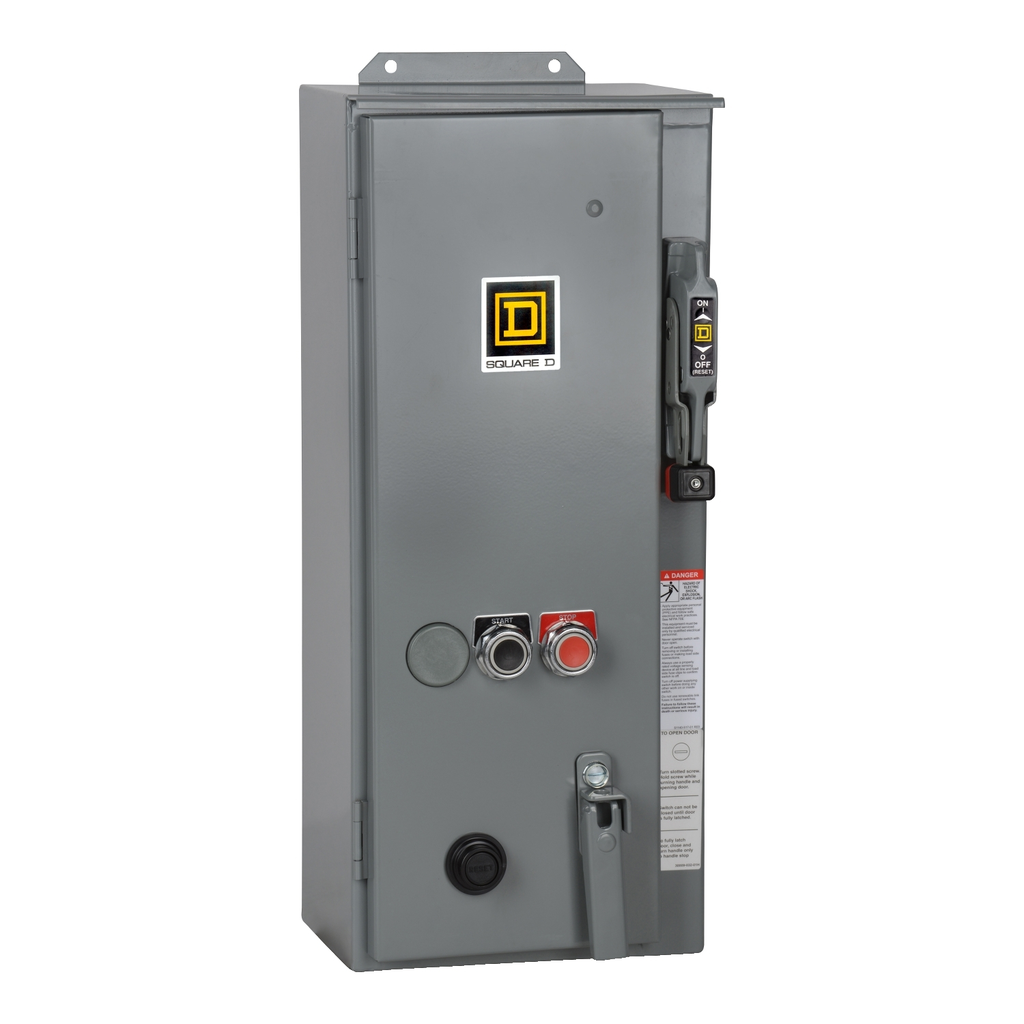

Image thumbnail 1

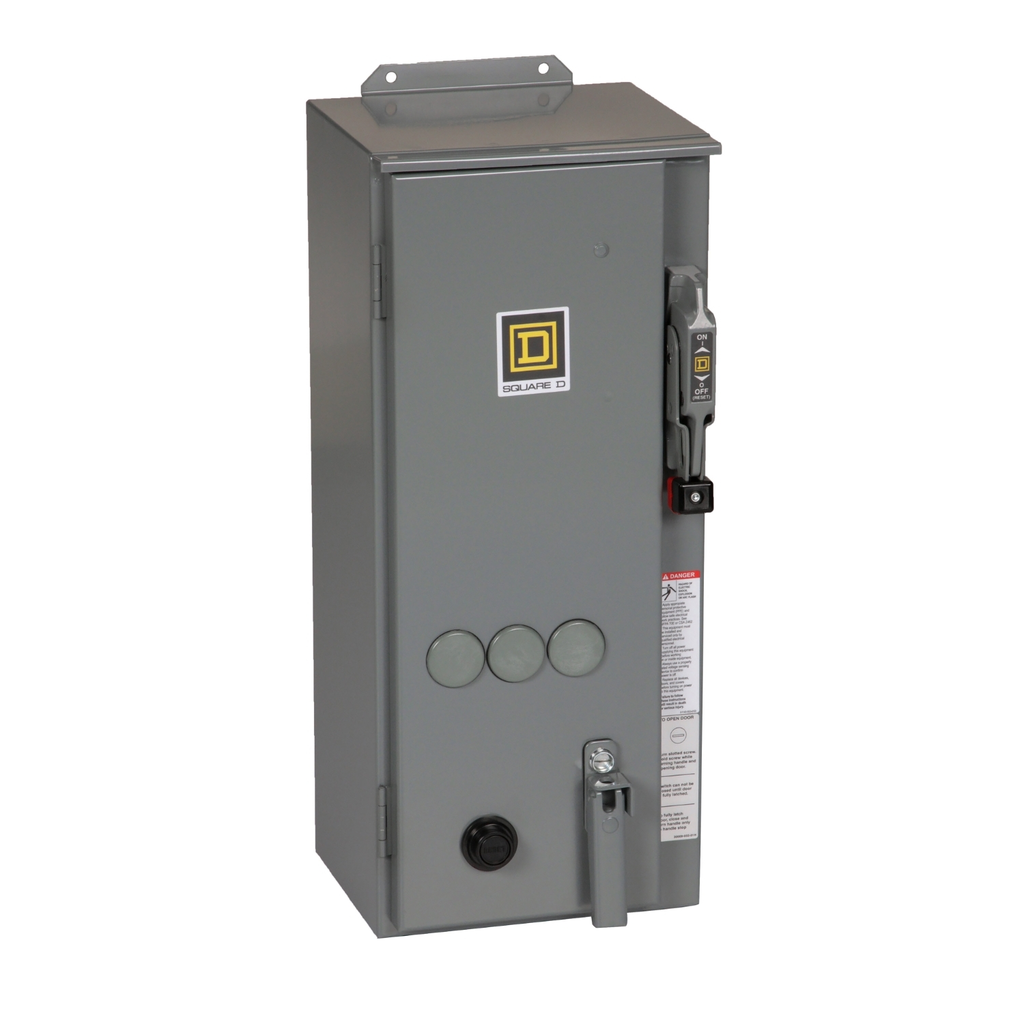

Image thumbnail 2
Image thumbnail 3
Email

Square D 8539SBA53V02S <1000 VAC Motor Control Starter

Manufacturer: Square-D / Schneider | Catalog # 8539SBA53V02S | Cooper Electric Part # 197276
$2,156.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Type S nonreversing thermal magnetic circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 0 starters have rating

Technical Information

Amperage
18 Amp
Applications
USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS - DISCONNECT (C/B) AND STARTER IN ONE PACKAGE
Contact Configuration
Without
Disconnect Type
Mag-Gard circuit breaker
Enclosure
NEMA 12
NEMA Size
0
Number of Poles
3 Pole
Power Supply
120VAC@60HZ - 110VAC@50HZ
Reset Type
THERMAL - MELTING ALLOY
Size
0
TC Connection
BOX LUG
Type
S
Voltage
600 Volt

Manufacturer Information

Brand
Square D
Sub Brand
S

General Product Info

12-Digit UPC
785901572862
Environmental Conditions
DUST TIGHT AND DRIP TIGHT (INDOOR)
GTiN
00785901572862
Product UPC
78590157286

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
UC Control Circuit Voltage
  • 110 V AC 50 Hz
  • 120 V AC 60 Hz
Nema Degree Of Protection
  • NEMA 12 painted sheet steel with external reset
Maximum Horse Power Rating
  • 0.25-5 hp 460 V AC, 3 phase
  • 0.25-5 hp 575 V AC, 3 phase
  • 0.25-3 hp 200 V AC, 3 phase
  • 0.
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
Persona Type Ids
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
Thermal Overload Type
  • melting alloy 3
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
UE Rated Operational Voltage
  • 600 V AC
