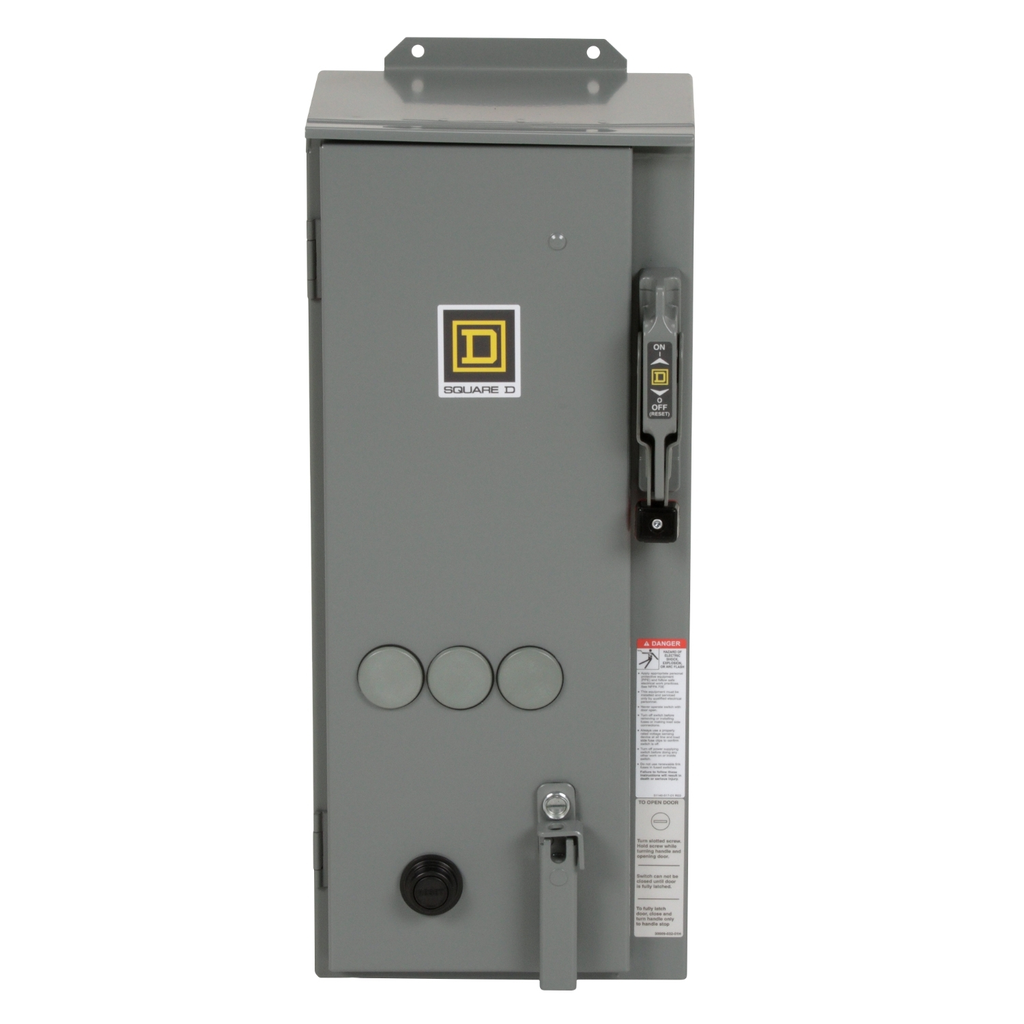

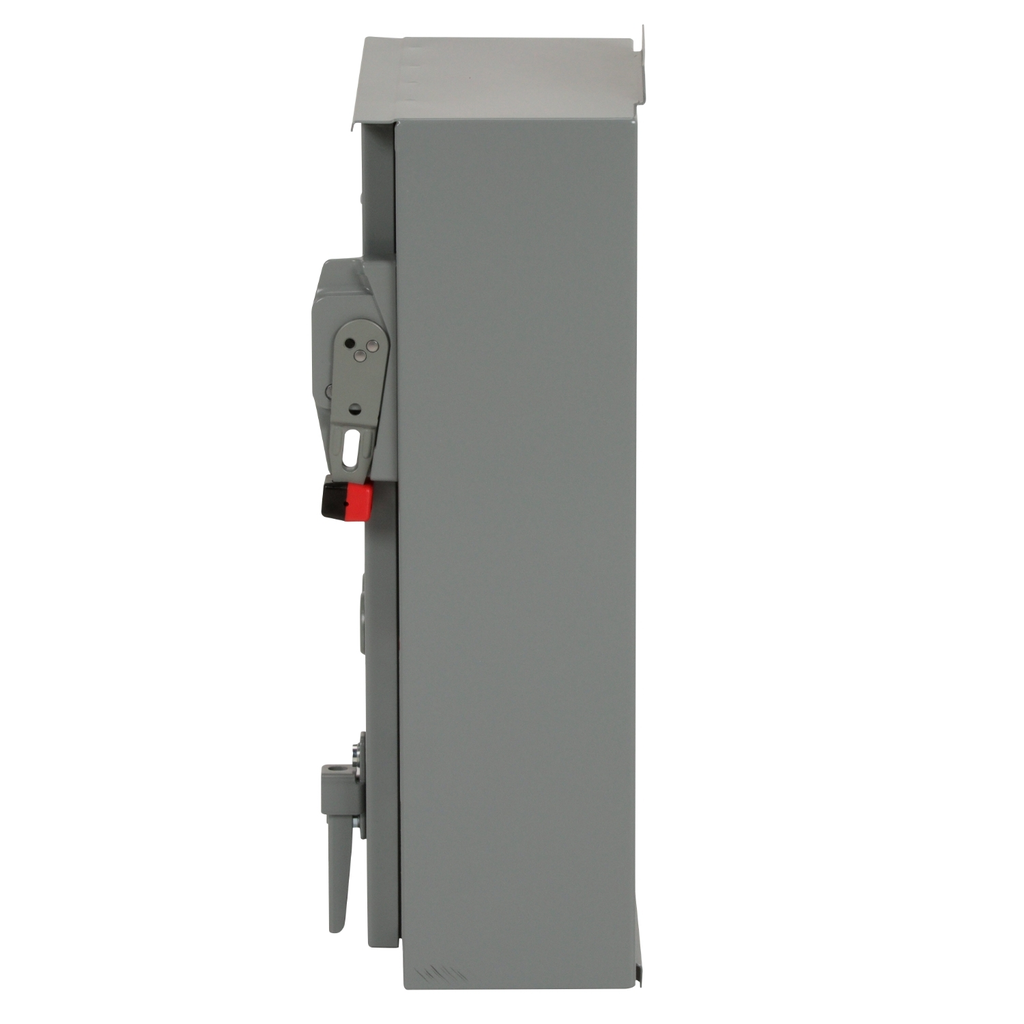

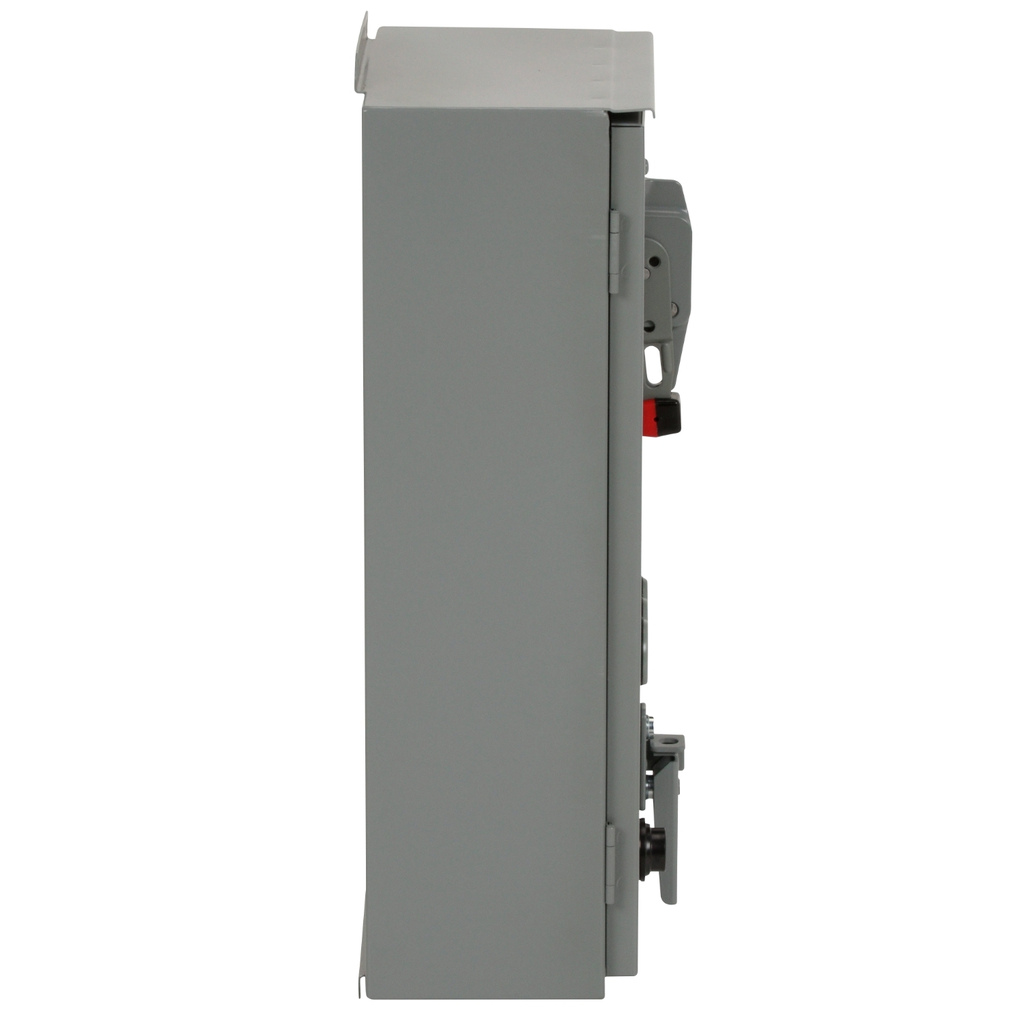

Square D 8538SBA23V02S <1000 VAC Motor Control Starter

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 0 starters have ratings of up to 5 HP at 480 and 600 VAC three phase. This fusible combination starter has 30 ampere Class H fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control.  This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure is used to protect this starter. A wide variety of accessories are available for Type S starters. Enclosure is 24.00 inches tall, 9.50 inches wide and 8.34 inches deep. Type S combination starters are UL listed and CSA certified.
