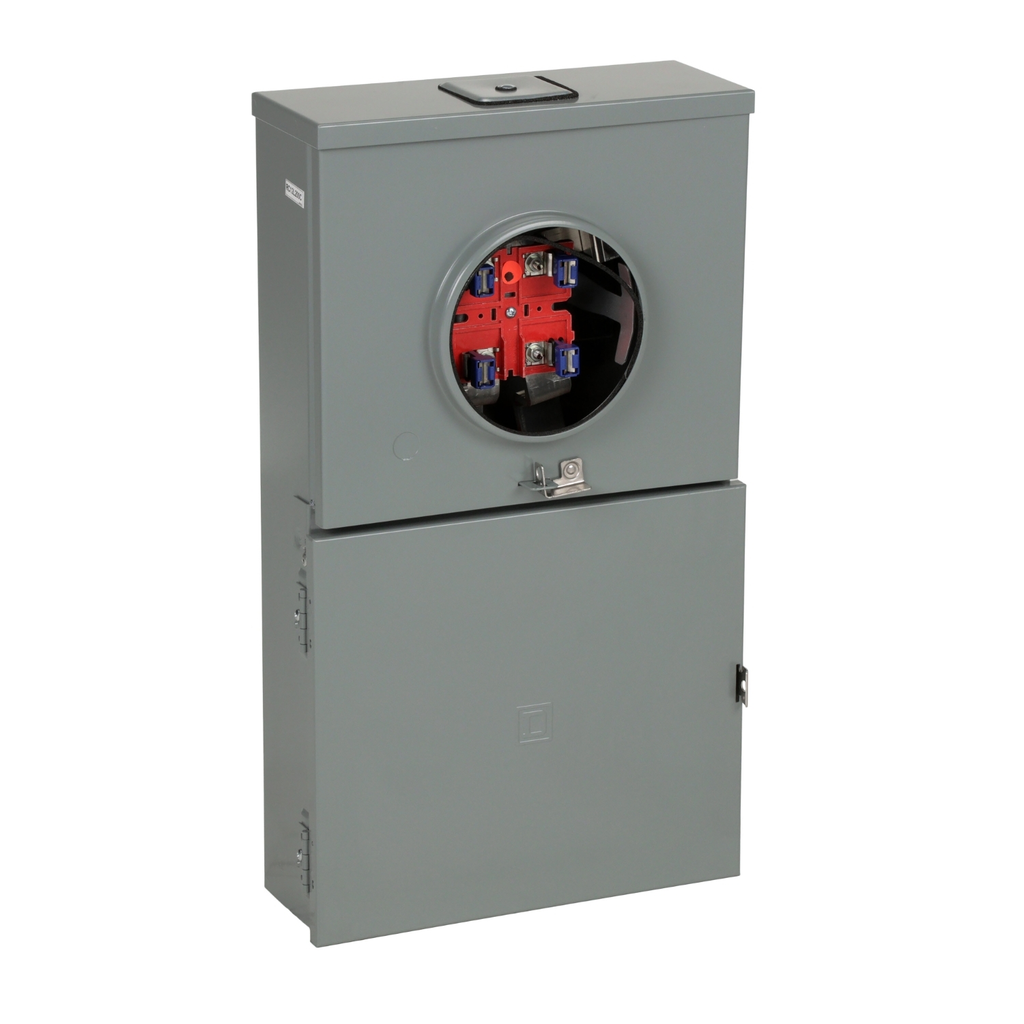

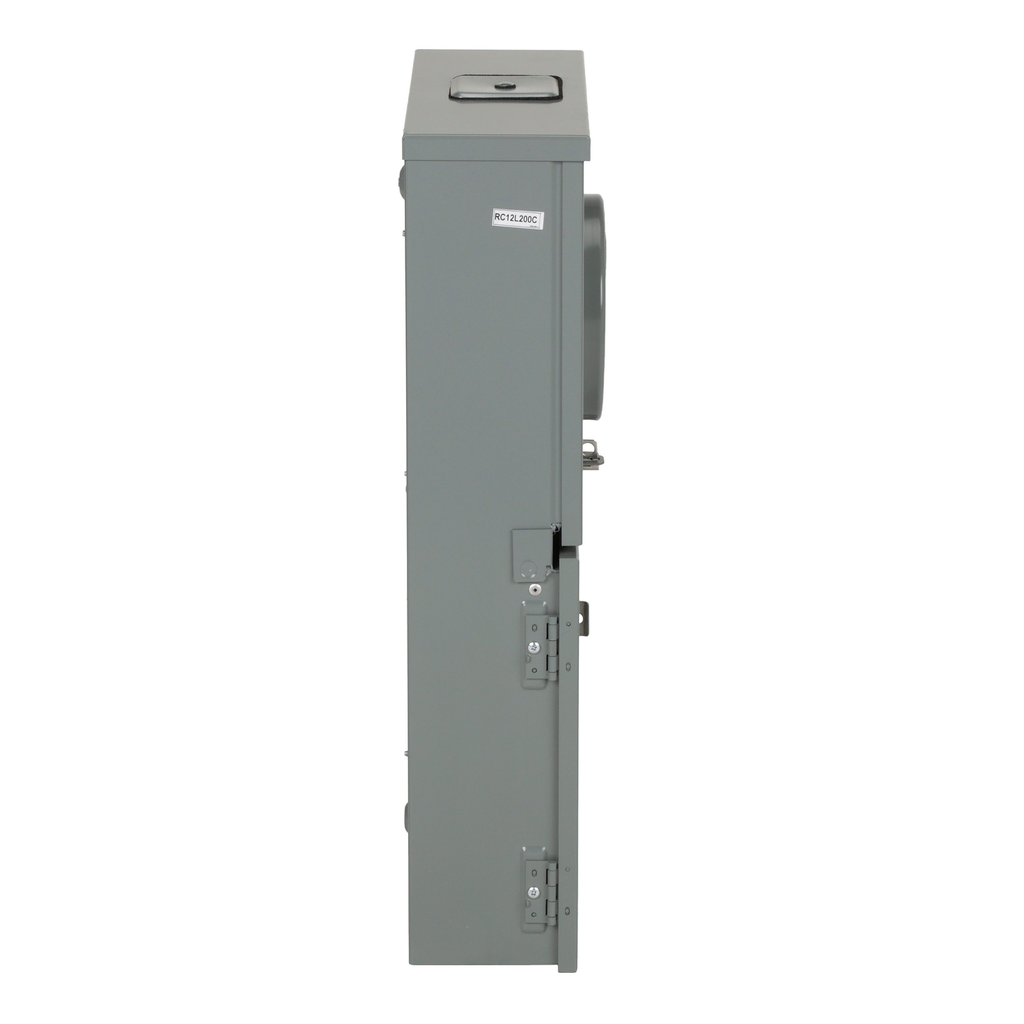

Square D RC12L200C 200 Amp 1-Phase 3-Wire Surface Mount Overhead/Underground Service Ringless Type Meter Main

Manufacturer: Square-D / Schneider | Catalog # RC12L200C | Cooper Electric Part # 197140
$663.61/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
The Square D® Load Centers and Combination Service Entrance Devices, RC12L200C. Enclosure mounting style performed as surface mount or convertible to semi-flush (use appropriate flange kit). This HOM Ringless Meter Mains meets Federal Specification W-P-115c as Type 1, Class 2, are UL Listed, suitable only for use as service equipment. In interior main lug (service disconnects field installed). Meter Socket has no By-pass. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 2 indoor rating. This surge protection device is rated at 50 kA per phase. This surge protection device has a height of 3.98 inches, a width of 1.97 inches and depth of 2.60 inches. This surge protection device is CSA certified

Technical Information

Amperage
200 Amp
Cable Entry
OH-UG
Conductor Size
6 AWG-350 kcmil
Line Rated Current
200 A
Mounting Type
Surface
Number of Circuits
0
Number of Phases
1 Phase
Number of Spaces
12
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
Size
26.16 in
Type
Ringless;Meter Mains
Wire Size
AWG 6...350 kcmil aluminium/copper)line side;AWG 12...AWG 2/0 aluminium/copper)service ground

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901863984
GTiN
00785901863984
Product UPC
78590186398

Dimensions

Depth
6.1 Inch
Height
26.16 Inch
Warranty Length
18 mth
Width
14.89 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL E-6294
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 5J
  • ACP
  • HOM2175SB
  • HOM250
  • HEPD25
  • HOM230
  • HOMFP
  • HEPD50
  • HOM220
  • A125
  • HEPD80
  • HOM270
  • A150
  • HOM2100
  • A200
  • A250
  • PK15GTA
