Product image for Ilsco E-70 Copper Mechanical Lug Offset, Conductor Range 2-8, 1 Port, 2 Holes, 1/4in Bolt Size, 1in Hole Spacing, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

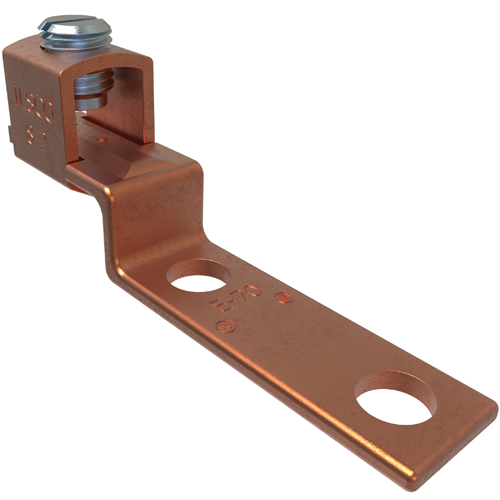

Ilsco E-70 Copper Mechanical Lug Offset, Conductor Range 2-8, 1 Port, 2 Holes, 1/4in Bolt Size, 1in Hole Spacing, UL, CSA

Manufacturer: Ilsco | Catalog # E-70 | Cooper Electric Part # 196990
$11.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 2 mounting hole(s), mounting bolt/stud size 1/4 in, mounting hole spacing 1 in., UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 2 Str - 8 Str, 1, 2, 3 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
For use in Circuits Rated at 35 kV or Less
Bolt Size
1/4 in
Conductor Material
Copper
Conductor Size
8-2 AWG
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.266 in
Number of Conductors
2
Number of Holes
2 Hole
Standard
CSA,E2186,UL
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
Slotted Hex
Voltage
35 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669240252
Color
Copper
Finish
Electrolytic
GTiN
00783669240252
Product UPC
78366924025
Weight
0.058 lb

Dimensions

Height
0.854 Inch
Length
2.438 Inch
Width
0.5 in
