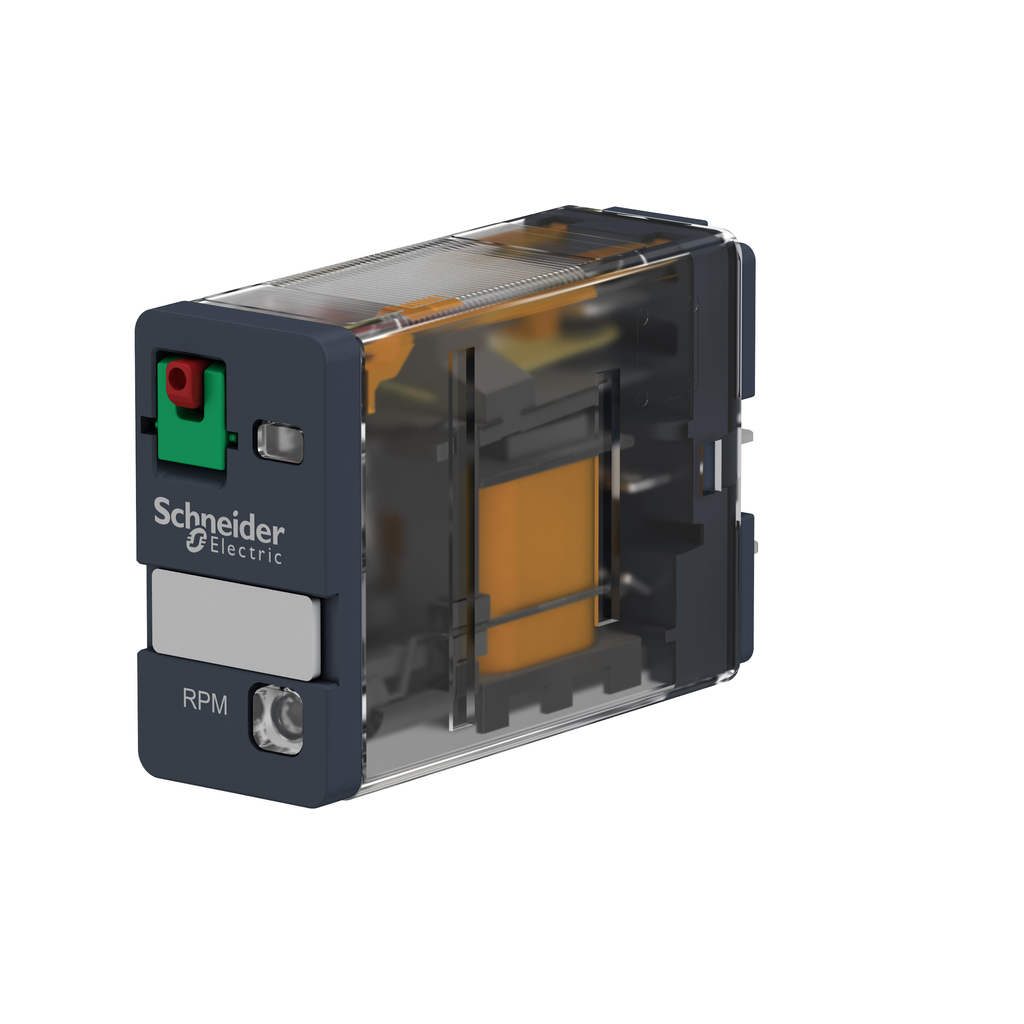

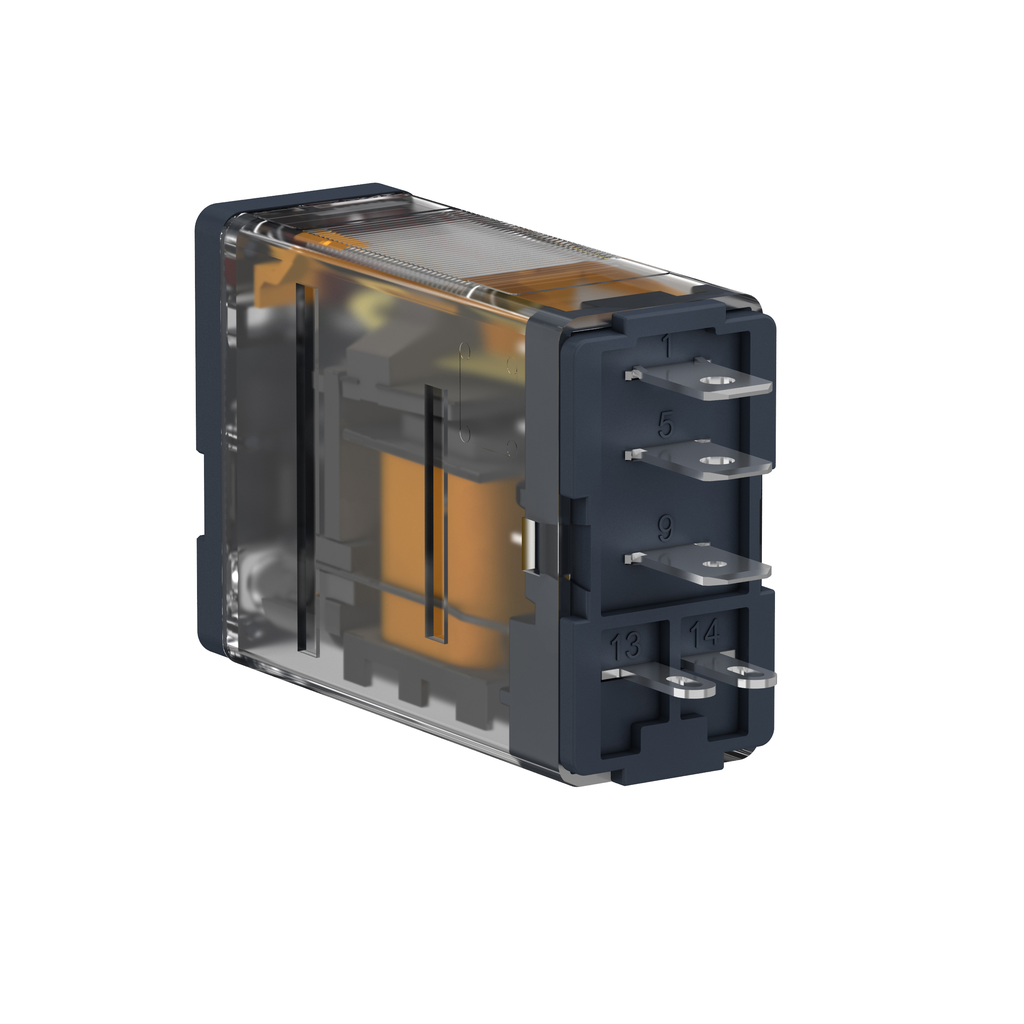

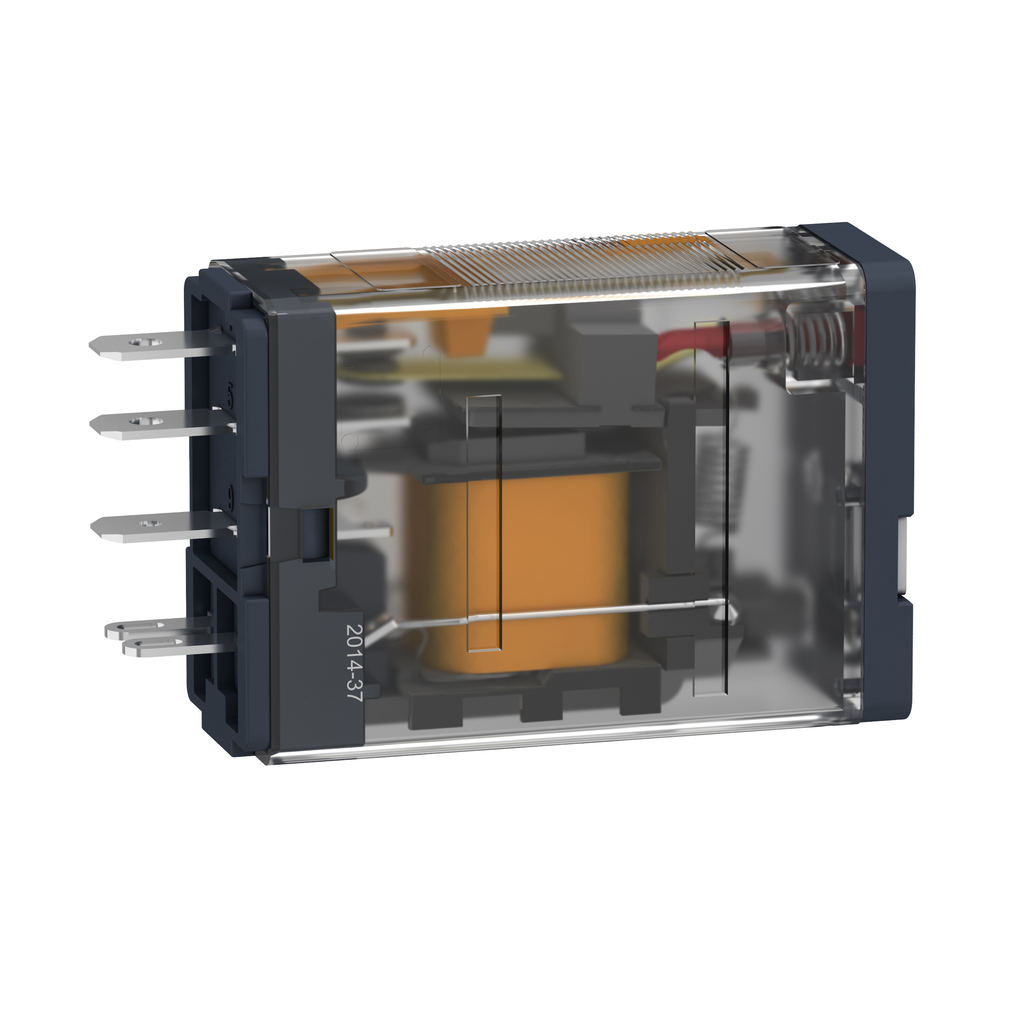

SQUARED RPM12E7 Power plug in relay

Manufacturer: Square-D / Schneider | Catalog # RPM12E7 | Cooper Electric Part # 1968619
$9.70/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony RPM power plug-in relay has a coil control voltage of 48V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
15 Amp 250 V AC-15 Amp 28 V DC,15 Amp 277 V AC) UL-15 Amp 28 V DC) UL-15 Amp 250 V AC) NO IEC-15 Amp 28 V DC) NO IEC-7.5 Amp 250 V AC) NC IEC-7.5 Amp 28 V DC) NC IEC
Contact Configuration
1 C/O
Contact Material
Silver Alloy
Control Type
Lockable test button NULL
Enclosure
IP40
Net Weight
0.026 kg
Operating Cycles
1200,18000
Operating Temperature
-40-55 degrees C
Resistance
708 OHM +/- 15 AT 20 C
Standard
CSA C22.2 No 14,EN/IEC 61810-1,UL 508
Storage Temperature
-40-85 degrees C
Type
Plug-in relay;Flat

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZELIO

General Product Info

12-Digit UPC
389119401749
GTiN
03389119401746
Product UPC
38911940174

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,EAC,UL
