Leviton 8460 250 Volt 60 Amp 3-Pole 4-Wire NEMA 15-60R 10 Hp Black Nylon Flush Mount Straight Blade Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 8460 | Cooper Electric Part # 19669
$215.12/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
60 Amp, 250 Volt, NEMA 15-60R, 3P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, 3-Phase, Side Wired, Steel Strap, - Black

Technical Information

Amperage
60 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
14-6 AWG
Connection Type
Side Wired
Device Type
Straight Blade Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Grade
Commercial
Grounding
Grounding
Horsepower
10 hp
Material
Thermoplastic
Mounting Type
Box, Flush, Screw
NEMA

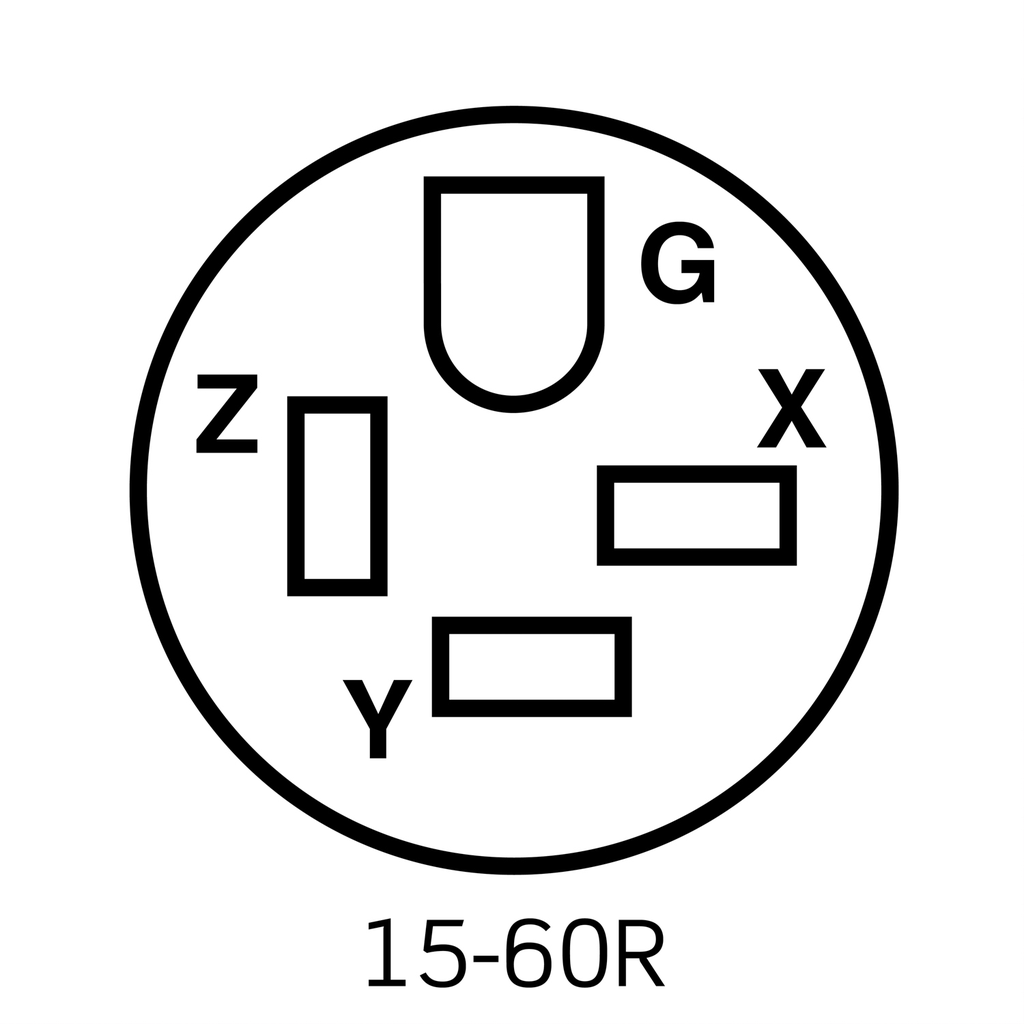

15-60R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
3.75 H x 2.75 W x 2.10 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Torque
25 lb-in
Type
Power Receptacle
Voltage
250 Volt
Wire Count
4
Wire Size
14-6 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477843345
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477843345
Product UPC
07847784334

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 15-60R
Features
  • Levitons line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
