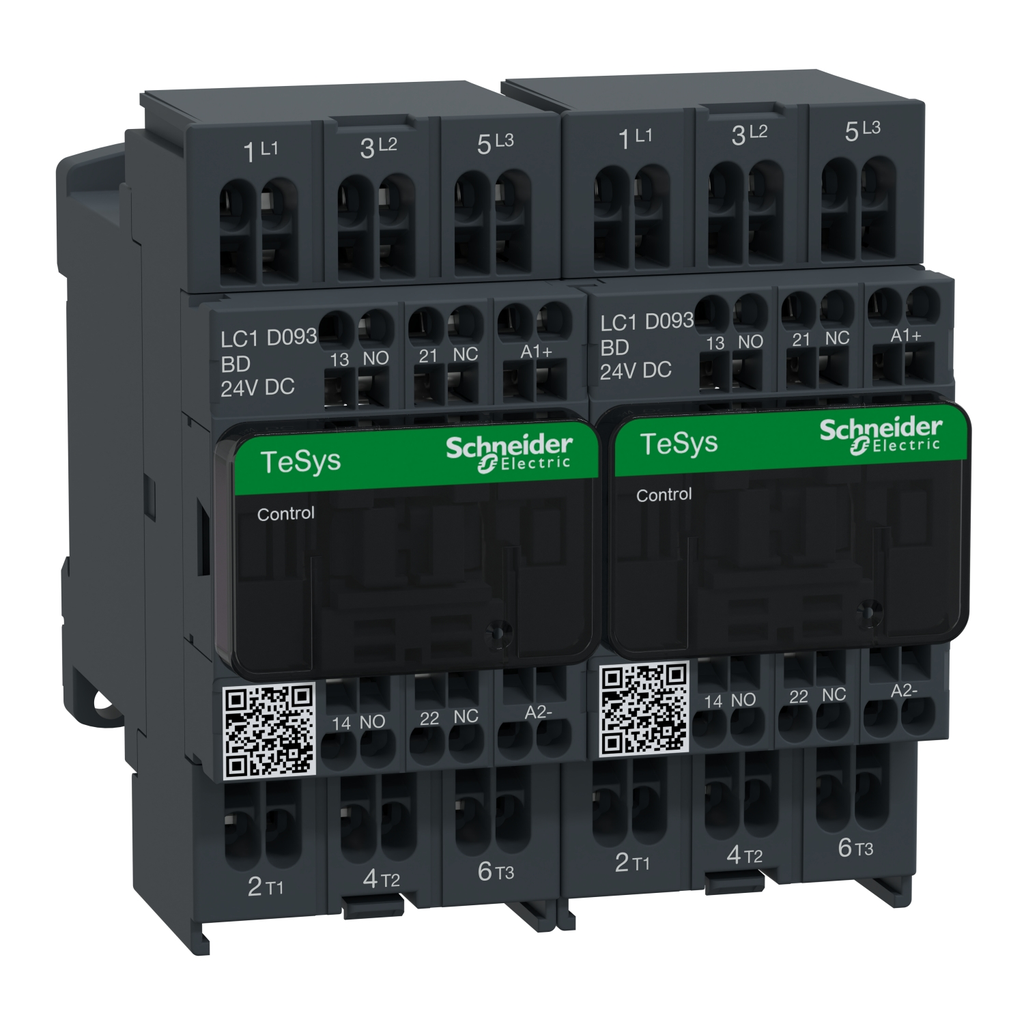

Square D LC2D093BD TeSys Deca Reversing Contactor - 3P(3 NO) - AC-3 - Less or Equal 440 V 9 A - 24 V DC Coil

Manufacturer: Square-D / Schneider | Catalog # LC2D093BD | Cooper Electric Part # 1966030
$300.46/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides 440V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60.C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Information

Applications
RESISTIVE LOAD-MOTOR CONTROL
Coil Voltage
24 V DC,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Contact Configuration
1 NO + 1 NC,3 NO
Contact Rating
16 A 60 AC POWER CIRCUIT-10 A 60 AC SIGNALLING CIRCUIT
Impedance
2.5 MOhm - Ith 16 A 50 Hz For Power Circuit
Net Weight
1.017 kg
Operating Cycles
25...400 HZ,3600 CYC/H 60 A?C
Operating Temperature
-20-60 Adegrees C,-40-70 Adegrees C AT UC
Range
TeSys
Size
90 MM,95 MM,99 MM
Standard
CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60335-1,IEC 60947-4-1,IEC 60947-5-1,UL 508
Storage Temperature
-60-80 degrees C
TC Connection
POWER CIRCUIT SPRING TERMINALS 1 2.5-2.5 MMAFLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SPRING TERMINALS 2 2.5-2.5 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SPRING TERMINALS 1 2.5-2.5 MMAFLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SPRING TERMINALS 2 2.5-2.5 MMAFLEXIBLE WITHOUT CABLE END
Type
Reversing contactor
Wattage
0.2 Watt AC-3 - 1.56 Watt AC-1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS D

General Product Info

12-Digit UPC
785901990901
GTiN
03389110704976
Weight
1.017 kg

Dimensions

Depth
95 mm
Height
99 mm
Warranty Length
18 mth
Width
90 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CCC,CSA,DNV,GL,GOST,LROS (Lloyds Register Of Shipping),RINA,UKCA,UL
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
