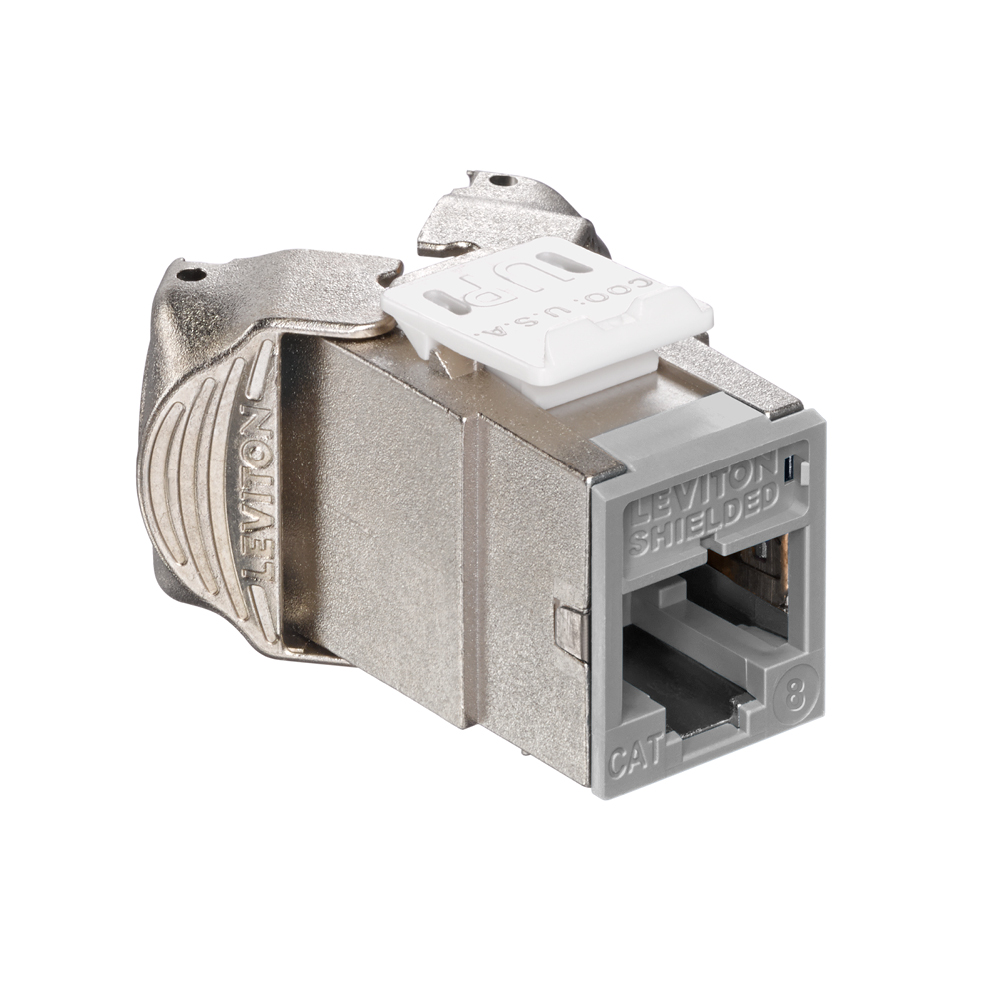

Product image for LEV 81SJK-RG8 ATLAS-X1 CAT 8 SHIELD
Email

LEV 81SJK-RG8 ATLAS-X1 CAT 8 SHIELD

Manufacturer: Leviton Mfg Co | Catalog # 81SJK-RG8 | Cooper Electric Part # 1959907
$44.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
The ATLAS-X1 Cat 8 Shielded QUICKPORT Jack supports 25G/40GBASE-T networks. The shielded jack provides superior alien crosstalk (AXT) suppression and protects critical data from potential EMI/RFI (electromagnetic interference/radio frequency interference). The jack is part of a complete ATLAS-X1 Cat 8 shielded system designed to support next generation BASE-T data center networks

Technical Information

Applications
Network
Category Type
Cat 8
Type
Cat 8

Manufacturer Information

Brand
Leviton
Sub Brand
Cat8 SH Atlas-X1 Connectors

General Product Info

12-Digit UPC
078477787854
Color
Gray
GTiN
00078477787854
Product UPC
07847778785

Certifications and Compliance

Country of Origin
USA
Patents
  • CA2699970
  • EP2191541
  • MX289317
  • US7824231
  • USD752590
  • USD818469
  • USD848430
  • USD901509
Features
  • Patented Retention Force Technology (RFT) protects against tine damage and increases system longevity
  • For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
  • Shielding provides EMI/RFI protection, signal isolation, and excellent alien crosstalk (AXT) suppression
  • Unique design supports tool-free termination/re-termination and requires no specialized termination tool
  • Short jack design supports a wide range of installation practices and improves bend radius of Cat 8 shielded cabling
  • Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
  • Jack supplied with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face) for easy identification and tracking of data, voice, or other functions
  • Bulk icons available separately in 13 colors
  • Solid metal body dissipates 53% more heat than plastic, minimizing damage from excess heat in PoE applications
  • Tine geometry prevents arcing damage where plug and jack make contact
  • Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
  • ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
