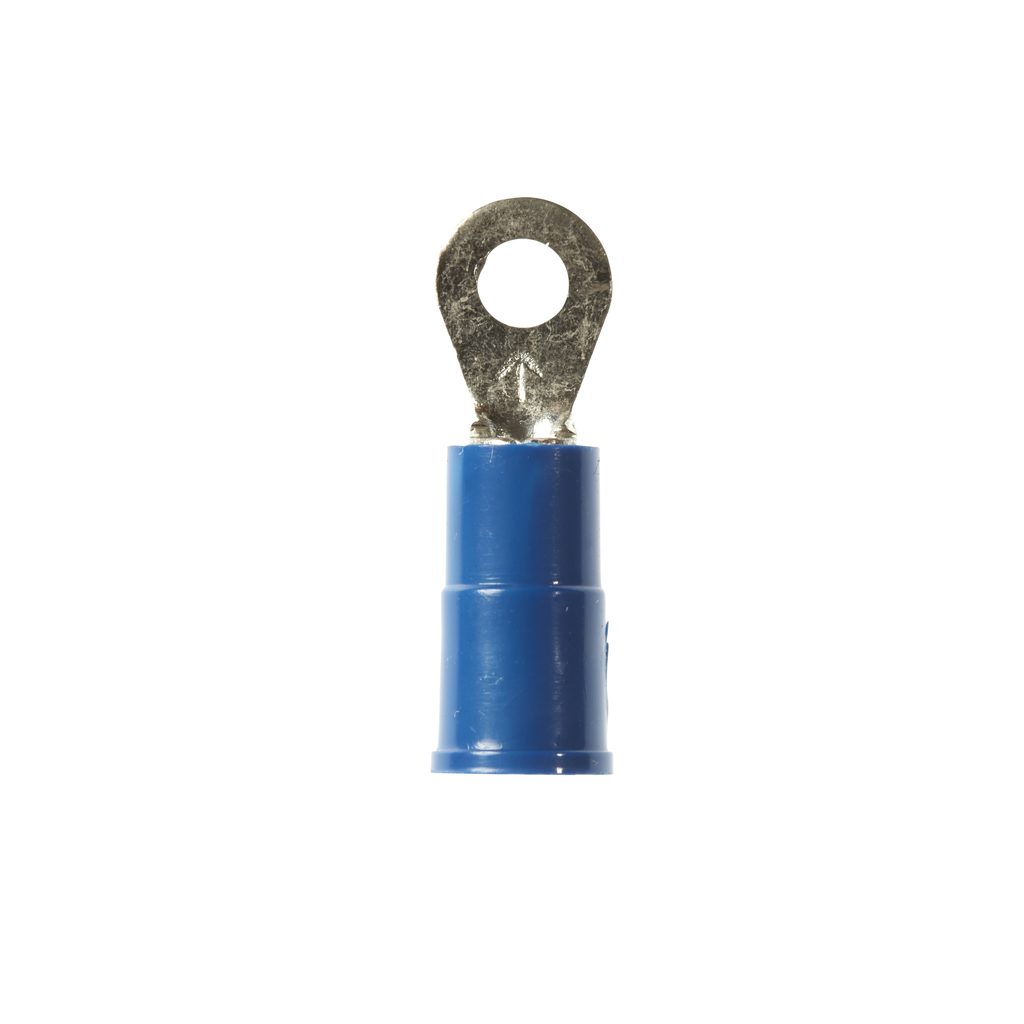

Product image for 3M 7100163996 3M™ Scotchlok™ Vinyl
Email

3M 7100163996 3M™ Scotchlok™ Vinyl

Manufacturer: 3M | Catalog # 7100163996 | Cooper Electric Part # 1952303
$0.66/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Brazed
Material
PVC
Standard
UL And CSA
Terminal Size
16 - 14 AWG
Type
Short Sleeve, Standard

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
054007014126
GTiN
00054007014126
Product UPC
05400701412

Dimensions

Overall Length
0.8 in
Width
0.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
