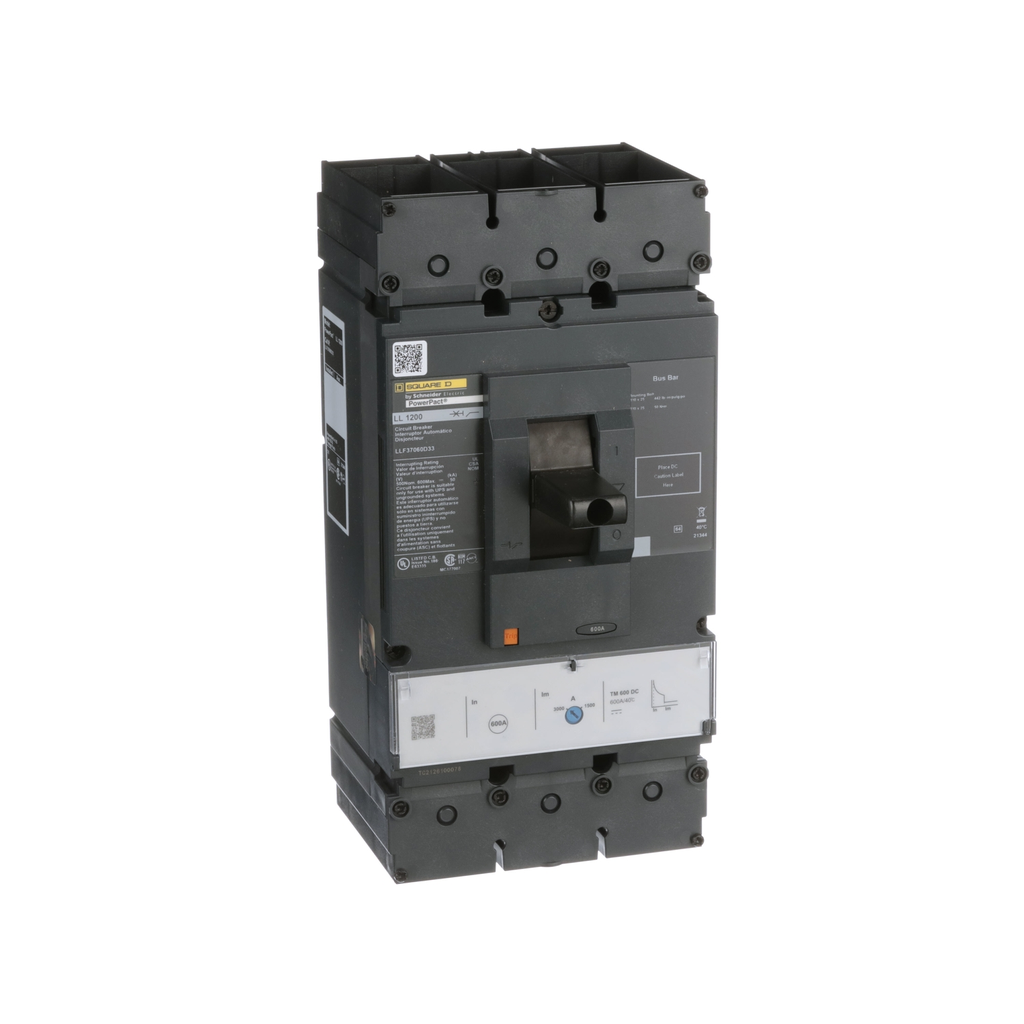

Schneider LLF37060D33 Circuit break

Manufacturer: Square-D / Schneider | Catalog # LLF37060D33 | Cooper Electric Part # 1951904
$10,875.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Brochure Product Catalog Page
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 50kA at 500VDC. This circuit breaker has a fixed long time electronic trip unit. This unit has a busbar connection. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Technical Information

Mounting Type
Unit Mount Busbar)
Net Weight
6.2 kg
Standard
CSA,IEC 60947-2,NEMA,NOM-003-SCFI-2000,UL
Storage Temperature
-50-85 degrees C
Strip Length
31 mm
Trip Point
1500-3000 A

Manufacturer Information

Brand
Square D

General Product Info

Color
Black
GTiN
03606486284049
Weight
6.2 kg

Dimensions

Depth
110 mm
Height
13.39 in
Length
31 mm
Width
5.51 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,NOM,UL
Country of Origin
USA
Features
  • Available in 3 or 4 pole design
  • Protection from overloads and short circuits
  • Common accessories across the range
  • Used as main panel disconnect for control panel
  • UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked
  • The PowerPact L-frame circuit breaker is compliant with standards IEC 60947-2 and UL 508/CSA 22.3 N°14, with UL 489.
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accessory Products
  • S29386
  • VTRIPL
  • VTRIPL05
  • VTRIPL10
