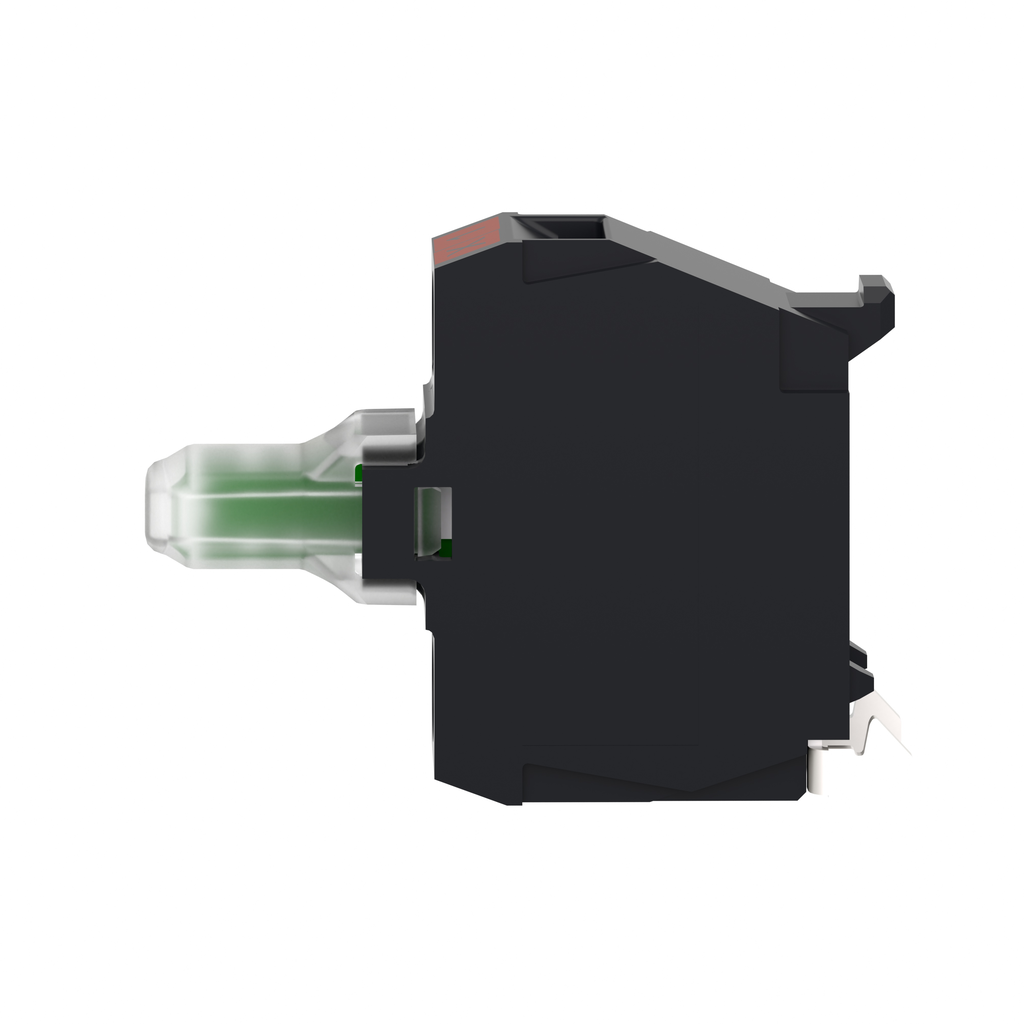

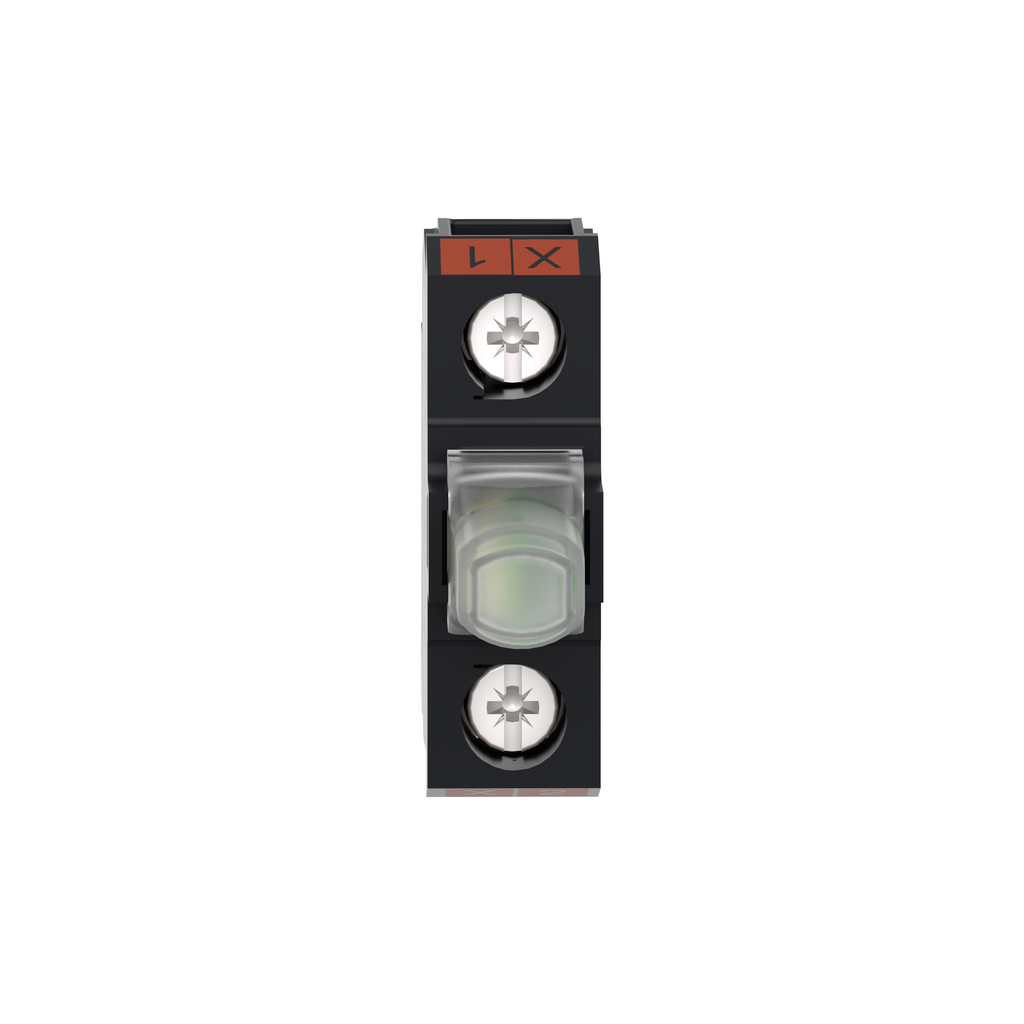

Square D ZALVM3 22 mm 230 VAC Green Protected LED Light Block

Manufacturer: Square-D / Schneider | Catalog # ZALVM3 | Cooper Electric Part # 1949125
$52.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
This green light block with integral LED allows fast and easy replacement and configuration of your signaling units. It is supplied with 230V to 240V AC and it connects with simple screw-clamp connections. It is easily installed on compatible illuminated push button or selector switch units via clip together assembly. It is compatible with Harmony XB5 diameter 22mm control and signaling units. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Technical Information

Applications
For XB5 22 mm control and signalling units
Current
14 mA
Indicator
GREEN,INTEGRAL LED,INTEGRATED AND PROTECTED LED
Net Weight
0.015 kg
Operating Temperature
-40-70 Adegrees C
Standard
EN/IEC 60947-5-5
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA WITHOUT CABLE END EN/IEC 60947-1
Type
Light block
Voltage
230...240 Volt AC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZALV

General Product Info

12-Digit UPC
785901396246
Color
Green
GTiN
03389110115253
Weight
0.03 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA
Country of Origin
France
