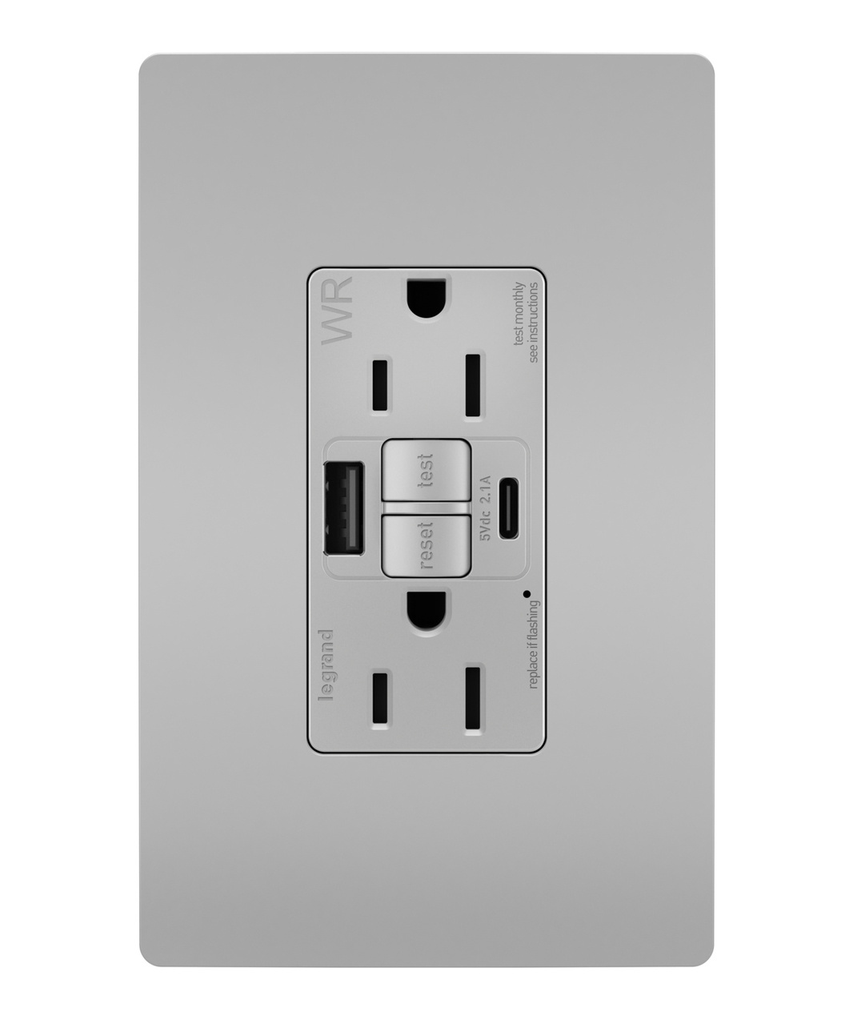

Product image for P&S 1597TRWRUSBACGRY SLFTEST GFCI R
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

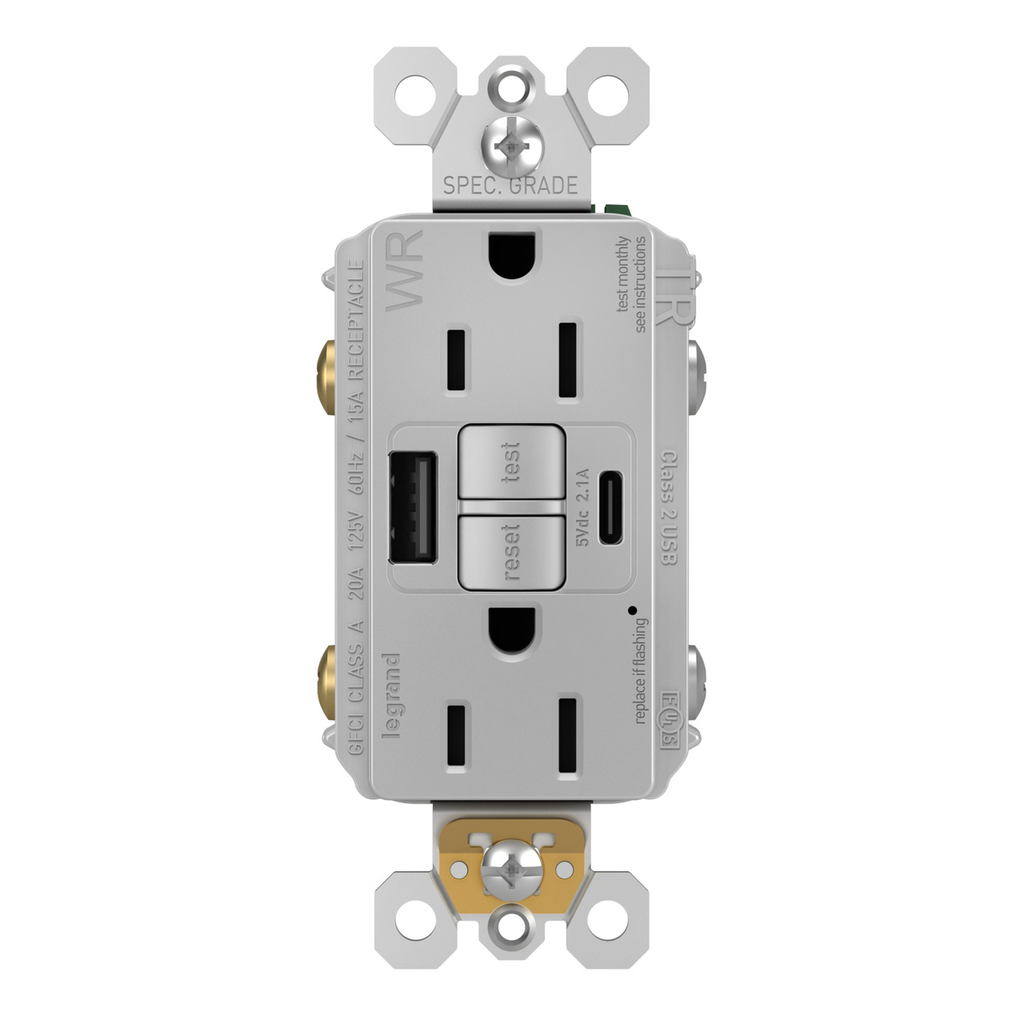

P&S 1597TRWRUSBACGRY SLFTEST GFCI R

Manufacturer: Pass & Seymour / Legrand | Catalog # 1597TRWRUSBACGRY | Cooper Electric Part # 1942964

$90.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Enjoy superior safety and the convenience of built-in USB charging, in a first-of-its-kind outlet! Perfect for adding modern connectivity anywhere, including areas of the home where ground fault protection is required. Also including tamper and weather resistance, this model was designed for use on decks, patios, pool areas, and other outdoor spaces. Easily see and reset electrical trips right where they happen, while gaining two USB connections for keeping phones or tablets charged, no bulky adapter necessary.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
15 Amp
Applications
Commercial,Residential
Indoor Outdoor
Outdoor
Material
Polycarbonate
Mounting Type
Box
NEMA
5-15R
Number of Gangs
1 Gang
Outlet Type
GFCI,Outdoor,Residential,Self-Test,Tamper-Resistant,USB-Charging
Type
Duplex,GFCI,Tamper-Resistant,USB,Weather-Resistant
Voltage
125 Volt
Wattage
1875 Watt
Weather Resistant
Yes

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007377835
Color
Gray
Finish
Matte
GTiN
00785007377835
Product UPC
78500737783

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Country of Origin
China
Features
  • First outlet of its kind to add USB connection to a GFCI outlet for easier charging, anywhere
  • Provides reliable ground fault protection for use in outdoor spaces, including patios, decks and pool areas. Includes a trip indicator light and reset button on the outlet for easy, accessible troubleshooting

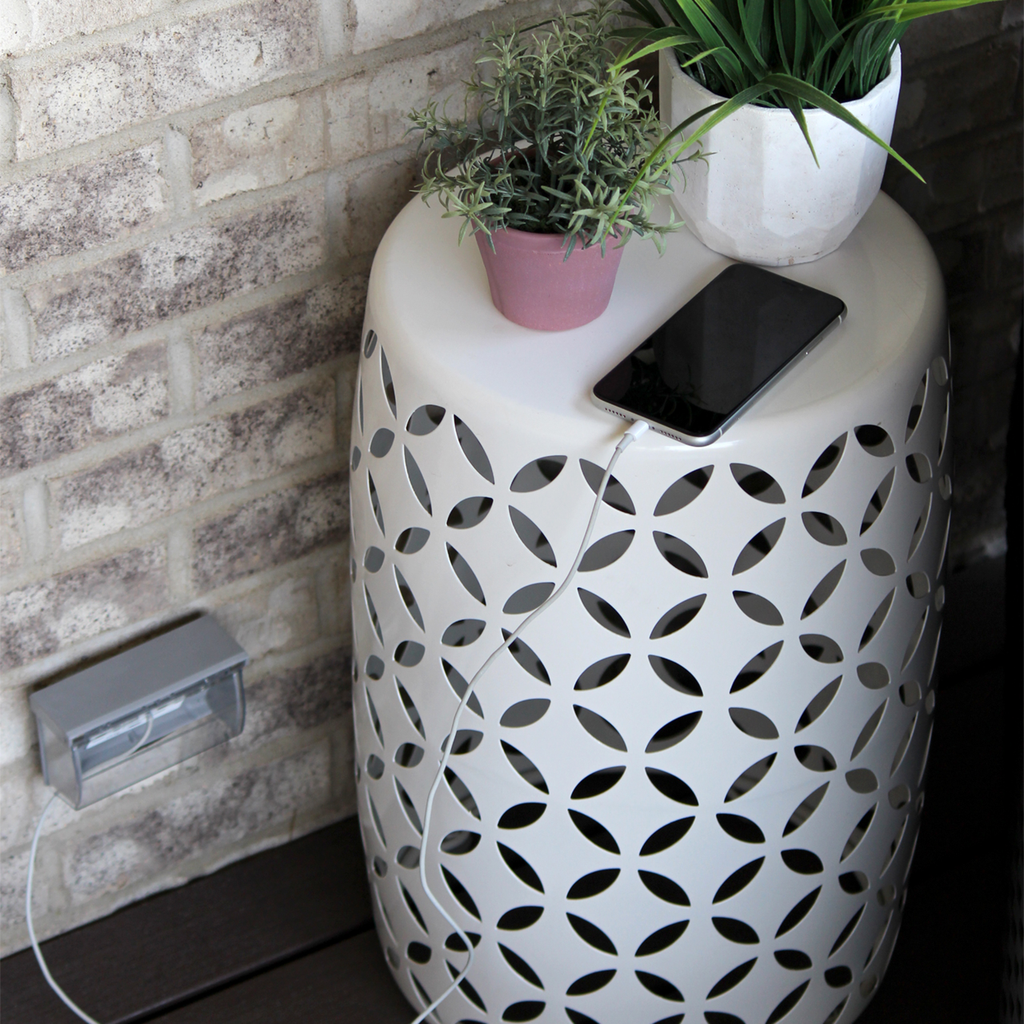

  • Includes traditional power outlets, as well as one USB Type-A and one USB Type-C port for convenient charging. Shares 2.0A charging capacity between both ports
  • Self-tests every three seconds, ensuring continuous ground fault protection for greater safety. Additionally, in case of test failure, the indicator light (red LED) will flash to signal there is an issue and the outlet should be replaced
  • Equipped with proven SafeLock™ feature which disconnects power to the outlet if any critical components are damaged for added protection
  • Designed with weather-resistance for use in outdoor locations such as decks, patios and pool areas. *Must be installed in weatherproof enclosure per NEC requirements
  • Protect children using a patented invisi-shutter system to prevent the insertion of foreign objects while maintaining a discreet, invisible effect. Meets NEC® Tamper-Resistant requirements
  • Installs quickly thanks to a redesigned side wire cavity for easier access. Can provide ground fault protection to downstream outlets through feed-thru wiring
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Certifications
  • RoHS Compliant
  • cULus Listed
  • Federal Spec Listed
  • CSA Listed
  • UL Listed
