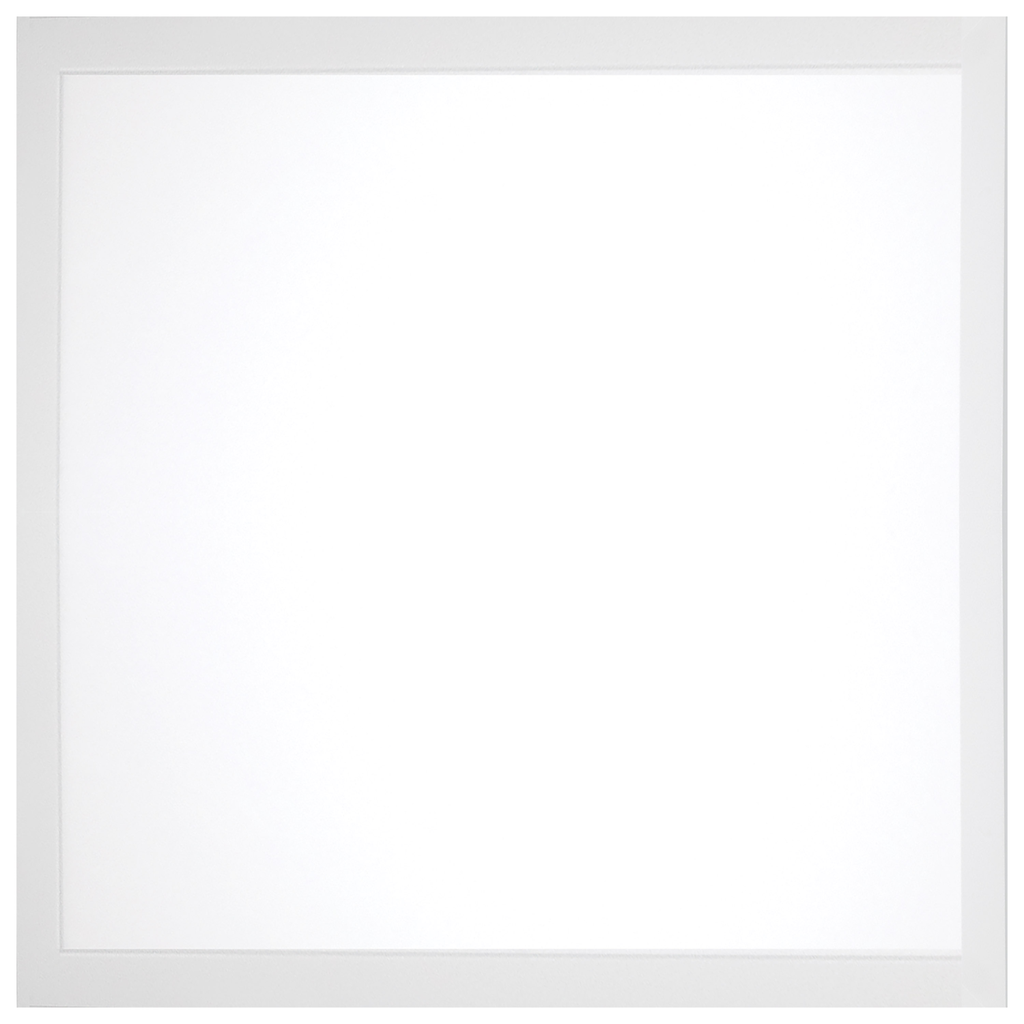

Product image for SATCO 65/571R1 2X2 LED BACKLIT FLAT
Image thumbnail 0
Image thumbnail 1

Email

SATCO 65/571R1 2X2 LED BACKLIT FLAT

Manufacturer: Satco | Nuvo | Catalog # 65/571R1 | Cooper Electric Part # 1942158

$78.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
SATCO|NUVO's LED Backlit 2x2 Flat Panel 65-571R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at the time of installation, making this fixture extremely functional. Using an advanced manufacturing process, even light distribution is achieved using high quality optic materials. The use of a flicker free driver reduces strobing, generating comfortable light that is suitable for long-term task usage. Ideal for offices, retail, education and hospitality locations, these panels offer versatility and efficiency with a long, maintenance free life.

Technical Information

Amperage
0.200-0.072/0.300-0.108/0.400-0.144A Amp
Applications
Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
Average Rated Life
50000 hr
Beam Spread
120
Color Temperature
Cool White,Warm White
Correlated Color Temp
3500 K
Dimmable?
Yes
Incandescent Equivalent
100 W
Indoor Outdoor
Indoor
IP Rating
IP20
Lamp Type
LED
Lens Color
Frost
Lens Material
Poly Methyl Methacrylate
Lumens
2,200 Lumen
Material
Aluminum Sheet
Number of Lamps
1
Operating Temperature
-17 degrees C
Power Factor
0.9
Style
Utility
Technology Type
LED
Type
Shielded, Flat
Voltage
120 Volt
Wattage
20 Watt
Wet Location
Damp
Wire Length
3.54 in

Packaging

Pkg Qty
1

Manufacturer Information

Brand
NUVO Lighting
Sub Brand
Nuvo

General Product Info

12-Digit UPC
045923657078
Color
White
Finish
White
Fixture Type
Square
GTiN
00045923657078
Product UPC
04592365707
Weight
4.85 lb
Wire Color
Black,Green,White

Dimensions

Height
1-1/2 Inch
Length
23-3/4 Inch
Warranty Length
5 yr
Width
23.75 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
Vietnam
Features
  • 3500K/4000K/5000K CCT Selectable
  • 20W/30W/40W Wattage Selectable
  • Backlit LED Technology
  • Flicker Free, Even Light Distribution
  • 0-10V Dimmable
  • 50,000 average rated hours of use
  • DLC Listed
  • Driver Specs - VDC38-48V
  • 430/620/810mA
Prop 65
  • Lead
Accessory Products
  • 65-589
  • 65-591
  • 65-596
  • 65-596R1
  • 65-600
  • ADPD4FBL3P2W4
  • DF10P
  • DS710-10Z
  • DVSCSTV
  • DVSTV
  • IP710-LFZ
  • MS-Z101
  • MS-Z101-V
  • NTSTV-DV
  • RMJS-8T-DV-B PJ2-3BRL-GWH-L01
  • SF10P
Replaced By Products
  • 65-571
