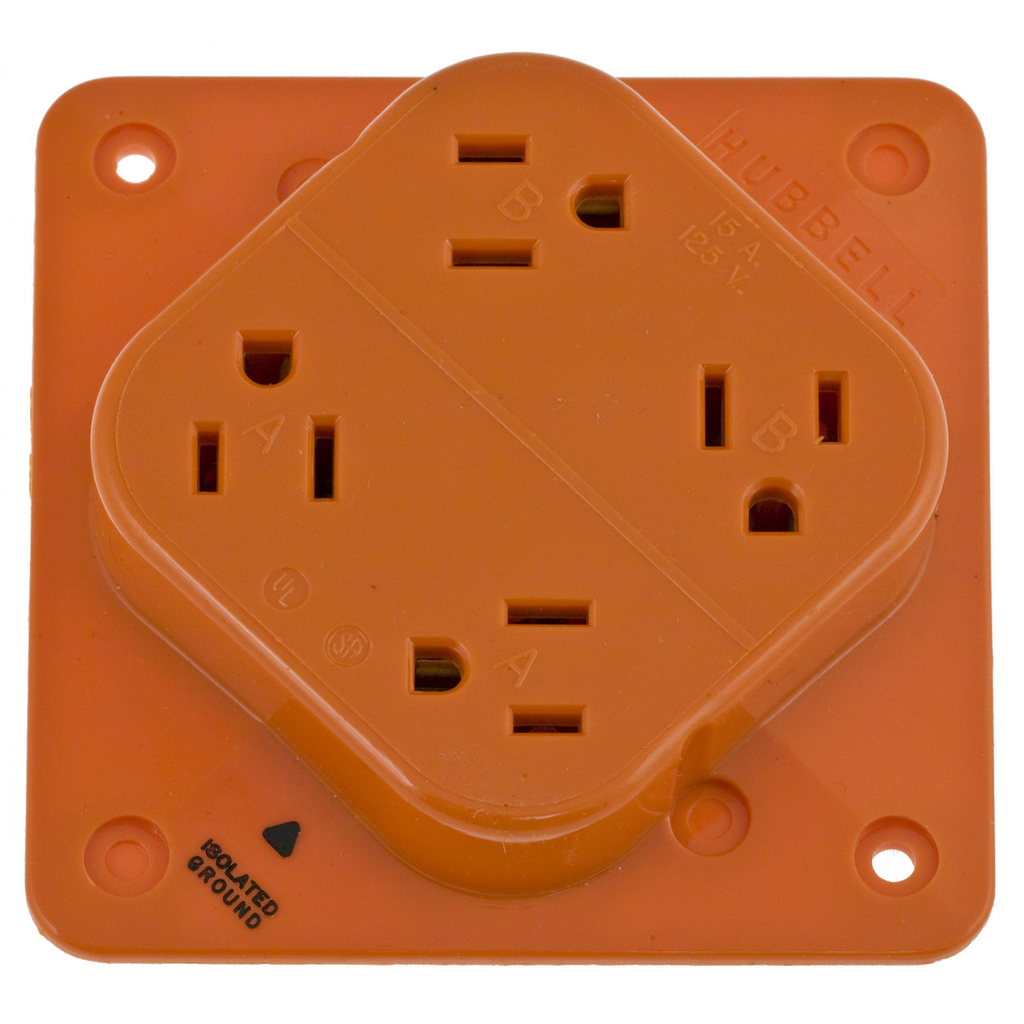

Product image for Hubbell IG415 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Orange Isolated Ground Straight Blade Receptacle
Email

Hubbell IG415 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Orange Isolated Ground Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device | Catalog # IG415 | Cooper Electric Part # 1940589
$47.76/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, Isolated Ground, 4-Plex, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Orange, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Commercial Grade
Base Material
PBT
Conductor Size
14-12 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Polycarbonate
Grade
Commercial
Grounding
Isolated Ground
Horsepower
0.50 hp
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,E2186,UL
TC Connection
Screw, 6 Terminals
Type
Quad Receptacle
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585422251
Color
Orange
Environmental Conditions
Indoor Only
GTiN
00783585422251
Product Series
4-Outlet Receptacle
Product UPC
78358542225
Weight
0.4 lb

Dimensions

Height
4.3 Inch
Length
4.3 Inch
Width
0.92 in

Certifications and Compliance

Country of Origin
USA
Features
  • Triangle marking on face indicates isolated ground
  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets
  • Isolated Ground
