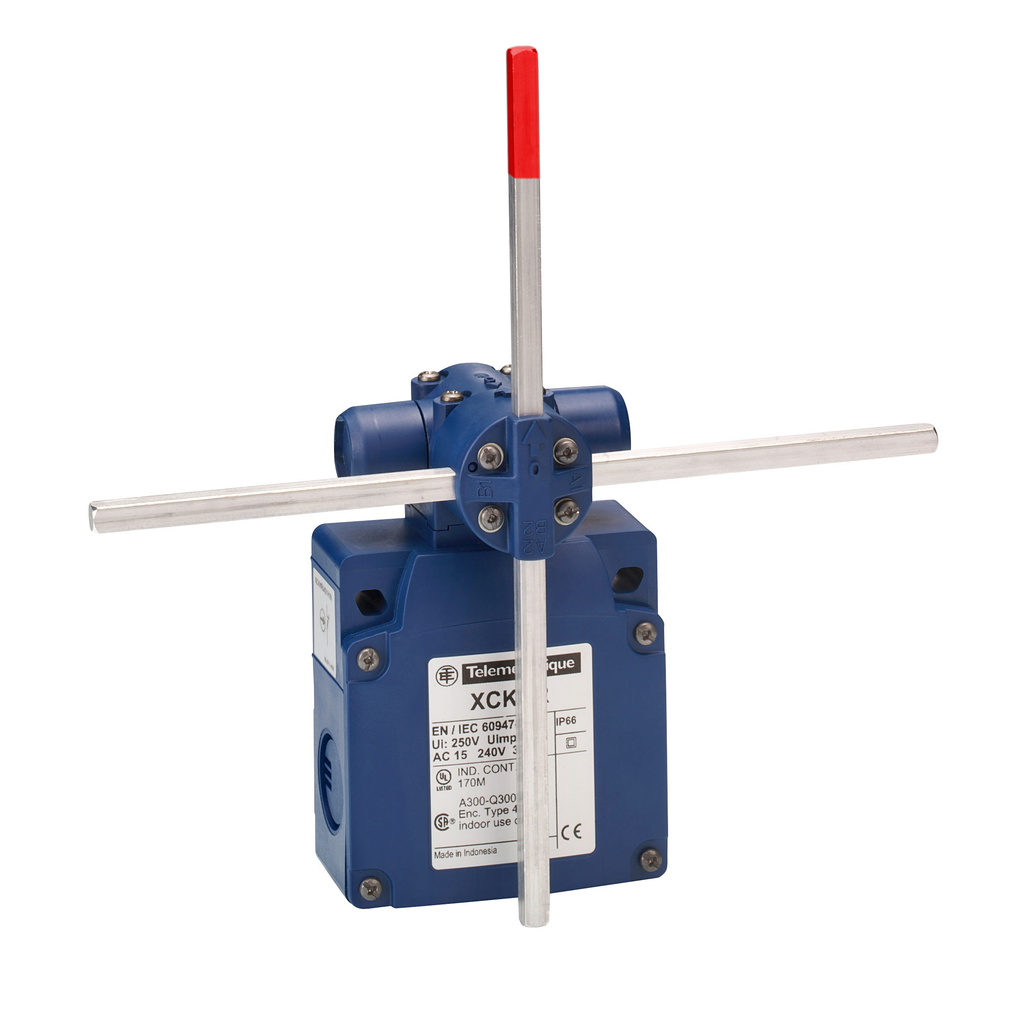

Product image for TES XCKVR44D1H29 Limit switch, Limit switches XC Standard, XCKVR, stay put crossed rods lever 6 mm, 2x(NC+NO), slow, M20
Image thumbnail 0
Image thumbnail 1
Email

TES XCKVR44D1H29 Limit switch, Limit switches XC Standard, XCKVR, stay put crossed rods lever 6 mm, 2x(NC+NO), slow, M20

Manufacturer: TES Electric | Catalog # XCKVR44D1H29 | Cooper Electric Part # 1933500
$316.54/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
The XCKV limit switches range is designed for hoisting and material handling applications. This product is a single speed switch, with 3 cable entries. It is composed of a plastic body and a rotary operating head, cruciform metal rods for lateral approach, 2 directions.

Technical Information

Action
BY ANY MOVING PART,LATERAL APPROACH, 2 DIRECTIONS,SLOW-BREAK, BREAK BEFORE MAKE
Actuator
STAY PUT CROSSED RODS LEVER METAL SQUARE ROD 6 MM, L = 200 MM
Applications
FOR HOISTING AND MECHANICAL HANDLING APPLICATIONS
Body Material
(PBT+PC)-GF30 FR
Contact Configuration
2 X (1 NC + 1 NO)
Material
Plastic
Net Weight
0.32 kg
Number of Poles
4 Pole
Number of Steps
4
Operating Temperature
-25-70 Adegrees C
Size
200 MM,200-200 MM,57 MM
Standard
CSA C22.2 No 14,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.5...2 X 2.5 MMA
Type
LIMIT SWITCH,ROTARY HEAD

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCKVR

General Product Info

12-Digit UPC
389119077470
GTiN
03389119077477
Product UPC
38911907747

Dimensions

Depth
57 mm
Height
200-200 mm
Warranty Length
18 mth
Width
200 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CE,CSA,UL
