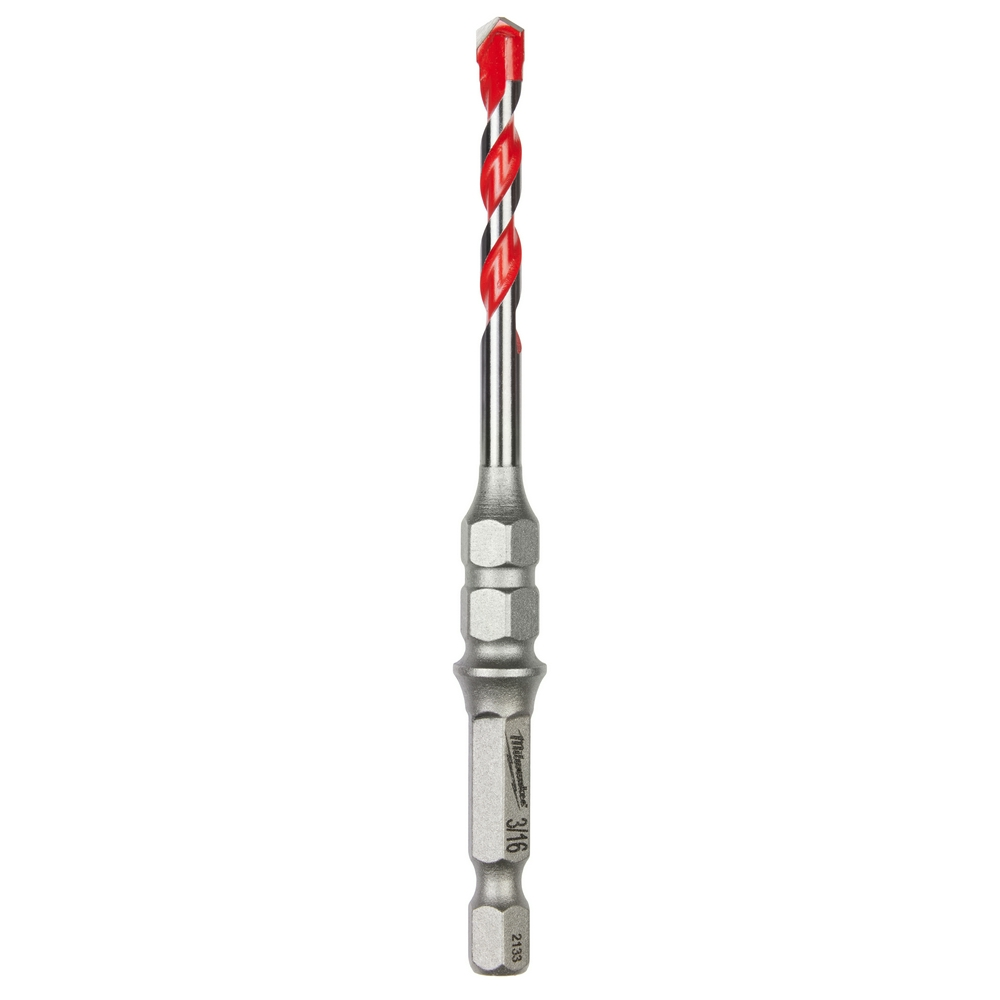

MILW 48-20-9094 3/16" x 4" Hammer D

Manufacturer: Milwaukee Tool | Catalog # 48-20-9094 | Cooper Electric Part # 1928031

$7.37/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
6 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch

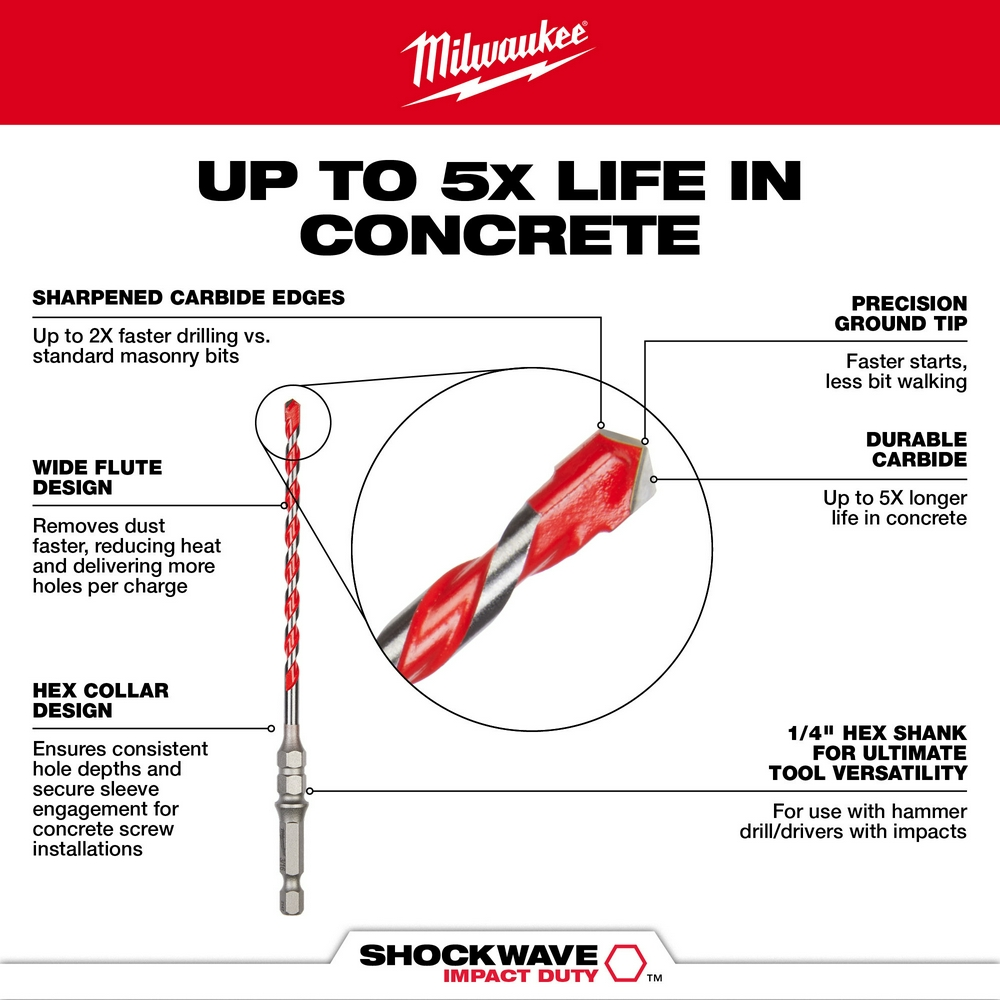

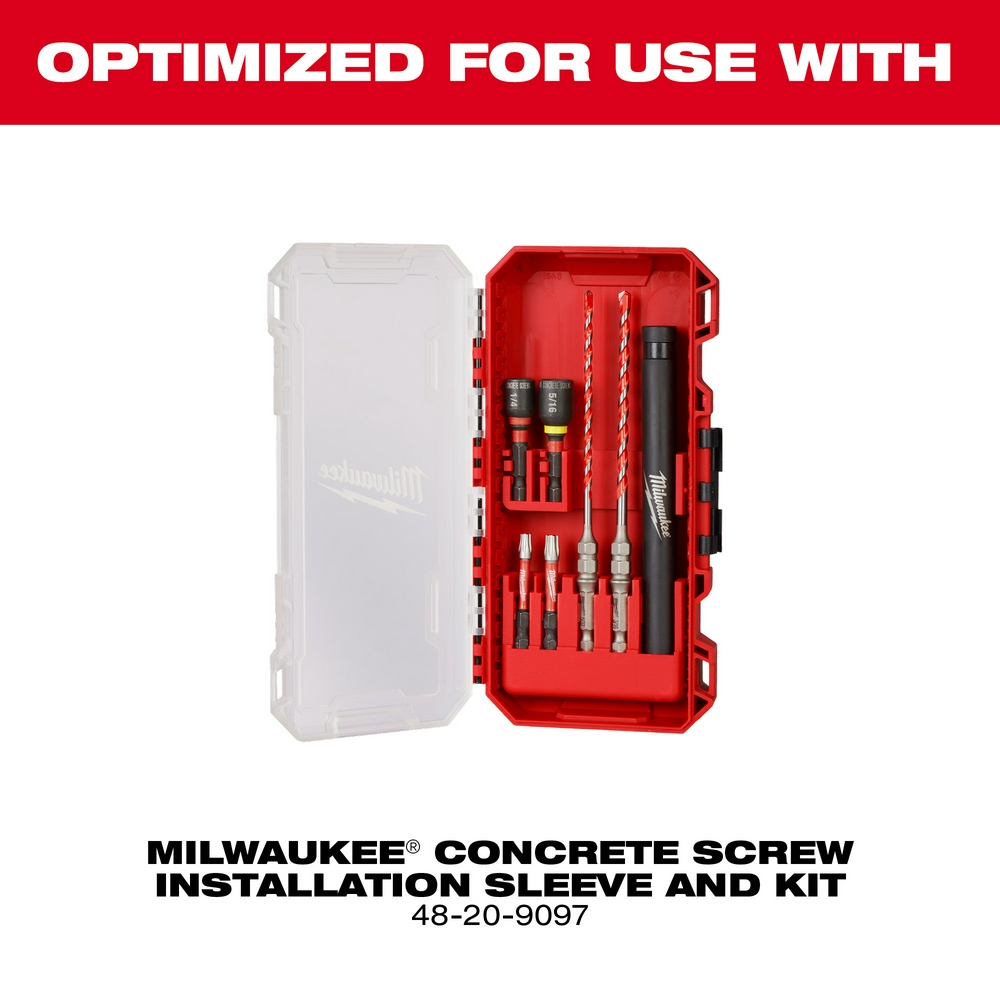

The MILWAUKEE® SHOCKWAVE Impact Duty™ Carbide Hammer Drill Bits w/ Hex Collar use sharpened carbide to deliver up to 5X longer life in concrete and up to 2X faster drilling into masonry materials. Engineered with a precision ground tip, these bits deliver faster starts and less walking in concrete, brick and block. The carbide-tipped masonry drill bits' wide flute design removes dust faster, reducing heat and delivering more holes per charge. These bits are designed with an added hex collar, which ensures a consistent hole depth during every concrete screw install. Equipped with a 1/4 in. hex shank, the Milwaukee SHOCKWAVE Carbide Hammer Drill Bits are the ideal solution for drilling in masonry materials with both impacts and hammer drills/drivers. Optimized for use with the MILWAUKEE® Concrete Screw Installation Sleeve and Kit.

Technical Information

Applications
For Concrete, Brick and Block, Percussion
Bit Diameter
3/16 in
Bit Type
Percussion
Drilling Depth
2 in
Material
Carbide
Shank Size
0.25 in dia
Shank Type
Hex
Type
Single Ended

Manufacturer Information

Brand
Milwaukee Tool
Sub Brand
Impact Duty, Shockwave™

General Product Info

12-Digit UPC
045242751594
GTiN
00045242751594
Product UPC
04524275159
Used With
Impacts and Hammer Drills

Dimensions

Diameter
3/16 Inch
Flute Length
2 in
Length
4 Inch
Overall Length
4 in
Shank Diameter
0.25 in
Features
  • Up to 5x life in concrete
  • Up to 2x faster drilling vs. standard masonry drill bits
  • Built in 1/4\" hex shoulder for use in concrete screw installation kit
  • 3/16\" drill bit ideal for 1/4\" concrete screws
  • SHOCKWAVE Impact Duty™ engineered for hammer drill/drivers and impacts
  • Durable carbide tip for longer life in concrete and hard aggregate
  • Sharpened carbide edges for faster starts in concrete, brick, and block
  • Precision ground carbide tip for less bit walking
  • Wide flute design for fast dust removal
  • Ideal for concrete, brick, and block
