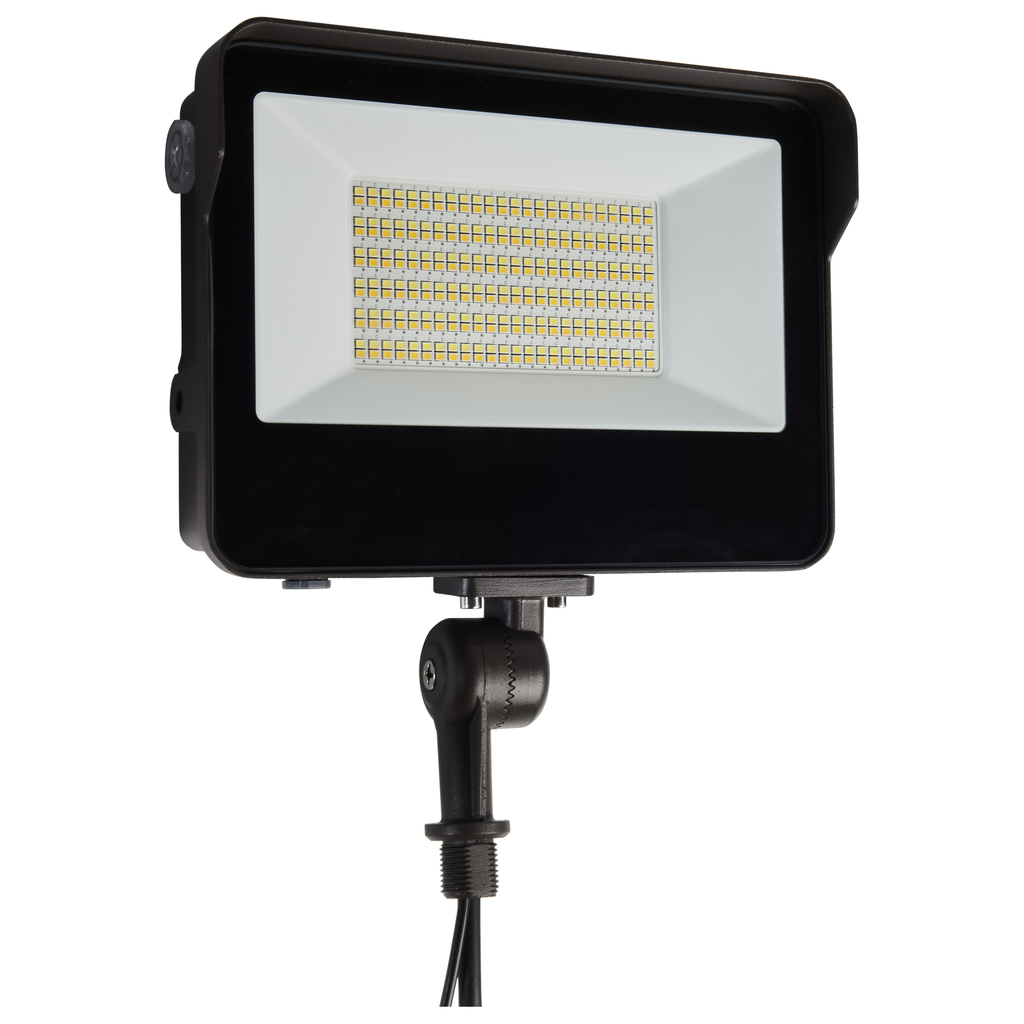

Product image for SATCO 65/542 LED WATT/CCT SELECTABL
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

SATCO 65/542 LED WATT/CCT SELECTABL

Manufacturer: Satco | Nuvo | Catalog # 65/542 | Cooper Electric Part # 1926868
$154.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

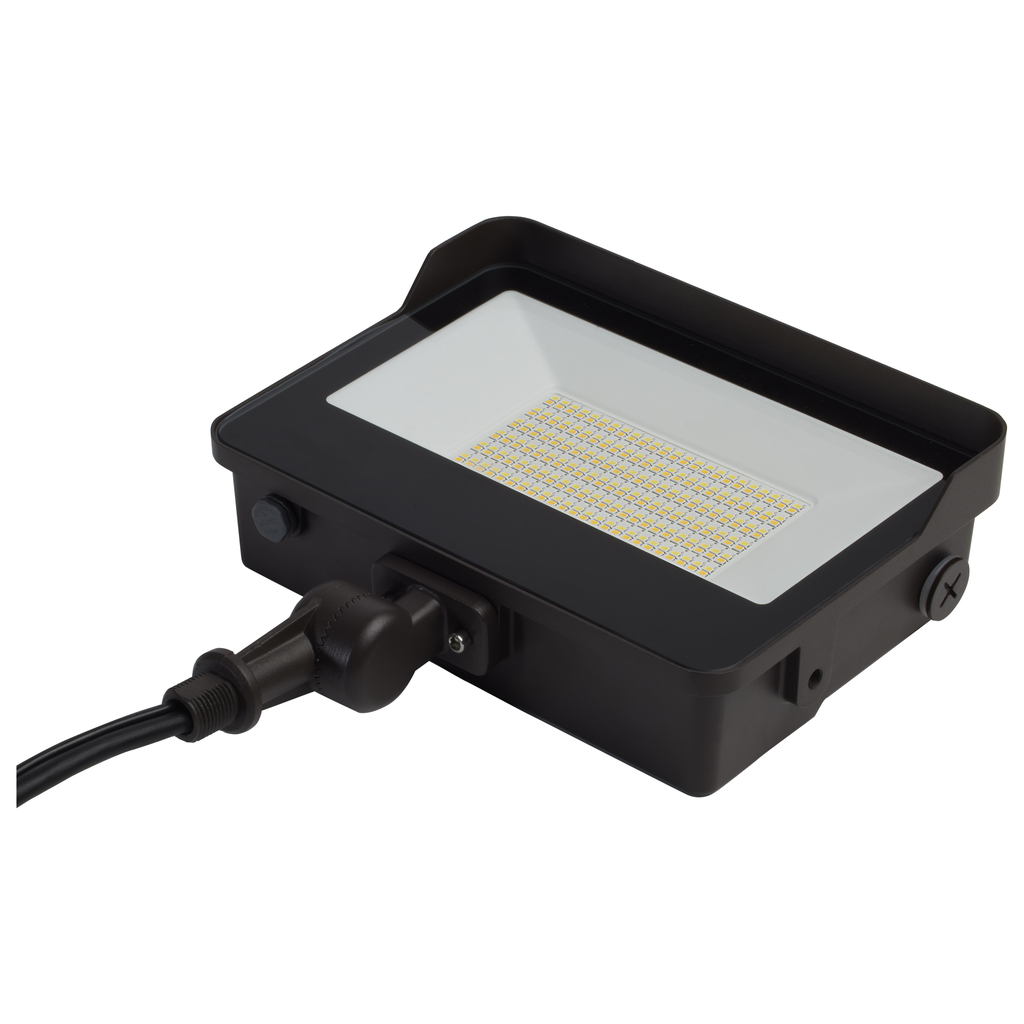

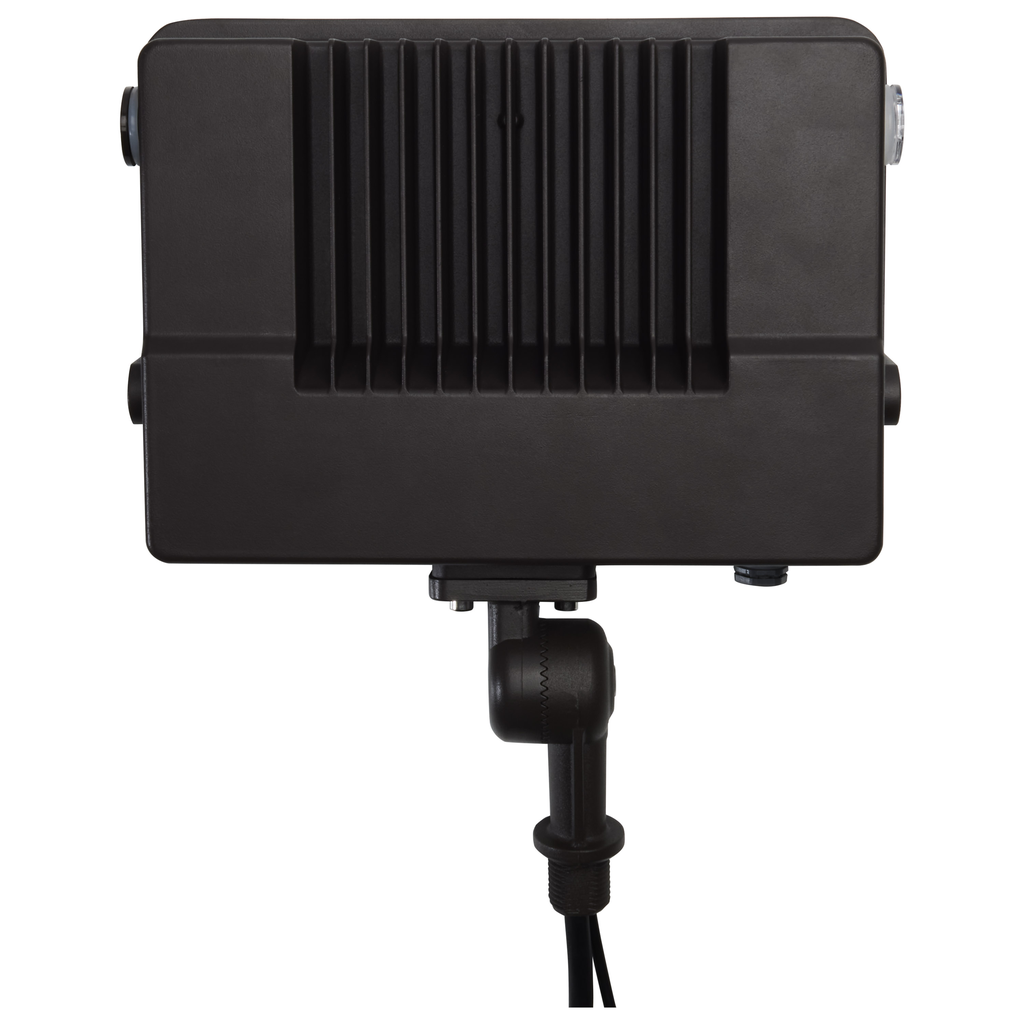

SATCO|NUVO's 65-542 LED Tempered Glass Flood Light is both 3K/4K/5K CCT selectable and 45W/60W/80W wattage selectable, allowing you to visualize and customize any environment. The fixture is IP66 rated to withstand harsh weather conditions, and the highly durable tempered glass offers better light distribution where security and safety is key. With 6KV built-in surge protection and an integrated bypassable photocell, this fixture is an ideal solution for a variety of applications.

Technical Information

Amperage
0.375-0.130/0.500-0.173/0.667-0.231A Amp
Applications
Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
Average Rated Life
50000 hr
Base
Integrated LED
Beam Spread
140,150
Color Temperature
Cool White,Warm White
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
300 W
Indoor Outdoor
Outdoor
IP Rating
IP66
Lamp Type
LED
Lens Color
Clear
Lens Material
Tempered Glass
Lumens
11,200 Lumen
Material
Aluminum
Number of Lamps
1
Operating Temperature
-22 degrees F
Power Factor
0.9
Power Source
Hardwired
Size
L:9.65 W:11.68 H:3.07 IN
Standard
CULus
Style
Utility
Technology Type
LED
Type
Flood Light
Voltage
120 Volt
Wattage
45 Watt
Wet Location
Wet

Packaging

Pkg Qty
1

Manufacturer Information

Brand
NUVO Lighting
Sub Brand
Nuvo

General Product Info

12-Digit UPC
045923657979
Color
Bronze
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Finish
Bronze
Fixture Type
Floodlight
GTiN
00045923657979
Product UPC
04592365797
Weight
2.44 lb

Dimensions

Height
3.07 Inch
Length
9.65 Inch
Warranty Length
5 yr
Width
11.68 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
China
Installation Notes
  • Height will change with different mounting options.
Features
  • 3000K/4000K/5000K CCT Selectable
  • 45W/60W/80W Wattage Selectable

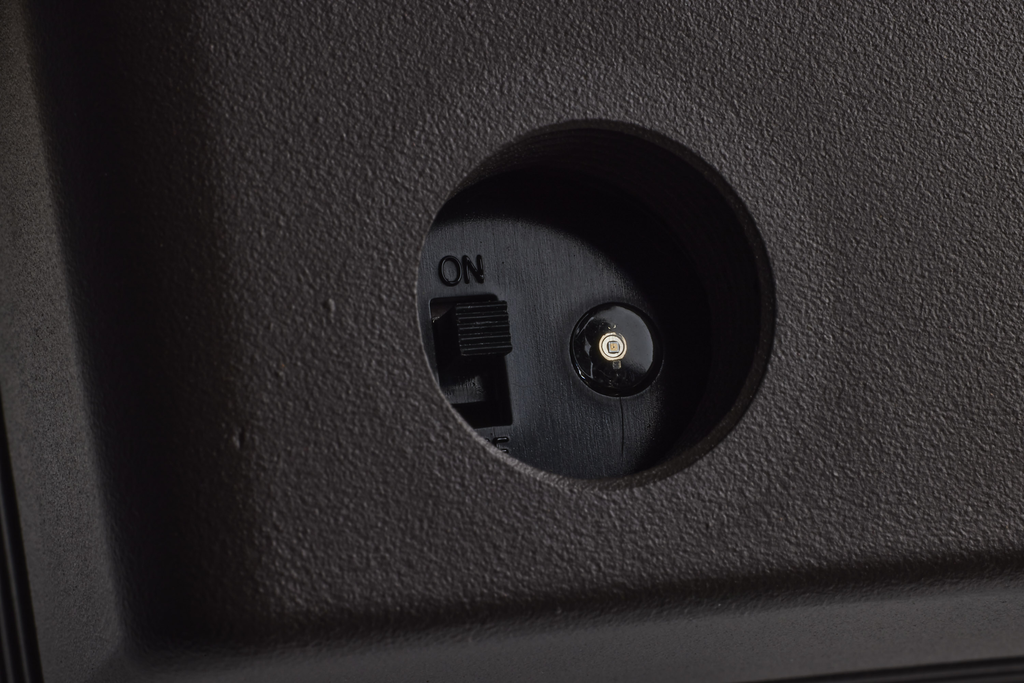

  • Integrated bypassable Photocell and 6KV Surge Protection
  • Tempered Glass
  • 0-10V Dimmable
  • IP66
  • 50,000 Hours
  • NEMA Distribution: 7V X 7H
  • Suggested Applications: Commercial/Industrial, General Site Lighting, Landscape, Sign Illumination, Pathway/Walkway
