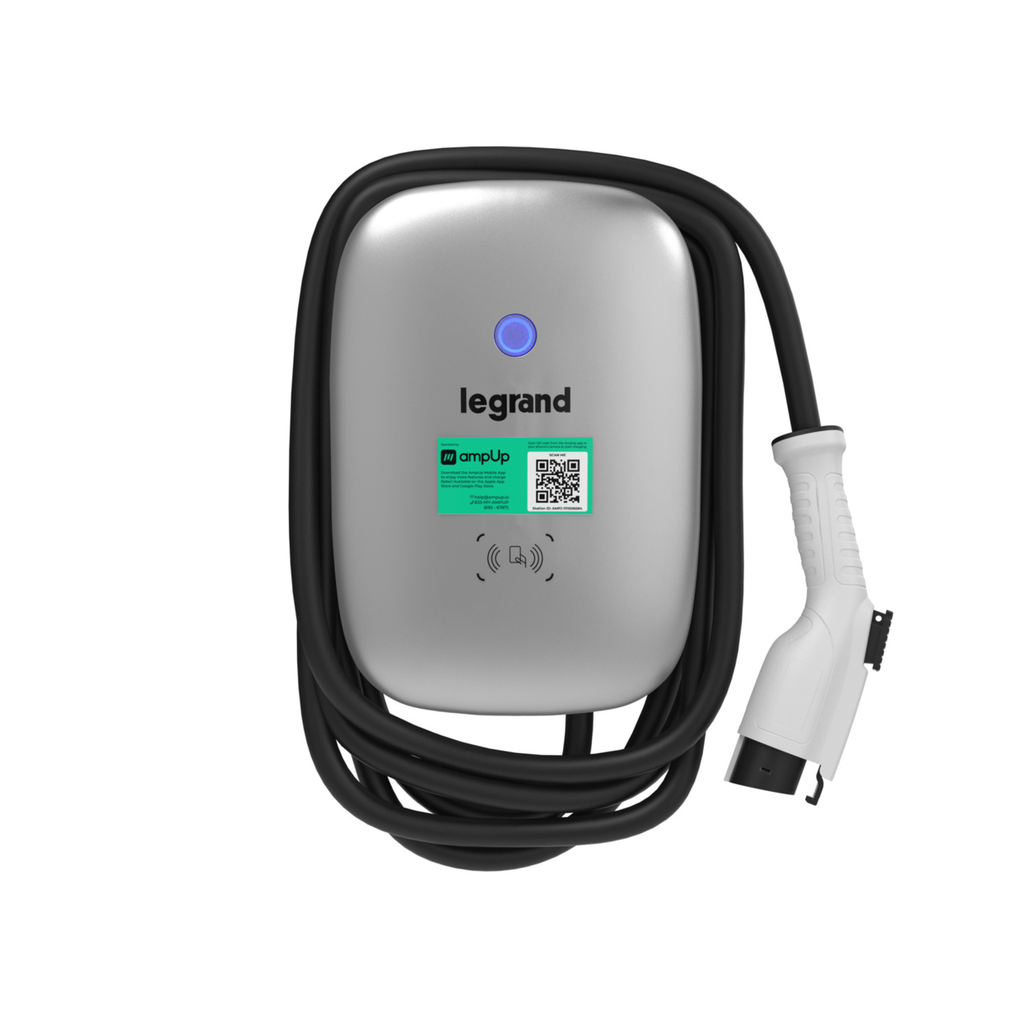

Product image for Wiremold LNA-EVC1-48-SV1 Networked Level 2 Commercial EV Charger, 48A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Wiremold LNA-EVC1-48-SV1 Networked Level 2 Commercial EV Charger, 48A

Manufacturer: The Wiremold Co | Catalog # LNA-EVC1-48-SV1 | Cooper Electric Part # 1918651
$3,509.29/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
Legrand.s Level 2 Networked EV Charger provides facility managers and owners the ability to offer convenient access to electric vehicle charging for employees and tenants. The networked charger comes preconfigured with the AmpUp Charging Solution, allowing for faster commissioning and setup. The charger is available in a single 48A unit and can be either wall-mounted or pedestal-mounted for installation flexibility.

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786776198577
Color
Silver
GTiN
00786776198577
Product UPC
78677619857
Weight
13.3 lb

Dimensions

Height
3.9 Inch
Length
14.2 Inch
Width
9.8 in

Certifications and Compliance

Country of Origin
China
Features
  • High Power Output: Variable 16A - 48A power output provides fast Level 2 charging, 30% faster than 32A chargers
  • Networked Charger: Cellular 4G connectivity provides access control and remote monitoring of chargers

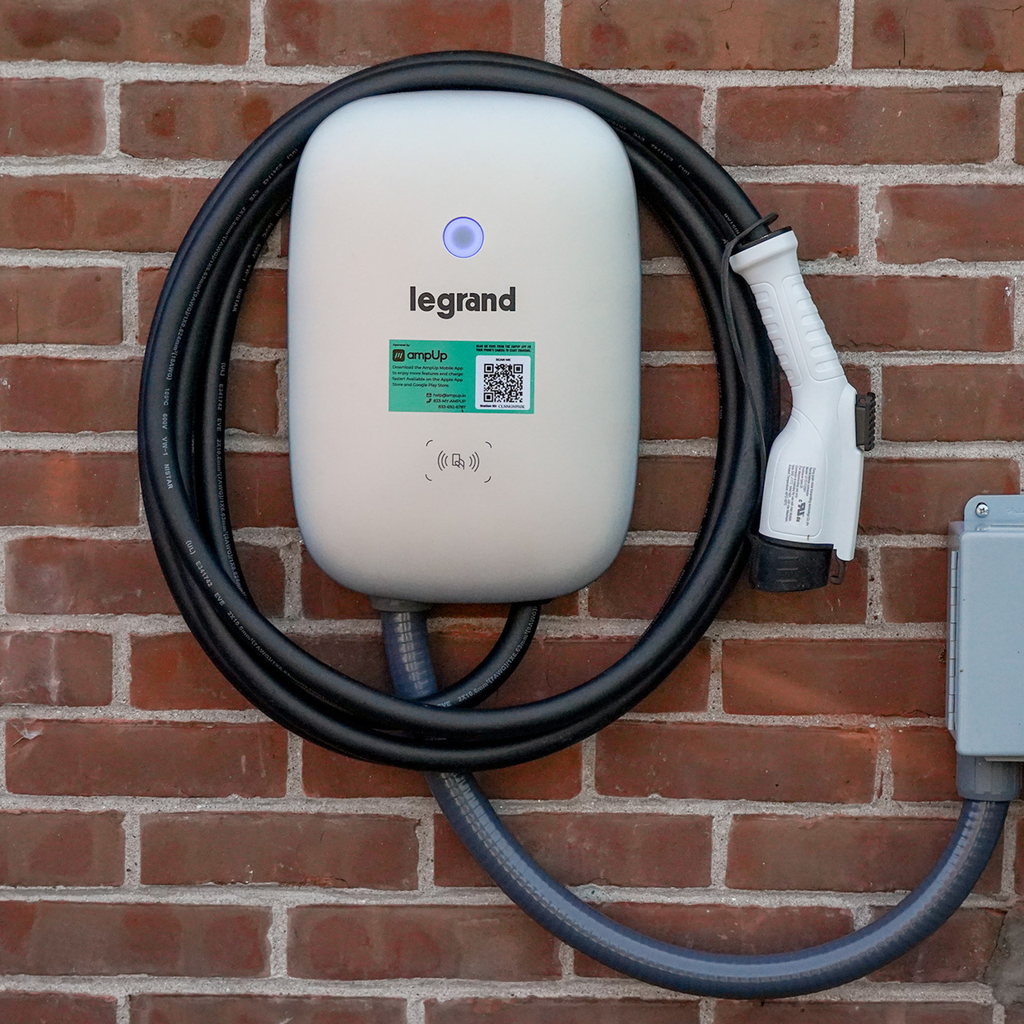

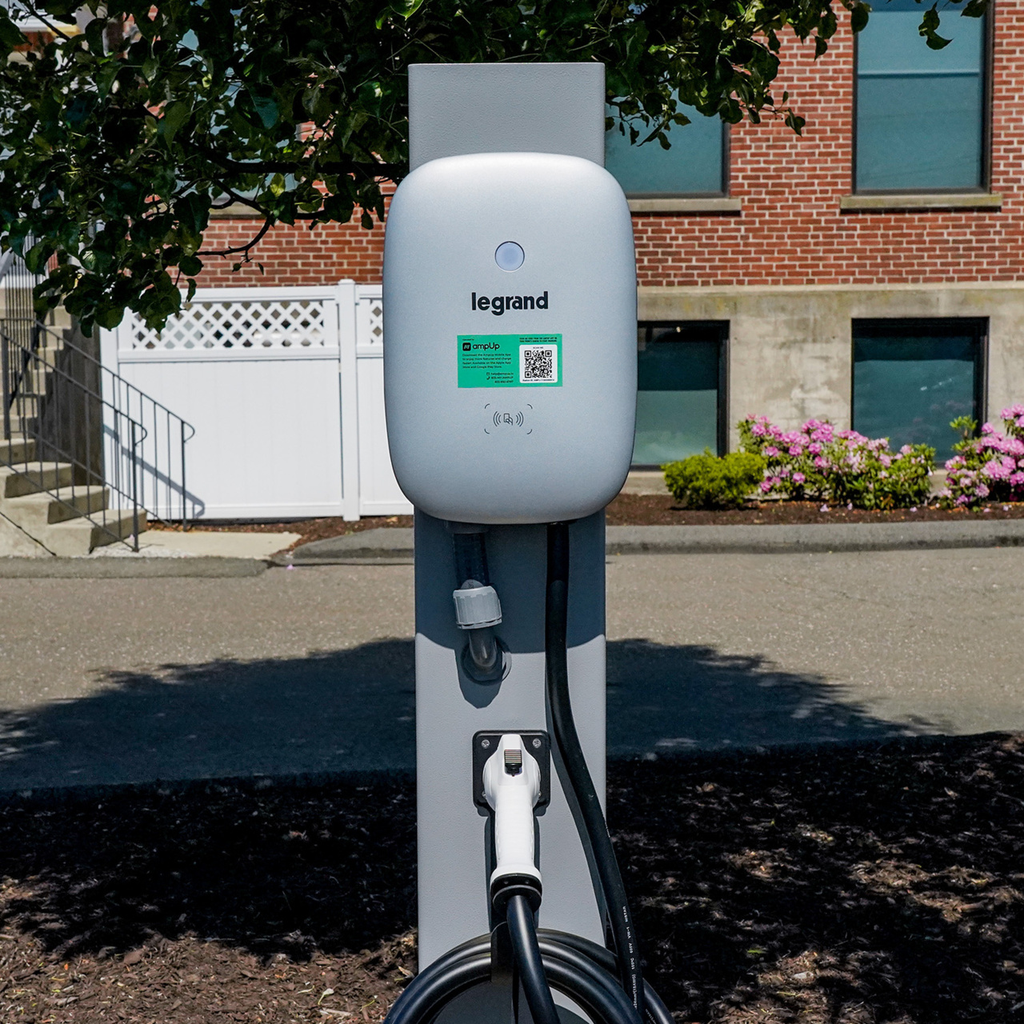

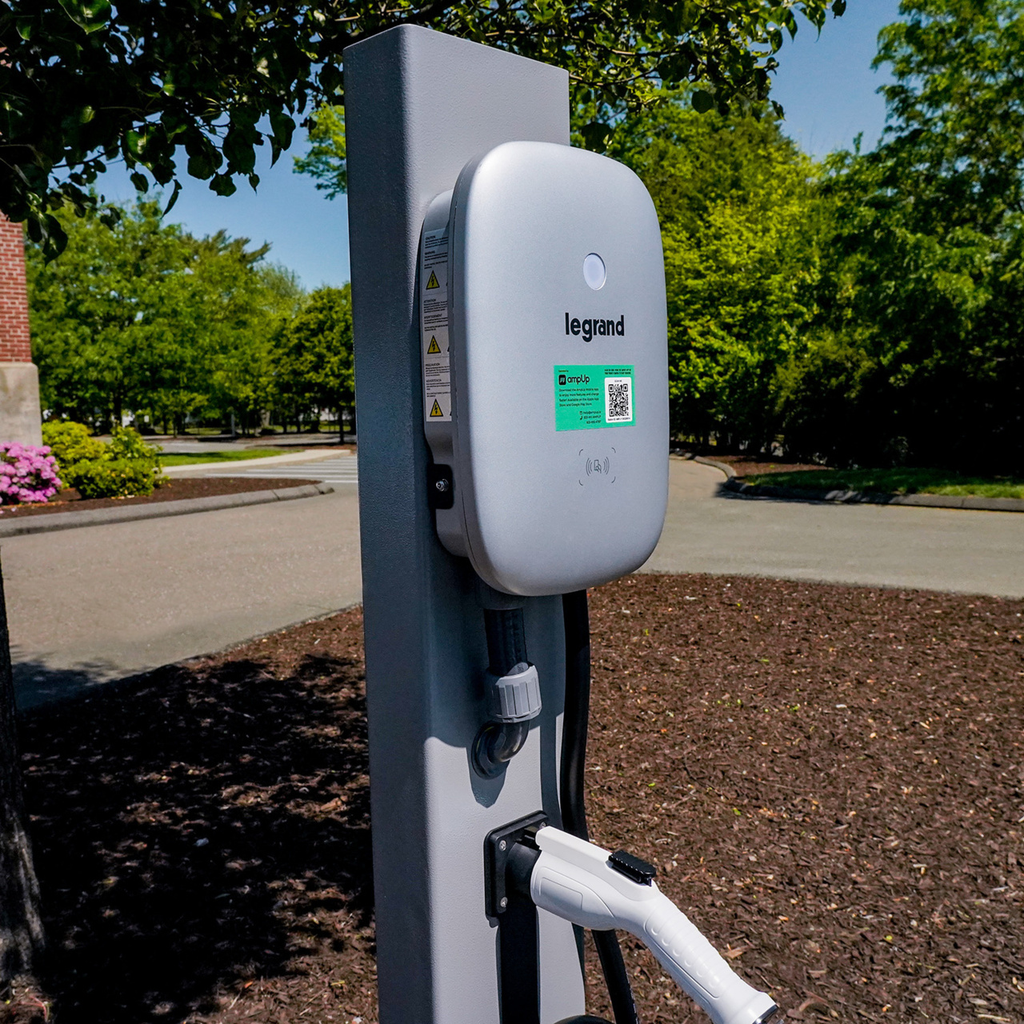

  • Flexible Installation: Wall-mount or pedestal-mount options available
  • SAE J1772 Connector: North American standard charging connector for electric vehicles with an 18-foot cord for greater reach in parking spaces
  • OCPP 1.6-J Compliant: Compatible with the Open Charge Point Protocol 1.6-J (preconfigured for AmpUp).
  • Estimated Range Per Hour: Up to 46 miles (48A, 11.5kW)
  • LED Indicator: Integrated LED light indicates charge status of vehicle charging, fully charged or if there is a charging issue.
  • UL Listed Pedestal: cETLus Listed to UL2594 and CSA C22.2 No. 280 Electrical Vehicle Supply Equipment.
  • ENERGY STAR Certified: Save energy, money, and qualify for incentive programs.
  • Incentive Ready: Approved on several utility and government programs.
  • Factory-Configured with AmpUp: Each EV Charger comes with the AmpUp Charging Solution already installed, allowing for faster installation of chargers and additional control and monitoring of units
Certifications
  • cETLus Listed
  • RoHS Compliant
