LEV PFUS1-MB Pop-Up Floor Box w/ 15

Manufacturer: Leviton Mfg Co | Catalog # PFUS1-MB | Cooper Electric Part # 1911781
$118.88/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet

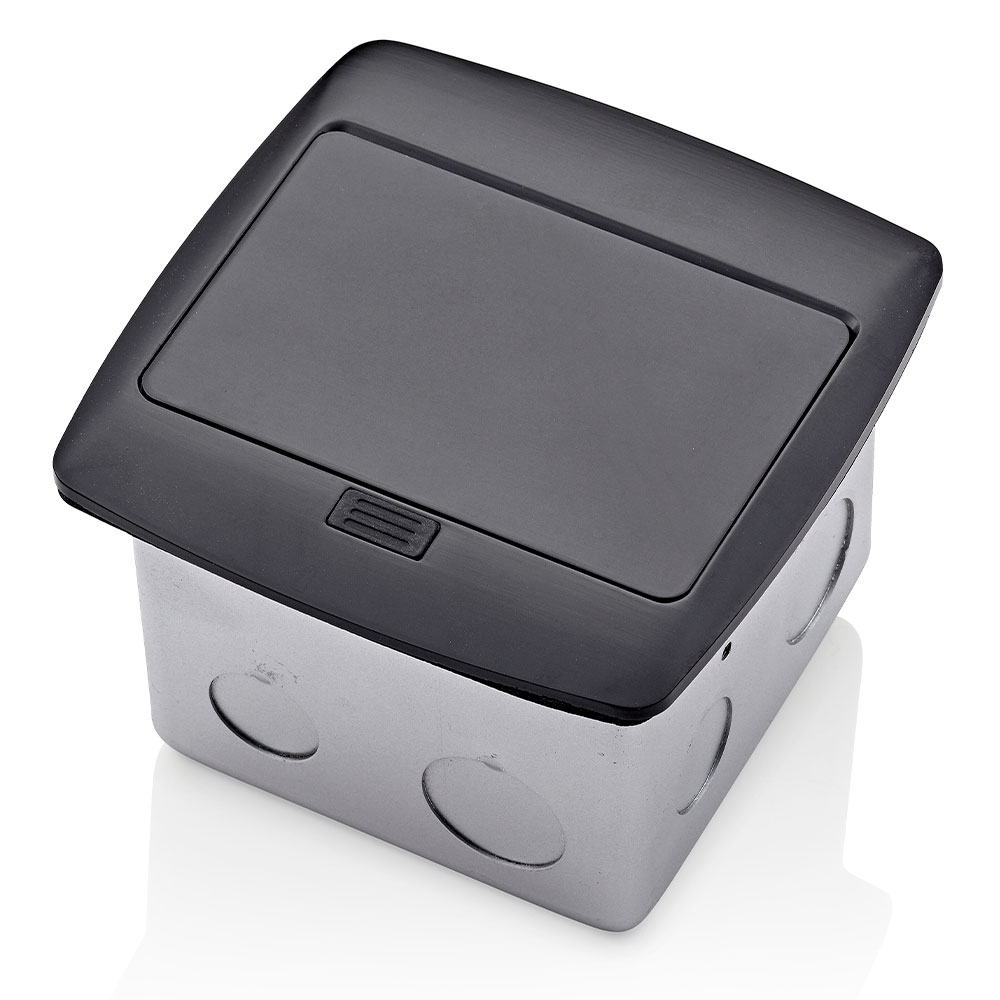

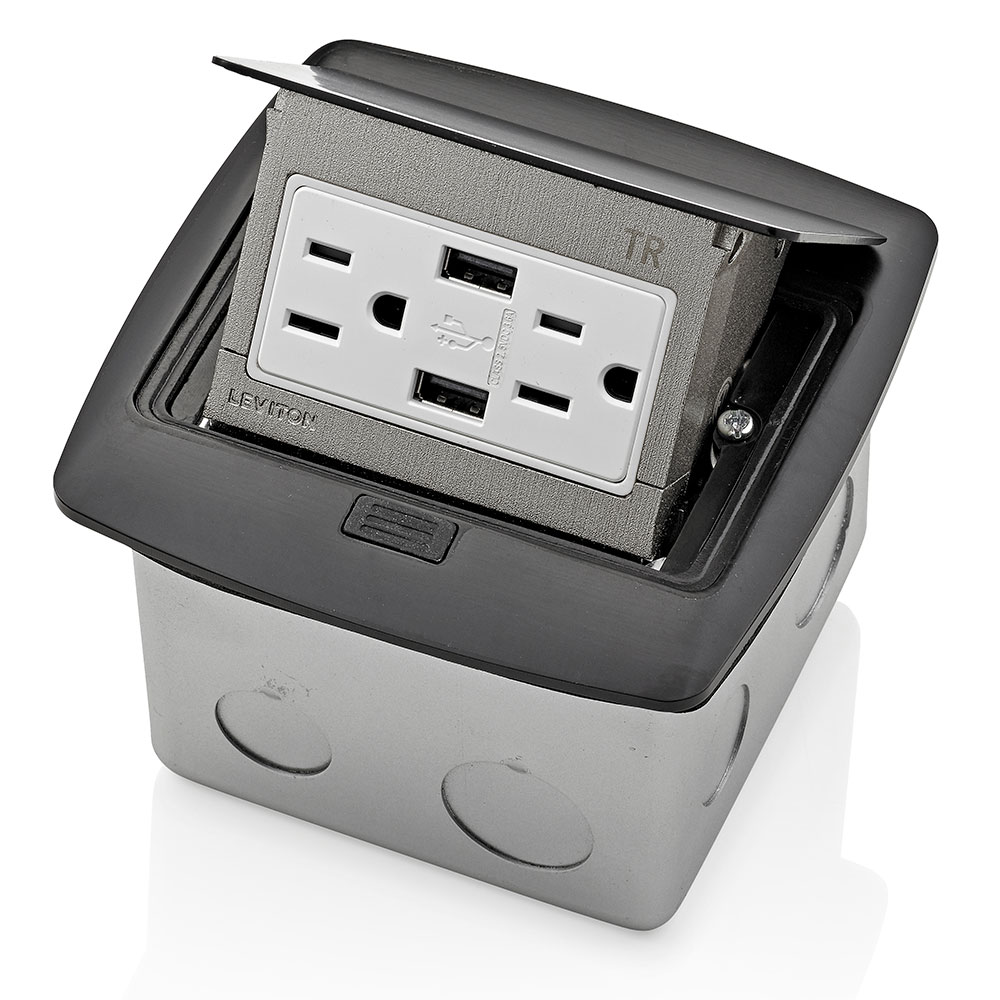

Pop-Up Floor Box with Combination Duplex Receptacle/Outlet and USB charger. 15 Amp, 125 Volt, Decora Tamper-Resistant Receptacle/Outlet, NEMA 5-15R, 3.6 Amps, 5VDC, 2.0 Type A USB Charger that is Pre-Wired to Terminal Block - Black

Technical Information

Amperage
15 Amp
Conductor Size
14-12 AWG
Material
Steel
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Standard
Certified To CSA STD 22.2 No. 18.1,Conforms To UL STD 514A,IP 44,NOM ANCE*
Termination Type
Terminal Block
Type
2-Pole, 3-Wire
Voltage
125 VAC
Wire Count
3
Wire Size
12-14 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
POP UP FLOOR BOXES

General Product Info

12-Digit UPC
078477950111
Color
Black
GTiN
00078477950111
Product UPC
07847795011

Dimensions

Depth
2-1/4 Inch
Length
4.92 Inch
Warranty Length
2 yr
Width
4.92 in

Certifications and Compliance

Certifications
CETLus
Country of Origin
Please Contact Customer Service
Features
  • TIME SAVING INSTALLATION - Terminal block is pre-wired for easy access, just insert the wires and tighten the screws
  • CONVENIENT Low profile, stylish metal cover recesses into the floor when not in use reducing above floor height to inch. Press button to access
  • PROTECTION Meets or exceeds UL 514A including scrub water test. IP 44 rated protection from ingress water spray from any direction when closed
  • VERSATILE Can be used with a variety of flooring types: Tile, stone, wood, laminate, carpet, concrete and vinyl
Color Variations
  • Brushed Nickel
NEMA
  • 5-15R
