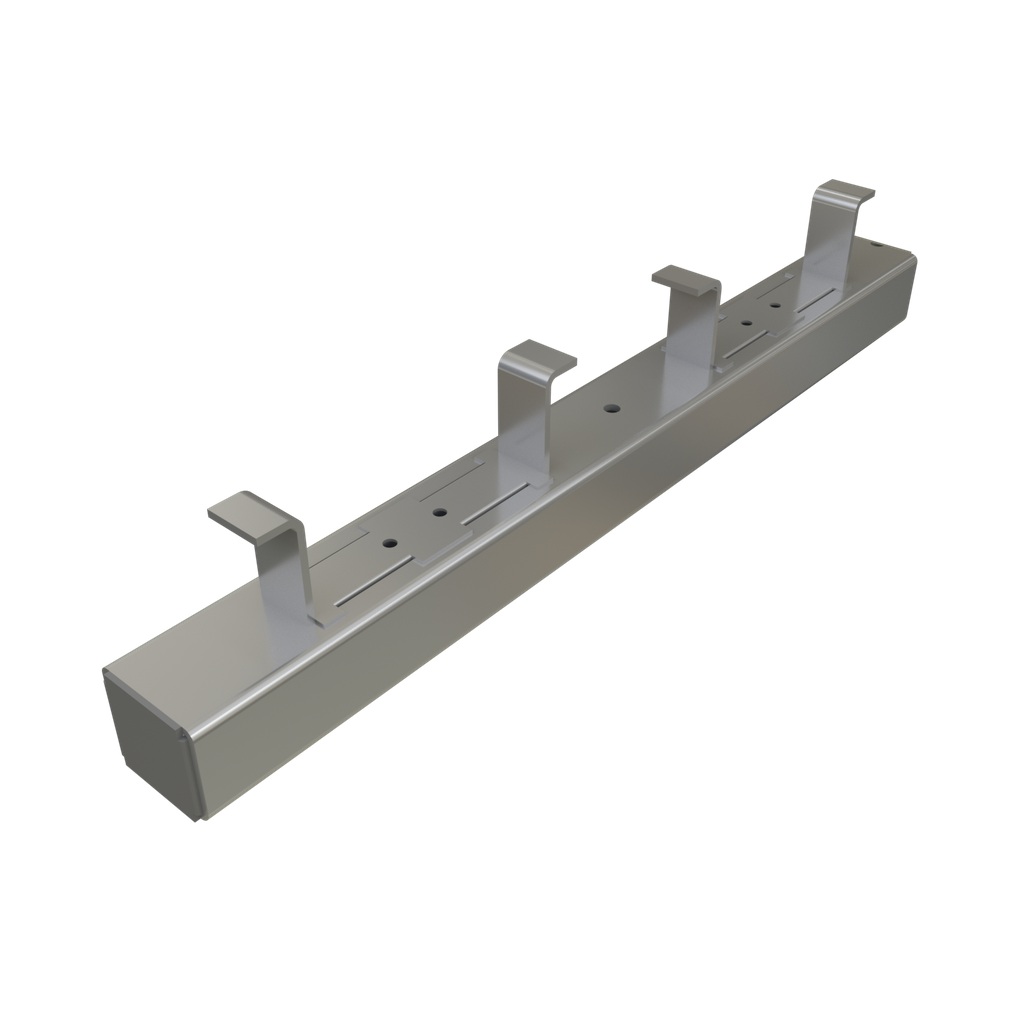

Unistrut P3263X PL Concrete Insert, 12 Gauge, No Closure Strip, no End Caps, with Back Plates, Steel, Plain/Oil Finish

Manufacturer: Unistrut Corporation | Catalog # P3263X PL | Cooper Electric Part # 1911629
$13,480.65/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Unistrut's P3200 Series Concrete Insert is ideal for anchoring structures and supports to concrete. This product allows easy installation before the concrete is poured, and attachment anywhere along its length using 1-5/8" Fittings, Channel Nuts or other Unistrut products. It is perfect for applications that may need to be re-configured or re-anchored.

Manufacturer Information

Brand
Unistrut

General Product Info

12-Digit UPC
786364893051
Product UPC
78636489305

Dimensions

Length
96 Inch

Certifications and Compliance

Country of Origin
USA
Features
  • Used for anchorage on ceilings, floors or walls. Ideal for applications with cracked concrete concerns. Avoids the creation of Silica Dust during installation (see OSHA 29 CFR 1926.1153 and 29 CFR 1910.1053). OPA approved for seismic bracing application
  • Channel dimensions are 1 5/8\" wide x 1 3/8\" deep x 12 ga. thick. Embedment tabs are spaced at 8\" O.C. with an embedment depth of 2-7/8\". May be supplied with Back Plates, End Caps and a Closure Strip to prevent concrete seepage into the channel.
  • Up to 2,000 lbs capacity
  • Our P3200 Series is available in Pre-Galvanized (PG), Hot-Dip Galvanized (HG), Plain (PL), and Stainless Steel (SS).
  • Options: \"NC\" Suffix - No Closure Strip, with End Caps & Back Plates. \"WC\" Suffix - With Closure Strip, End Caps & Back Plates. \"X\" Suffix - No Closure Strip, no End Caps, with Back Plates
  • Includes closure and end caps unless otherwise requested.
  • P3280 end cap used with distance to first anchor is up to 2\" (51 mm).
  • P3704 end cap is used when end distance to first anchor is over 2\" (51 mm).
  • Nail or anchor inserts to forms every 16\" (406.4 mm) to 24\" (609.6 mm).
  • Anchors are 8\" (203.3 mm) on center.
