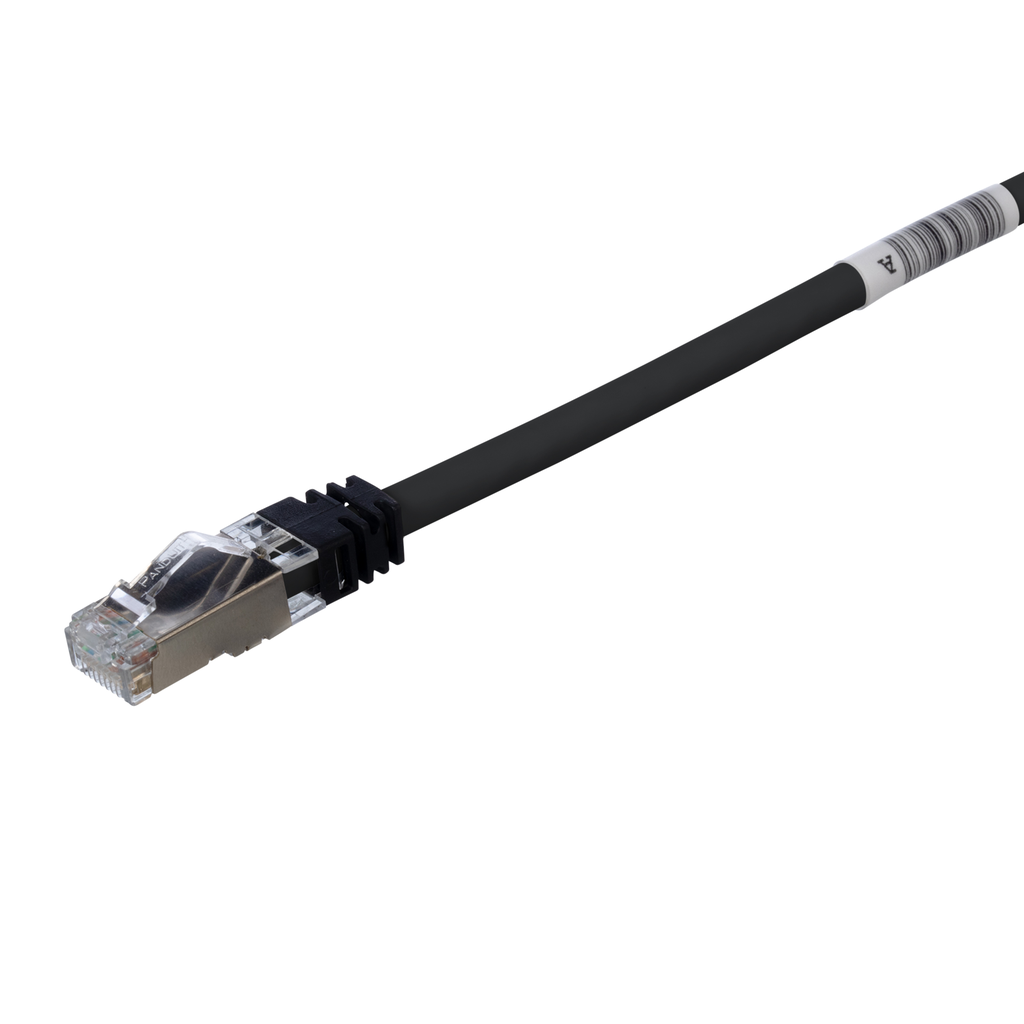

Product image for Panduit STP6X5MBL Cat 6A 26 AWG Shielded Patch Cord, 5 m, Black
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Panduit STP6X5MBL Cat 6A 26 AWG Shielded Patch Cord, 5 m, Black

Manufacturer: Panduit Corp | Catalog # STP6X5MBL | Cooper Electric Part # 1909489
$52.55/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Engineering Drawing Product Brochure
The TX6A™ Cat 6A Shielded Patch Cord is constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord.s slender strain relief boot provides easy access in high-density applications. The patch cord is 5 meters in length and black.

Technical Information

Applications
(1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging
Boot Color
Black
Cable Type
26 AWG S/FTP
Conductor Material
Copper
Conductor Type
Stranded
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
60 degrees C
Min Operating Temperature
-10 degrees C
Performance Level
Category 6A
Plug Type
Modular Plug
Temperature Rating
140 degrees F
Type
Category 6A
Wire Size
26 AWG

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983708178
Color
Black
GTiN
00074983708178
Jacket Material
LSZH Material
Product UPC
07498370817

Dimensions

Cable Length
5 m
Length
16.4 Inch
Outside Diameter
6.1 mm
Overall Length
5 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
