SATCO S11840 9WLED/GBL/4/CCT/RND/WH

Manufacturer: Satco | Nuvo | Catalog # S11840 | Cooper Electric Part # 1904382
$39.04/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

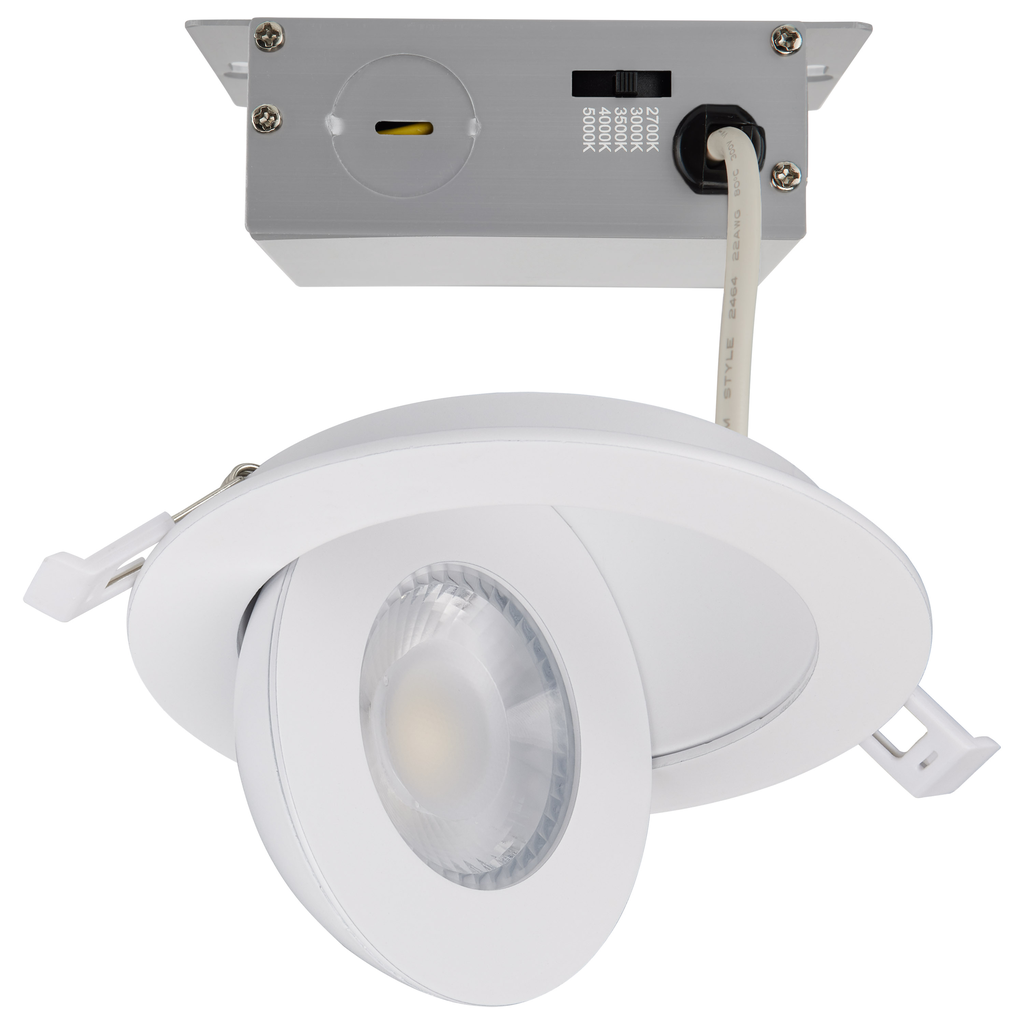

9 Watt CCT Selectable - LED Direct Wire Downlight Gimbaled - 4 Inch Round - Remote Driver - White

Technical Information

Applications
For Indoor
Average Rated Life
50000 hr
Base
Integrated LED
Beam Angle
36
Beam Spread
36
Color Temperature
2700 K
Correlated Color Temp
2700 K
Dimmable?
Yes
Fixture Wattage
9 W
Incandescent Equivalent
50 W
Indoor Outdoor
Indoor
IP Rating
IP42
Lamp Type
LED
Lens Color
Clear
Lens Material
Plastic
Lens Type
Plastic
Lumens
650 Lumen
Material
Aluminum
Operating Temperature
-20 degrees C
Power Factor
0.9
Size
4.92 IN
Style
Utility
Technology Type
LED
Type
Dimmable, Gimbaled, Round
Voltage
120 Volt
Wattage
9 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923118401
Finish
White
Fixture Type
Round
GTiN
00045923118401
Housing Finish
White
Product UPC
04592311840
Weight
1 lb

Dimensions

Diameter
4.92 Inch
Height
1.42 Inch
Warranty Length
5 yr
Width
4.92 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
China
Features
  • CCT selectable 2700K/3000K/3500K/4000K/5000K
  • 360-degree rotation, 0 to 80-degree aiming angle
  • Dimming range 10 percent to 100 percent
  • Damp location rated
  • Long life - 50,000 hours
  • H:1.42\" DIA:4.92\
Prop 65
  • Lead
Installation Notes
  • **If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
