Erico 563995 Four Pole Distribution Block, 400 A, 1 Line Side & 14 Load Side Connections

Manufacturer: Erico, Inc | Catalog # 563995 | Cooper Electric Part # 1897241
$316.83/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

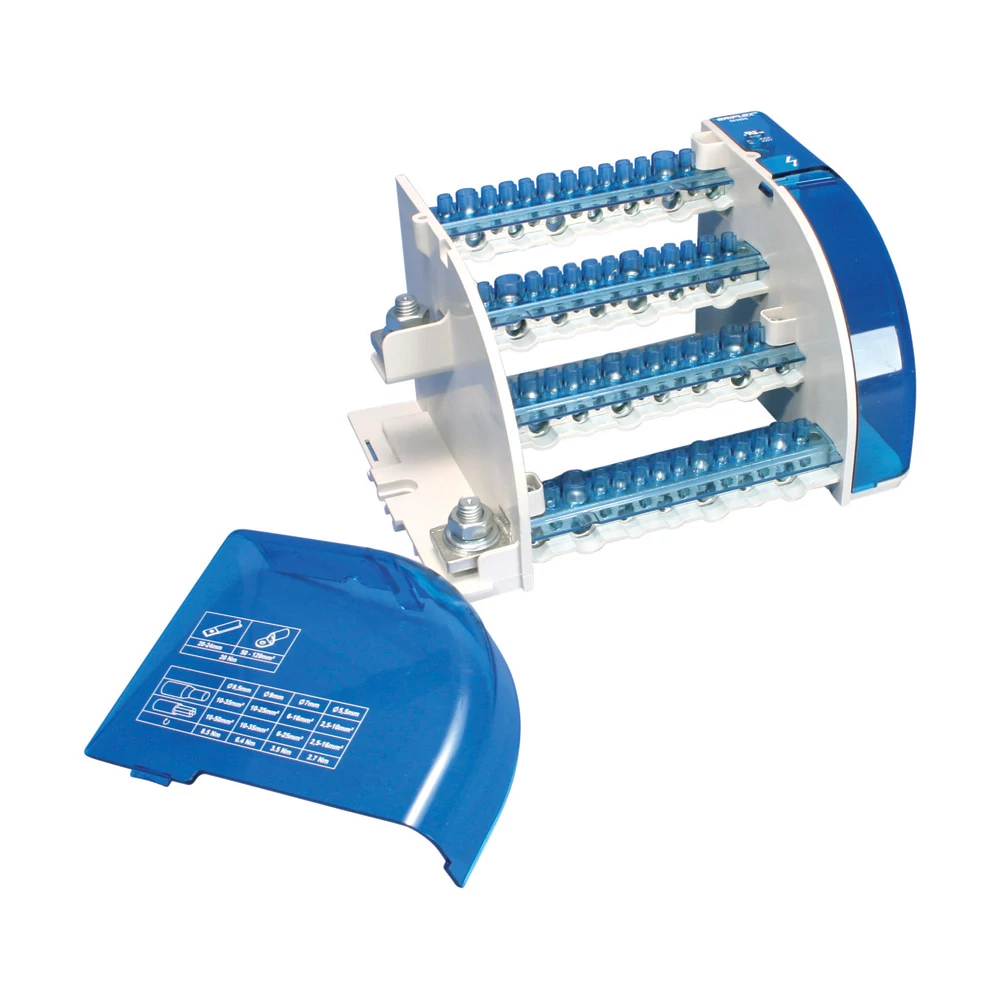

Compact 4-Pole connecting device with an ergonomic design for maximum power in minimum space. Four Pole Distribution Block TDL-400A.

Technical Information

Applications
Power Connections
Enclosure Rating
IP 10
Material
Copper
Number of Poles
4 Pole
Type
Compact Four Pole Distribution Blocks

Manufacturer Information

Brand
nVent Eriflex
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856630999
Finish
Tinned
GTiN
00782856630999
Product UPC
78285663099
Weight
1.67 kg

Dimensions

Depth
4.75-4.75
Height
156-156
Width
8.82-8.82
Features
  • Connect nVent ERIFLEX Flexibar, insulated braided conductor or cable with lug on line side
  • Tinned copper bars allows for copper or aluminum cable
  • Transparent protection covers
  • Easy and safe connections
  • Easily clips onto DIN rail or mounts to panel with screws
  • Solid bars provide reliability
  • Input separated from outputs
  • Supports wiring from both sides
  • Design allows for visual inspection of conductor and confirmation of connection
  • Large end terminals
  • High percentange of fill ratio
  • Wiring with or without terminal
  • RoHS compliant
  • Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
  • Halogen free
Certifications
  • UR ANSI/UL 1059
  • cUR CSA C22.2 No. 158
  • CE, ERIFLEX TDL EN 60947-7-1
  • EN 45545 EN 45545-2:2013
