Panduit FLCS2/9SOCU9BU Fusion Splice LC-UPC Simplex 9?m OS1/2 Connector

Manufacturer: Panduit Corp | Catalog # FLCS2/9SOCU9BU | Cooper Electric Part # 1896471
$28.82/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual Engineering Drawing

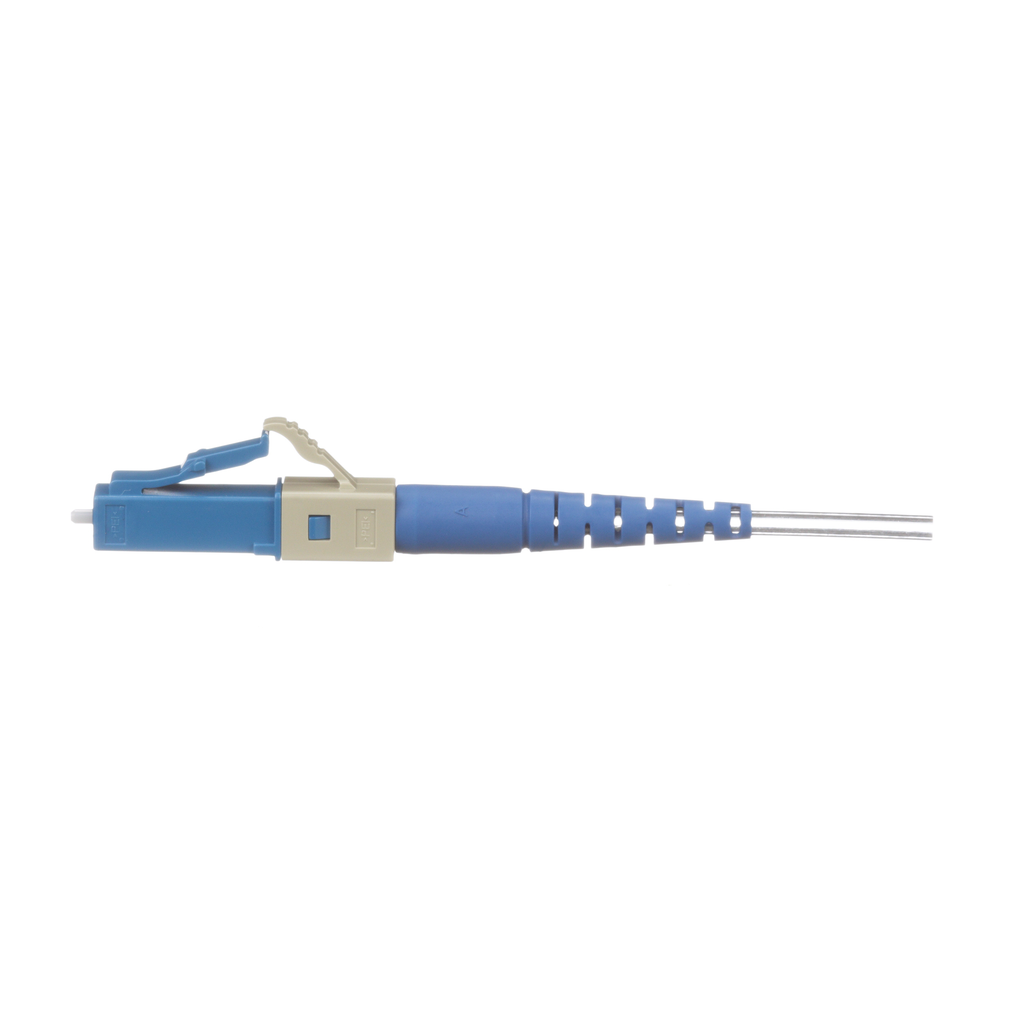

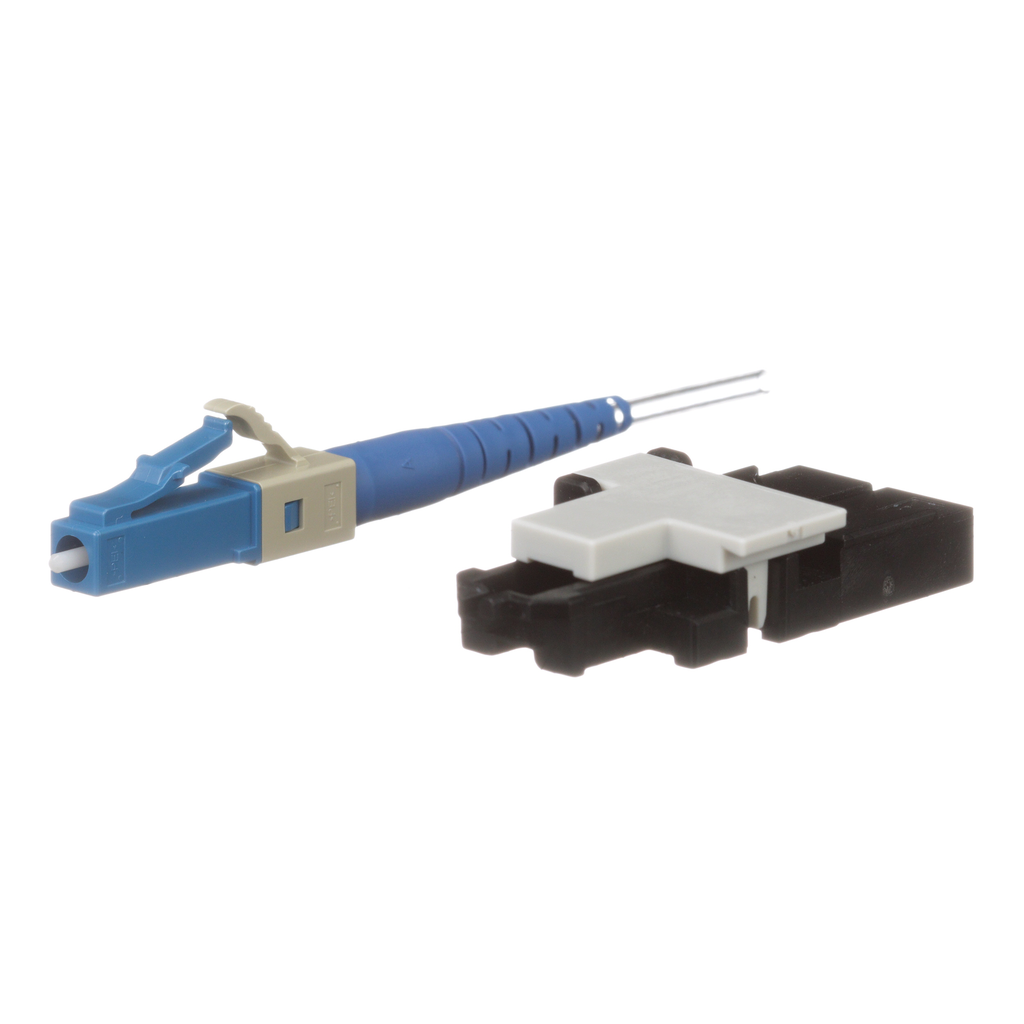

The Fusion Splice LC-UPC Fiber Optic Connector is a singlemode 9/125?m OS1/OS2 simplex fiber connector, intended for 900?m tight-buffered or 250?m loose-tube fiber installation. Field termination can be done in about two minutes on several common splice machine brands. The connector consists of a ferrule assembly with a bare fiber stub, a front housing, a rear housing with integral boot, and a splice protection sleeve.

Technical Information

Applications
Used for Initial Installation of Fiber Links, Mac Work or Repairs to Existing Links to Minimize Downtime
Body Type
Simplex
Boot Color
Blue
Connection Type
Fusion Splice
Connector Type
Pre-Polished LC
Fiber Type
OS1/OS2 9/125 m Single Mode, 250/900 m
Material
Zirconia Ceramic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-40 degrees C
Standard
CSA,RU Listed,RoHS
Temperature Rating
-40 to 167 degrees F
Type
Simplex, Fusion Splice-On

Manufacturer Information

Brand
Panduit Corp.

General Product Info

12-Digit UPC
613056573994
Color
Blue
GTiN
00613056573994
Product UPC
61305657399
Used With
250 or 900 m Tight Buffered Fiber Installation

Dimensions

Depth
mm
Outer Diameter
0.035 in
Width
75 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Japan
Standards and Certifications
  • Standards Met: RoHS compliant. Exceed TIA/EIA-568-B.3 requirements, TIA/EIA-604 FOCIS-10
