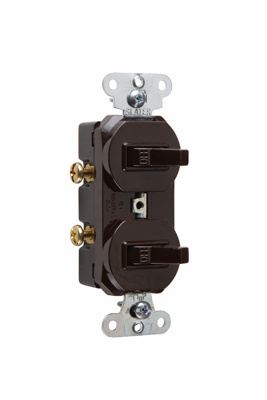

Pass & Seymour 690 Single Pole, Double Switch, 15A 120/277V - Brown

Manufacturer: Pass & Seymour / Legrand | Catalog # 690 | Cooper Electric Part # 189317
$1,407.52/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Single Pole, Double Switch, 15 amps, 120/277 volts, White.

Technical Information

Action
SP
Actuator
Toggle
Amperage
15 Amp
Applications
Residential/Commercial
Connection Type
Non-grounding,Side Wire
Contact Configuration
N-O
Contact Rating
120 V
Number of Poles
1 Pole
Operating Cycles
30000.0
Operating Temperature
Maximum continuous +60degrees C, minimum -30degrees C
Size
1.32 L x 0.94 W x 4.06 H In
TC Connection
Side wire, non-grounding
Type
Combination, Double
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007690019
Color
Brown
GTiN
00785007690019
Product UPC
78500769001
UNSPSC
39121406

Dimensions

Depth
0.94 Inch
Height
3.28 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
