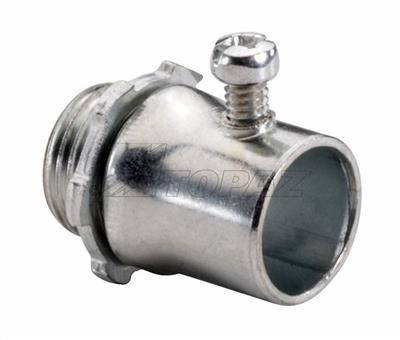

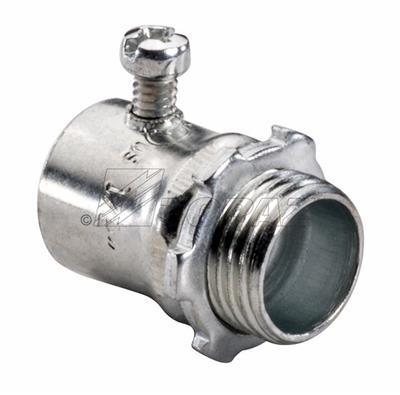

Topaz Corp 631S 1/2 Inch Steel Set Screw EMT Connector

Manufacturer: Topaz Electric | Catalog # 631S | Cooper Electric Part # 189149
$42.30/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Topaz EMT connectors with set screw type assembly provide secure concrete tight protection when taped and are available in sizes from 1/2. to 4.. Applications include use in dry locations to bond EMT thin wall conduits to electrical boxes or enclosures. Model sizes 2- 1/2. to 4. are suitable for both EMT and rigid conduit. Assemblies include steel locknut; constructed of strong and long lasting steel with zinc plated finish; most sizes UL listed. NEMA/ANSI FB-1 compliant.

Technical Information

Applications
For EMT Conduit
Material
Steel
Size
1/2 in
TC Connection
Threaded x Set Screw
Thread Length
0.406 IN
Type
Set Screw EMT Connector

Manufacturer Information

Brand
Topaz Lighting and Electric

General Product Info

12-Digit UPC
751338230002
Finish
Zinc
GTiN
00751338230002
Product UPC
75133823000
Used With
Join EMT To Box or Enclosure

Dimensions

Diameter
1.063 Inch
Length
1.469 Inch
Features
  • EMT CONNECTORS
  • STEEL-ZINC PLATED
  • SET SCREW TYPE
  • CONCRETE TIGHT WHEN TAPED
