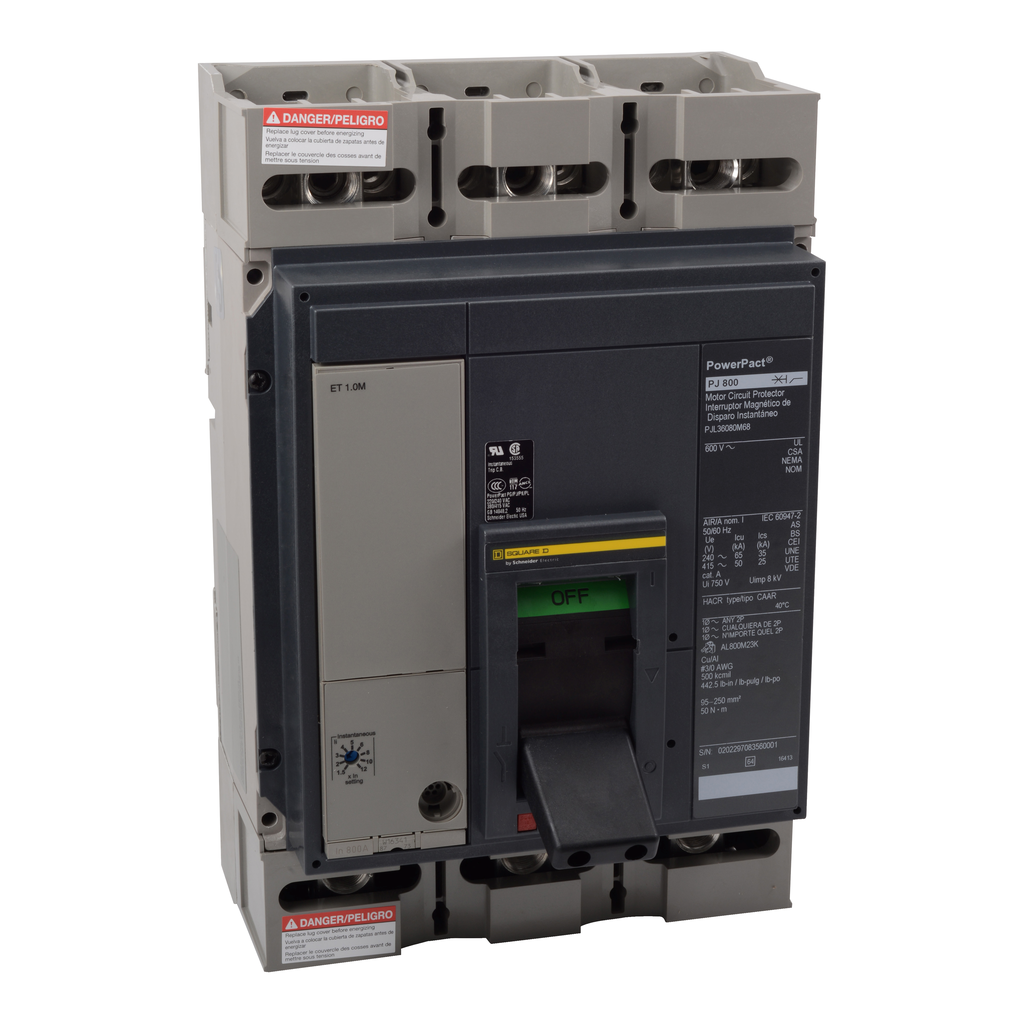

Product image for SQD PJL36100RE10 Circuit breaker, P
Image thumbnail 0
Image thumbnail 1
Email

SQD PJL36100RE10 Circuit breaker, P

Manufacturer: Square-D / Schneider | Catalog # PJL36100RE10 | Cooper Electric Part # 1887039
$17,911.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Molded Case Circuit Breaker; Type Basic Electronic ET 1.0I, I; Frame Type P; Voltage Rating 600 Volt AC 50/60 Hertz; Maximum AC Voltage Rating 600 Volt; Current Rating 1000 Amp; Number of Poles 3; Interrupting Rating 25 Kiloamp at 600 Volt AC; Terminal Type Line/Load Lug; Size 8.27 Inch Width x 8.05 Inch Depth x 16.16 Inch Height; Approval UL, CSA; RoHS/REACH Compliant; Mounting Type Unit; Control Type Toggle; Terminal Wire Size (4) 3/0 AWG to 500 KCMIL (Copper/Aluminum); Continuous Current Rating 80 Percent; Operation Ambient Air Temperature Rating 28 to 158 Deg F; Includes Extended Door Mount Black Rotary Handle; Application Distribution; Applicable Standard NOM 003, NEMA, IEC 60947-2

Technical Information

Amperage
1000 Amp
Current
1000 Amp
Frame
P-FRAME
Interrupt Rating
25, 65, 100 kAIC
Line Rated Current
1000-1000 A
Module Type
P-Frame
Mounting Type
Unit Mount Lug)
Net Weight
32 lb
Number of Poles
3 Pole
Size
16.16 in
Standard
CSA,IEC 60947-2,NEMA,NOM-003-SCFI-2000,UL
Storage Temperature
-50-85 degrees C
Strip Length
30 mm
TC Connection
AWG 3/0...500 KCMIL ALUMINIUM/COPPER)4,LUGS LOAD-LUGS LINE
Trip Range
1000 A
Trip Type
ELECTRONIC, BASIC, ET 1.0I, LI
Type
Circuit breaker
Voltage
50/60 Hz

Manufacturer Information

Brand
PowerPact™

General Product Info

12-Digit UPC
785901591290
GTiN
00785901591290
Product UPC
78590159129

Dimensions

Depth
8.05 Inch
Height
16.16 Inch
Length
8.05 Inch
Warranty Length
18 mth
Width
8.27 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,NOM,UL
Country of Origin
USA
Features
  • HACR Rated
  • RoHS/REACH Compliant
  • Mercury-Free
  • PVC-Free
  • Green Premium Product
Additional Information
  • Mounting Type Unit
  • Control Type Toggle
  • Terminal Wire Size (4) 3/0 AWG to 500 KCMIL (Copper/Aluminum)
  • Continuous Current Rating 80 Percent
  • Operation Ambient Air Temperature Rating 28 to 158 Deg F
  • Includes Extended Door Mount Black Rotary Handle
  • Application Distribution
  • Applicable Standard NOM 003, NEMA, IEC 60947-2
