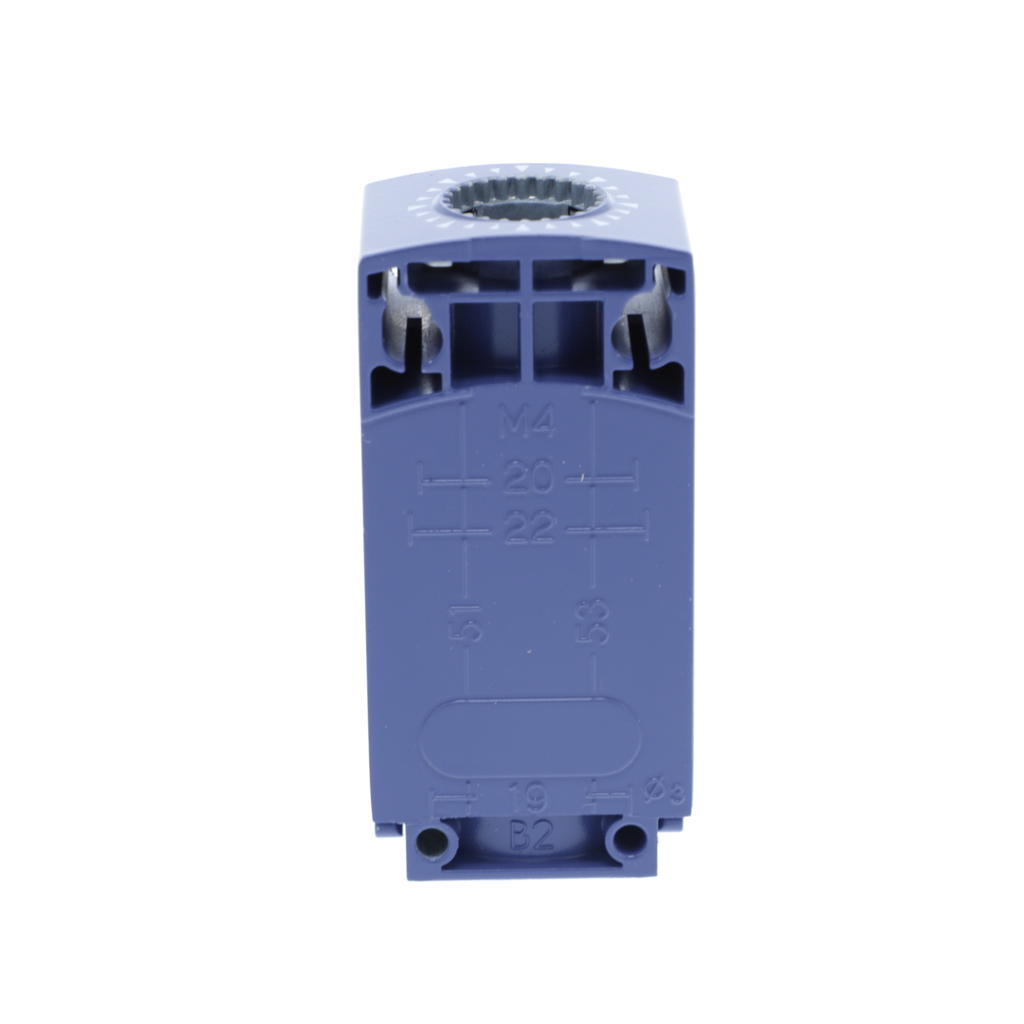

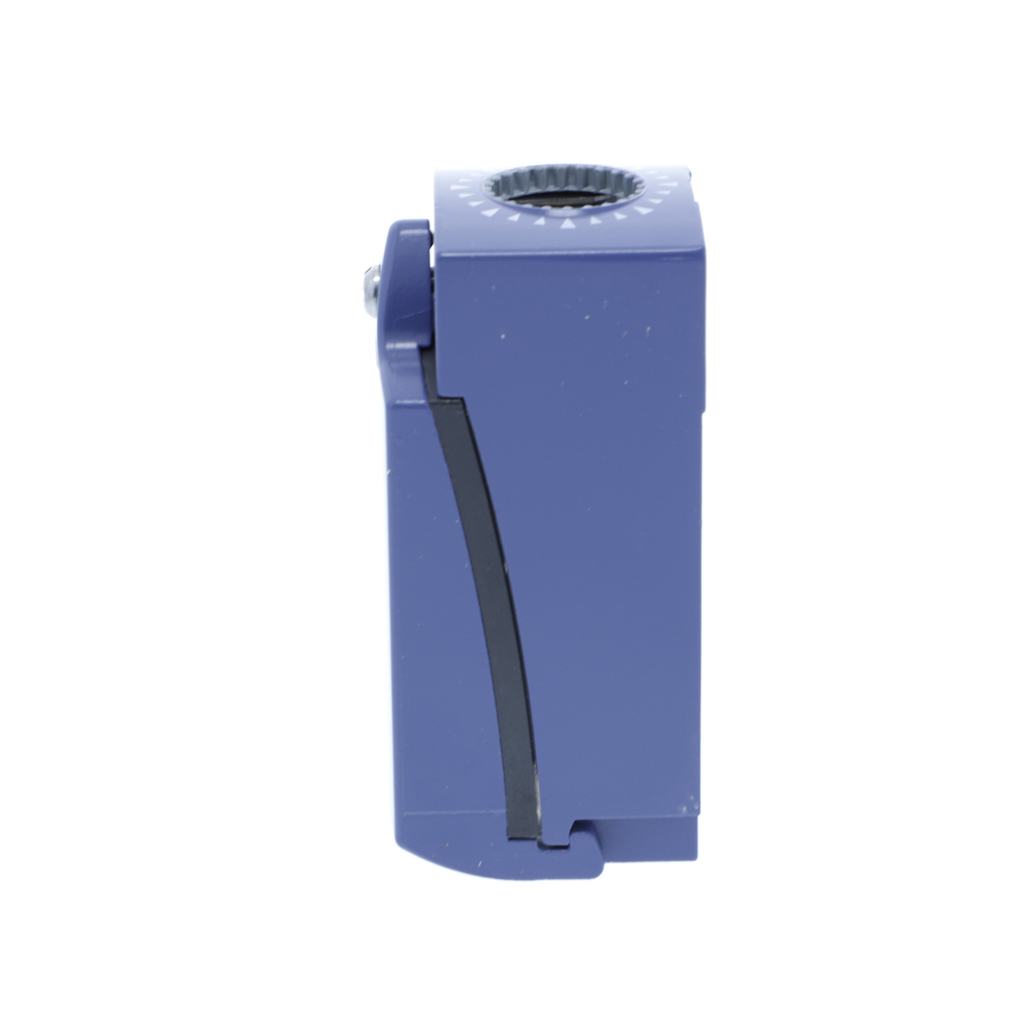

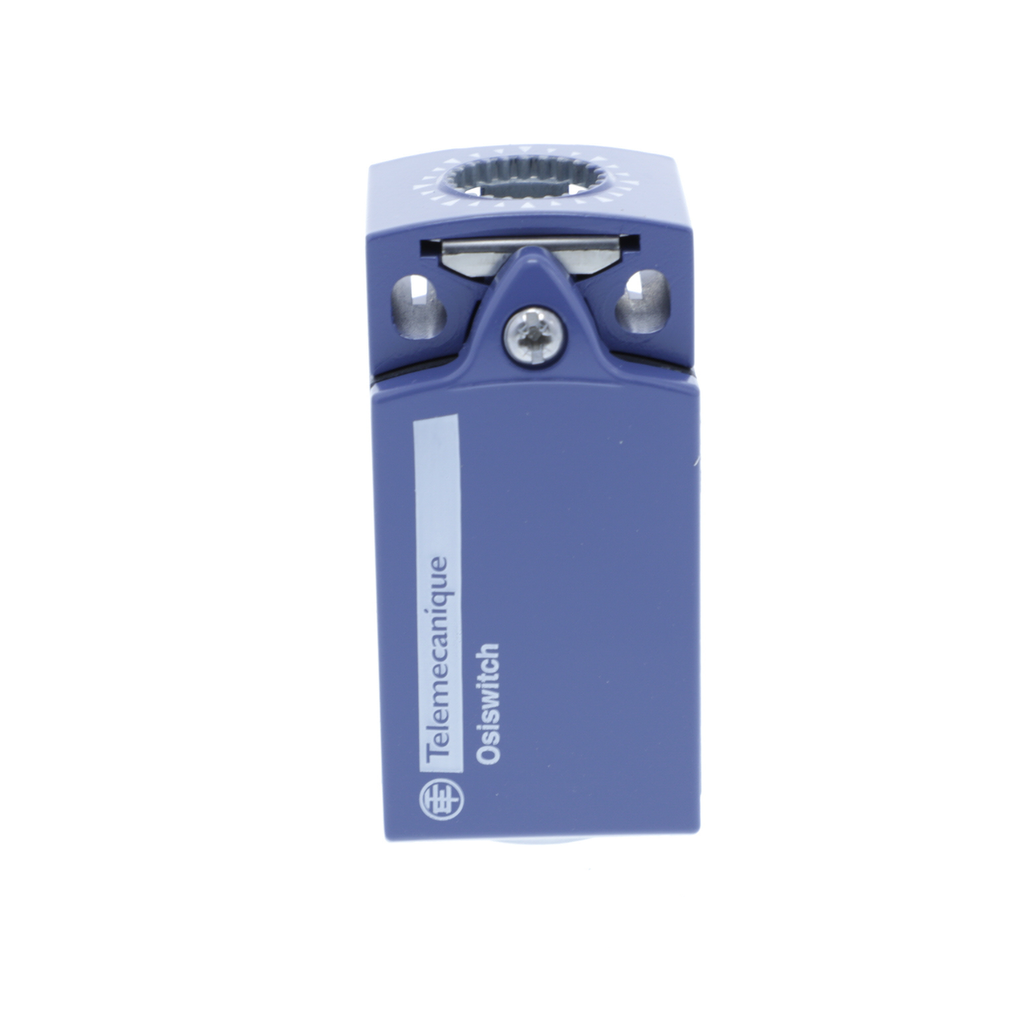

TES ZCD28 Limit switch body, Limit switches XC Standard, ZCD, compact, 2 NO, slow break

Manufacturer: TES Electric | Catalog # ZCD28 | Cooper Electric Part # 1886513
$61.76/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This ZCD body/contact assembly has a standard contacts and a Zamak body. It has 2 x NO simultaneous (slow break) contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Technical Information

Action
Slow-break, simultaneous
Applications
XCKD
Body Material
Zamak
Body Type
Fixed
Contact Configuration
2 NO
Contact Material
Silver Plated Contacts
Number of Poles
2 Pole
Operating Cycles
5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.5...2 X 2.5 MMA
Type
Limit switch body

Manufacturer Information

Brand
Telemecanique
Sub Brand
ZCD

General Product Info

12-Digit UPC
785901644897
GTiN
03389110185966
Product UPC
78590164489

Dimensions

Depth
30 mm
Height
65-65 mm
Warranty Length
18 mth
Width
31 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
