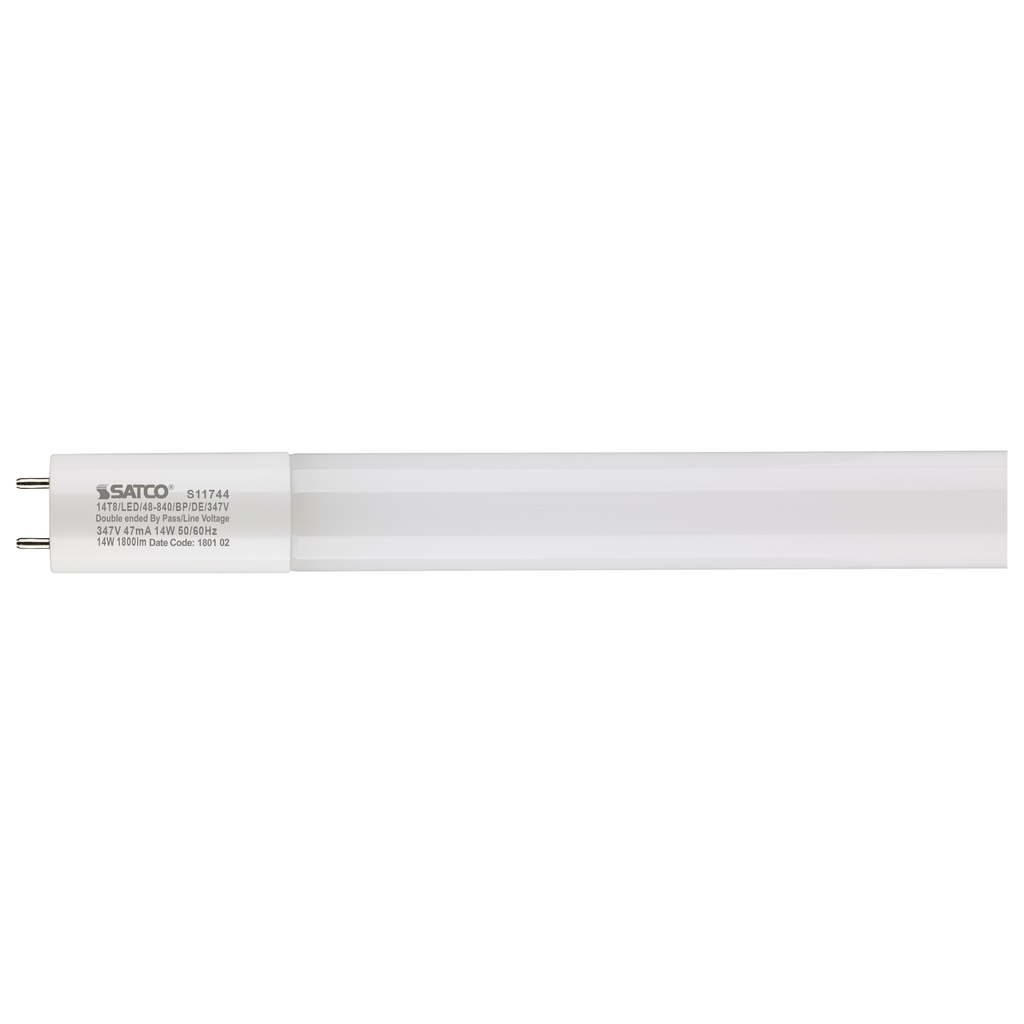

Product image for SATCO S11744 14T8/LED/48-840/BP/DE/
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

SATCO S11744 14T8/LED/48-840/BP/DE/

Manufacturer: Satco | Nuvo | Catalog # S11744 | Cooper Electric Part # 1886136
$14.92/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
SATCO|NUVO's S11744 14 watt, 4 foot, 4000K LED lamp is part of a new generation of Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps. These lamps are engineered for double-ended wiring and will not light unless the ballast is bypassed. Commercial venues, schools, hospitality, health care facilities - virtually any large scale lighting application - will benefit from immediate energy savings and less maintenance. With 347V, these lamps are for use in Canada.

Technical Information

Amperage
0.04 Amp
Average Rated Life
50000 hr
Base
G13
Beam Angle
210
Beam Spread
210
Color Temperature
Cool White
Correlated Color Temp
4000 K
Dimmable?
No
Incandescent Equivalent
75 W
Indoor Outdoor
Indoor;Outdoor
Lens Color
Frost
Lens Material
Glass
Lumens
1,800 Lumen
Material
Plastic
Operating Temperature
-20 degrees C
Power Factor
0.9
Size
47.78 in
Standard
Class E Requirements For Channel,Component Level Performance Per TIA,EIA-568-B.2-1 And ISO,Extreme 6+ System Components Meet Or Exceed The Category 6,IEC 11801-B. Components Certified Per UL And CUL Listed, NOM And ACA Requirements
Technology Type
LED
Type
T8
Voltage
347 Volt
Wattage
14 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923117442
Finish
Gloss
GTiN
00045923117442
Housing Color
White
Product UPC
04592311744
Weight
0.43 lb

Dimensions

Length
48 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Ballasting Requirements
  • Ballast Bypass
Features

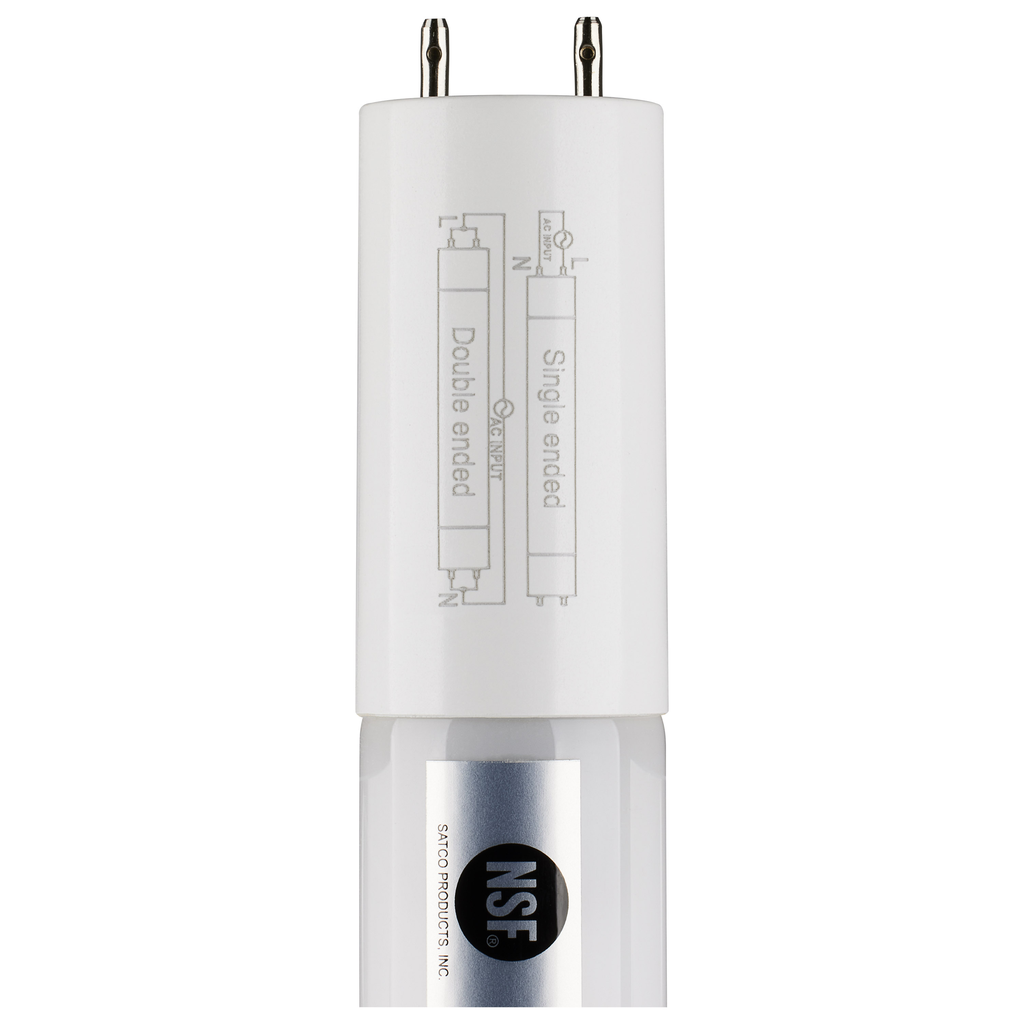

  • Double ended wiring
  • All glass tube
  • Direct wire 347 line voltage - FOR USE IN CANADA
  • Type B Ballast Bypass
  • Damp location rated, for both indoor and outdoor use
  • Long Life - 50,000 hours
  • DLC Listed
  • 4000K CCT, 1800 lumens
  • CANADA ONLY
Installation Notes
  • Not for use in vapor tight fixtures.
