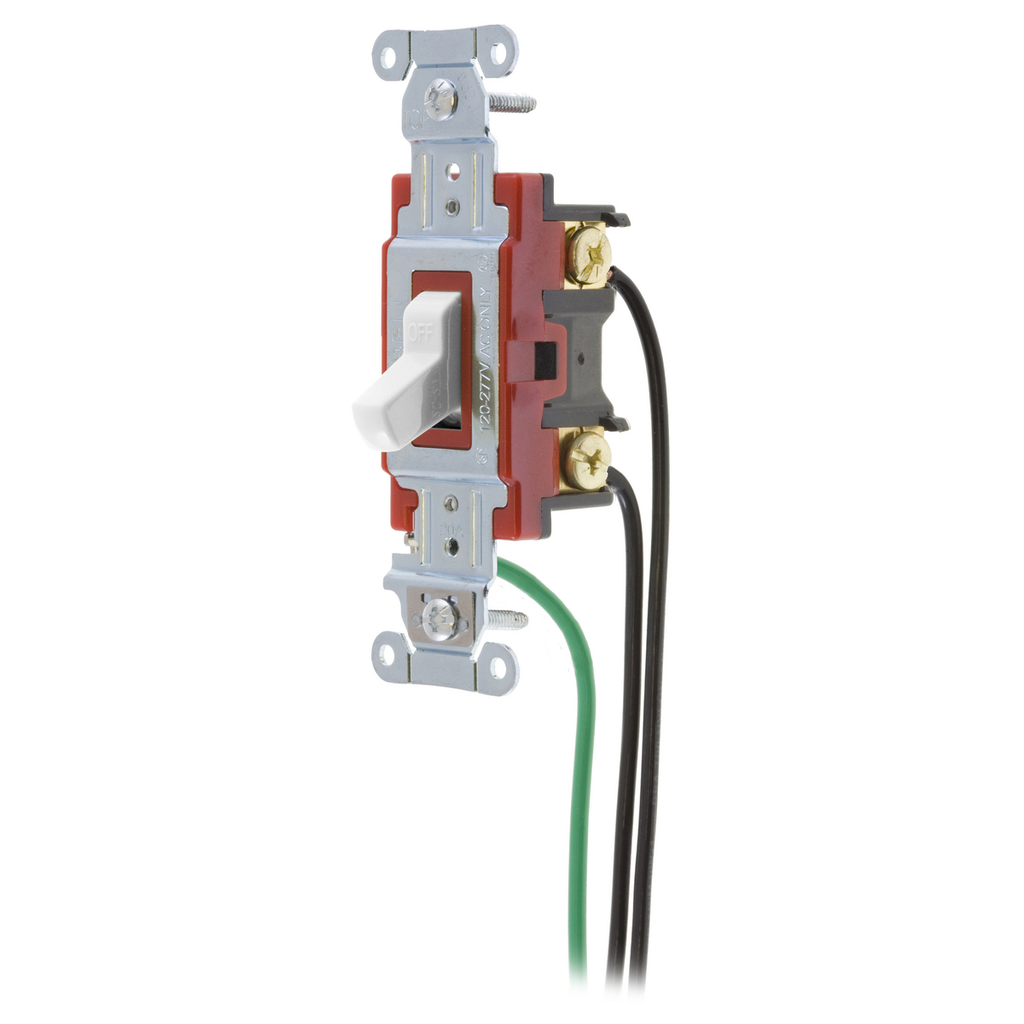

Product image for HWDK 1221PWW SWITCH, CAT#1221W W/8"
Image thumbnail 0
Image thumbnail 1
Email

HWDK 1221PWW SWITCH, CAT#1221W W/8"

Manufacturer: Hubbell Wiring Device | Catalog # 1221PWW | Cooper Electric Part # 1885468
$12.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, White

Technical Information

Action
Positive Snap
Actuator
Toggle
Amperage
20 Amp
Applications
Back and Side Wired
Base Material
Thermoplastic
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Grade
Industrial
Material
Thermoplastic,Thermoplastic
Max Current
20 A
Max Voltage
277 V
Number of Poles
1-1 Pole
Operating Cycles
50k
Operating Temperature
-40 degrees C
Screw Material
Brass
Size
4.18 in x 1.3 in x 1.83 in
Standard
UL
Style
Single Pole
TC Connection
Back and Side Wired
Toggle Material
Nylon
Type
Non-Reversing
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585188119
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585188119
Product Series
Heavy Duty
Product UPC
78358518811

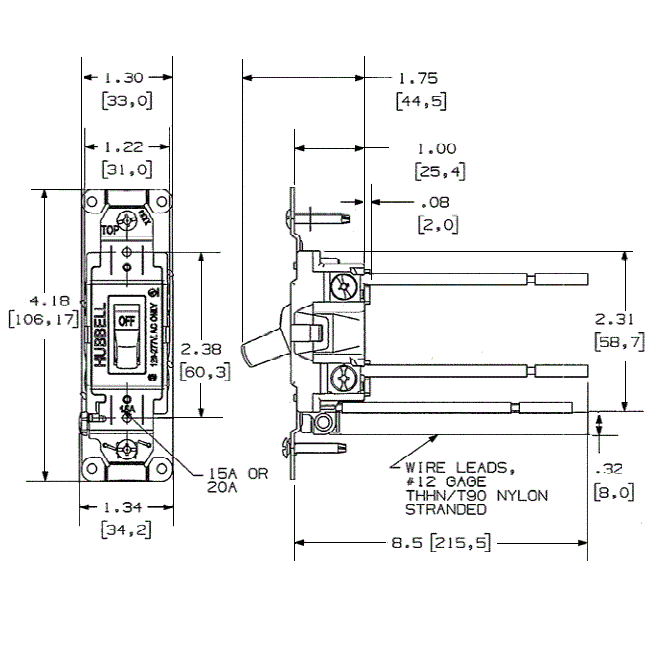

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.3 in

Certifications and Compliance

Country of Origin
China
Features
  • Steel, zinc plated bridge is corrosion resistant
  • Color Coded by Amperage makes inspection easy even when installed
  • Strip gauge for accurate wiring
