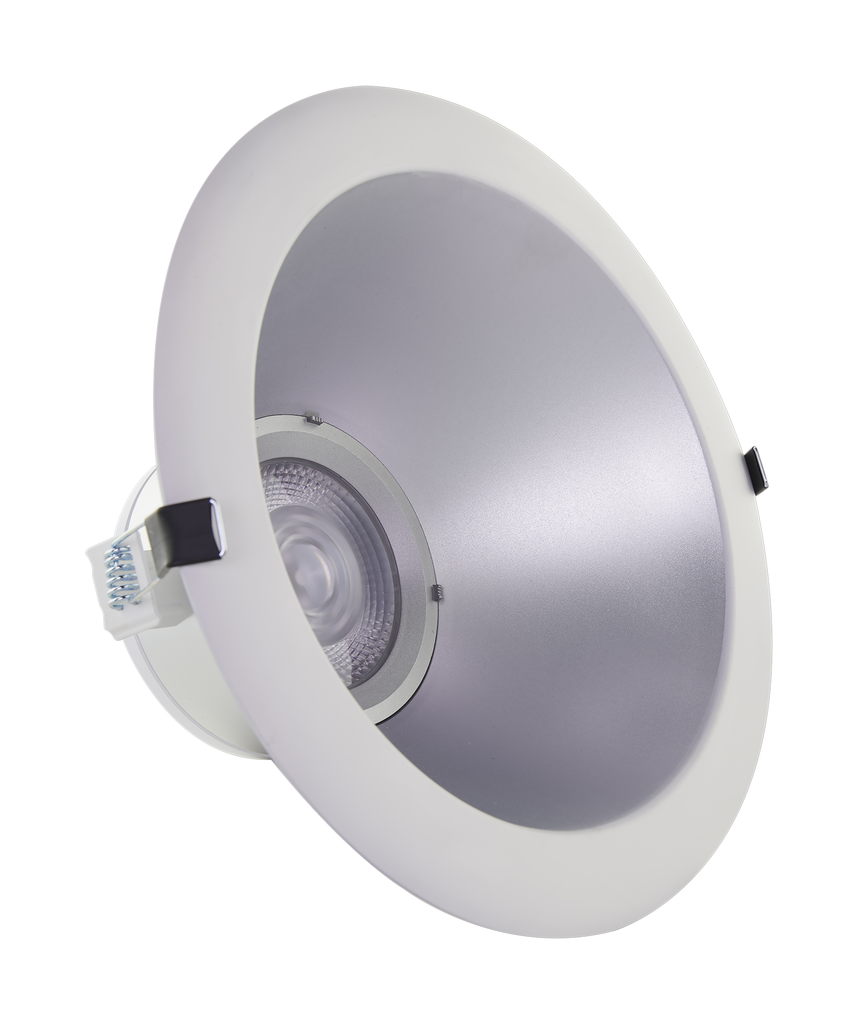

Product image for SATCO S11814 14.5WLED/CDL/4/ADJ-CCT
Image thumbnail 0
Image thumbnail 1
Email

SATCO S11814 14.5WLED/CDL/4/ADJ-CCT

Manufacturer: Satco | Nuvo | Catalog # S11814 | Cooper Electric Part # 1882475
$74.06/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

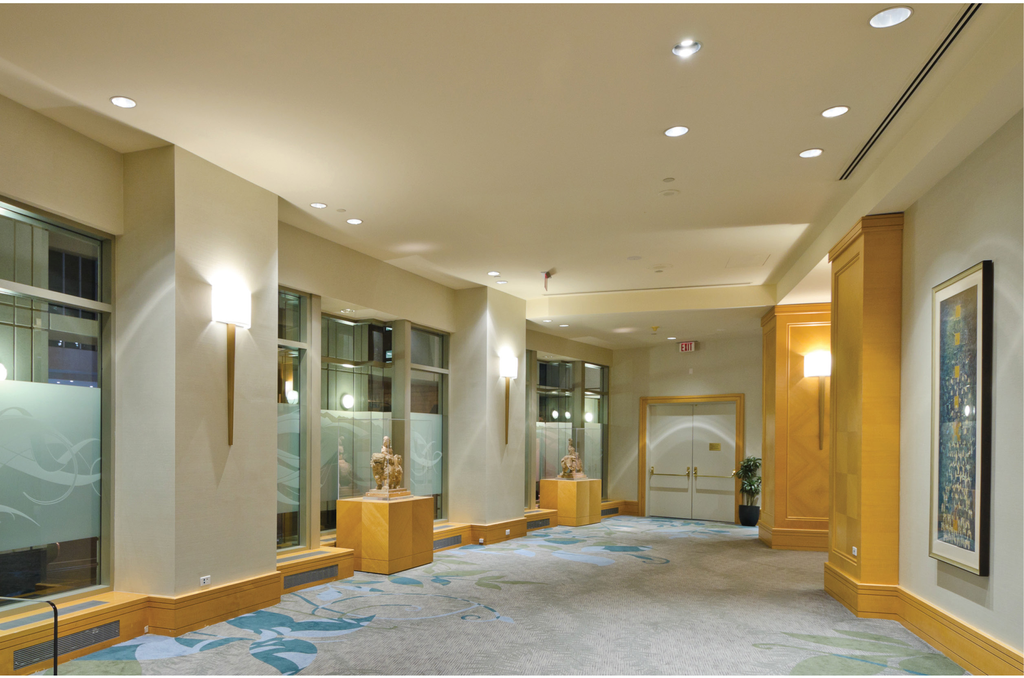

Satco's S11814 wattage selectable, 4 inch LED commercial downlight is the perfect solution for offices, stores, hospitals, and hotels. Dimmable and CCT selectable, this direct wired downlight installs easily even in the most challenging renovations and new constructions. Versatile and simple, this downlight delivers 50,000 hours of warm to cool white light.

Technical Information

Average Rated Life
50000 hr
Ballast Type
Self
Beam Angle
40
Beam Spread
40
Color Temperature
Cool White,Warm White
Correlated Color Temp
2700 K
Dimmable?
Yes
Fixture Wattage
11 W
Incandescent Equivalent
45 W
Indoor Outdoor
Indoor
Lamp Type
LED
Lamp Wattage
11 W
Lens Color
Clear
Lens Material
Polycarbonate
Lens Type
Polycarbonate
Lumens
1,020 Lumen
Material
Aluminum
Mounting Type
Ceiling
Number of Lamps
1
Operating Temperature
-20 degrees C
Power Factor
0.99
Style
Utility
Technology Type
LED
Type
Commercial Downlight Retrofit
Voltage
120 Volt
Wattage
11 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923118142
Color
Colorless
Finish
Silver
Fixture Type
Round
GTiN
00045923118142
Housing Finish
Silver
Product UPC
04592311814
Weight
1.23 lb

Dimensions

Diameter
4.65 Inch
Height
2.69 Inch
Length
4.65 Inch
Warranty Length
5 yr
Width
4.65 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
China
Features
  • Selectable wattage, lumens, and CCT
  • Remote driver and J-box with knockouts
  • Quick connect feature for easy installation
  • 5 year limited warranty
Replaced By Products
  • S8705
Prop 65
  • Lead
Accessory Products
  • 80-2755
  • 80-946
  • 80-959
  • S8003
  • ADPD4FBL3P2W4
  • DF10P
  • DS710-10Z
  • DVSCSTV
  • DVSTV
  • IP710-LFZ
  • MS-Z101
  • MS-Z101-V
  • NTSTV-DV
  • SF10P
Installation Notes
  • Can be installed with or without the rough-in plate (80-959)
