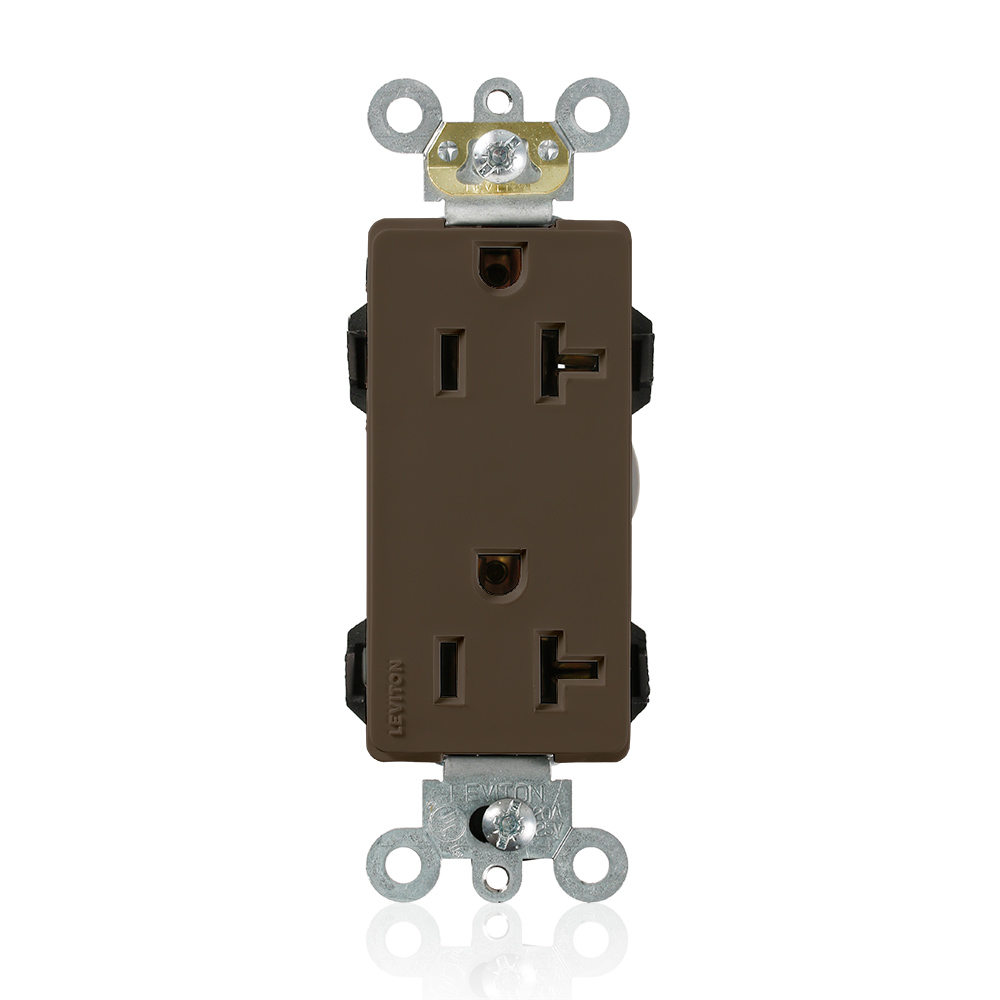

Product image for LEV M1636 BR LEV-LOK REC DEC SLIM 2
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LEV M1636 BR LEV-LOK REC DEC SLIM 2

Manufacturer: Leviton Mfg Co | Catalog # M1636 | Cooper Electric Part # 1882409
$14.29/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

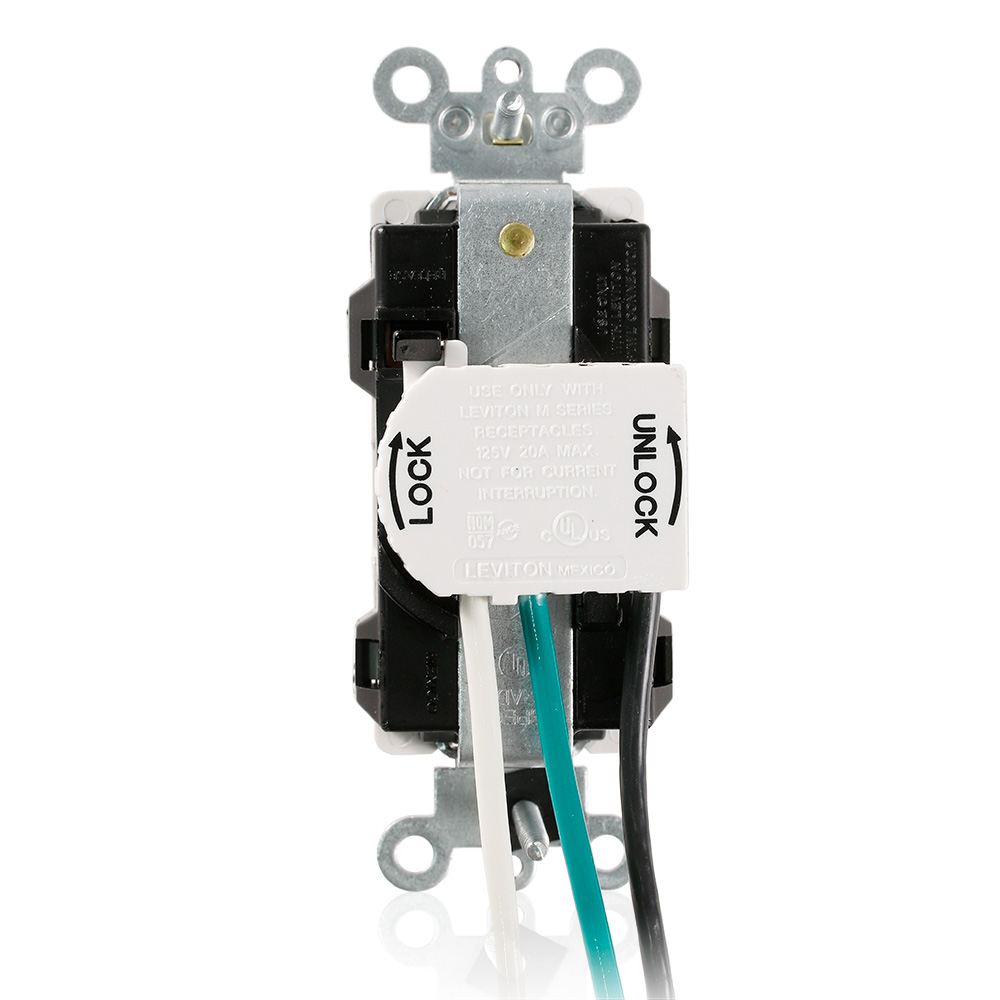

Lev-Lok Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Modular, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Brown Mating Lev-Lok Wiring Module Required for Use

Technical Information

Amperage
20 Amp
Applications
Commercial
Base Material
Nylon
Conductor Size
12 AWG
Connection Type
Modular Terminal
Cover Material
Nylon
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
WD-1
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
462 H x 1.549 W x 1.245 D IN
Standard
ANSI C-73
TC Connection
Modular Terminal
Temperature Rating
-40 - 60 degrees C
Temperature Rise
200 %
Termination Type
Modular
Type
Duplex Outlet,Straight Blade
Voltage
125 Volt
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Lev-Lok®

General Product Info

12-Digit UPC
078477364222
Color
Brown
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477364222
Product UPC
07847736422

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms. Calculate Time & Money Saved with the Lev-Lok Savings Calculator!
Patents
  • US7357652
  • US7666010
  • US8096818
