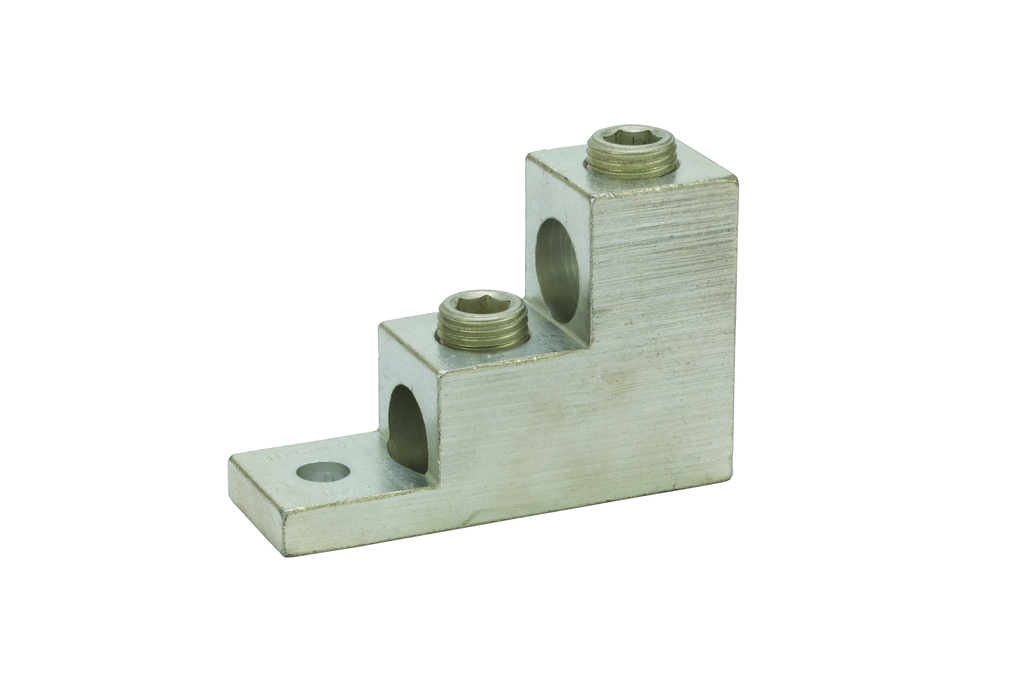

Product image for NSI 300T-2 5/16 Inch 6 AWG to 300 MCM Tinned Aluminum 2-Conductor Stacked Lug
Email

NSI 300T-2 5/16 Inch 6 AWG to 300 MCM Tinned Aluminum 2-Conductor Stacked Lug

Manufacturer: NSi | Catalog # 300T-2 | Cooper Electric Part # 18823
$22.10 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
2 Port Stacked Lug 300 MCM - 6 AWG Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".

Technical Information

Applications
Wire Termination
Bolt Size
5/16 IN
Conductor Size
6 AWG-300 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
1
Number of Conductors
2
Number of Poles
1 Pole
Number of Ports
2
Standard
CULUS
Temperature Rating
90 degrees C
Type
Aluminum Stacked Lug
Voltage
600 Volt
Wire Size
6 AWG-300 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001801
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001801
Product UPC
66238100180

Dimensions

Height
2 Inch
Length
3 Inch
Warranty Length
1 yr
Width
1 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
Features
  • Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
