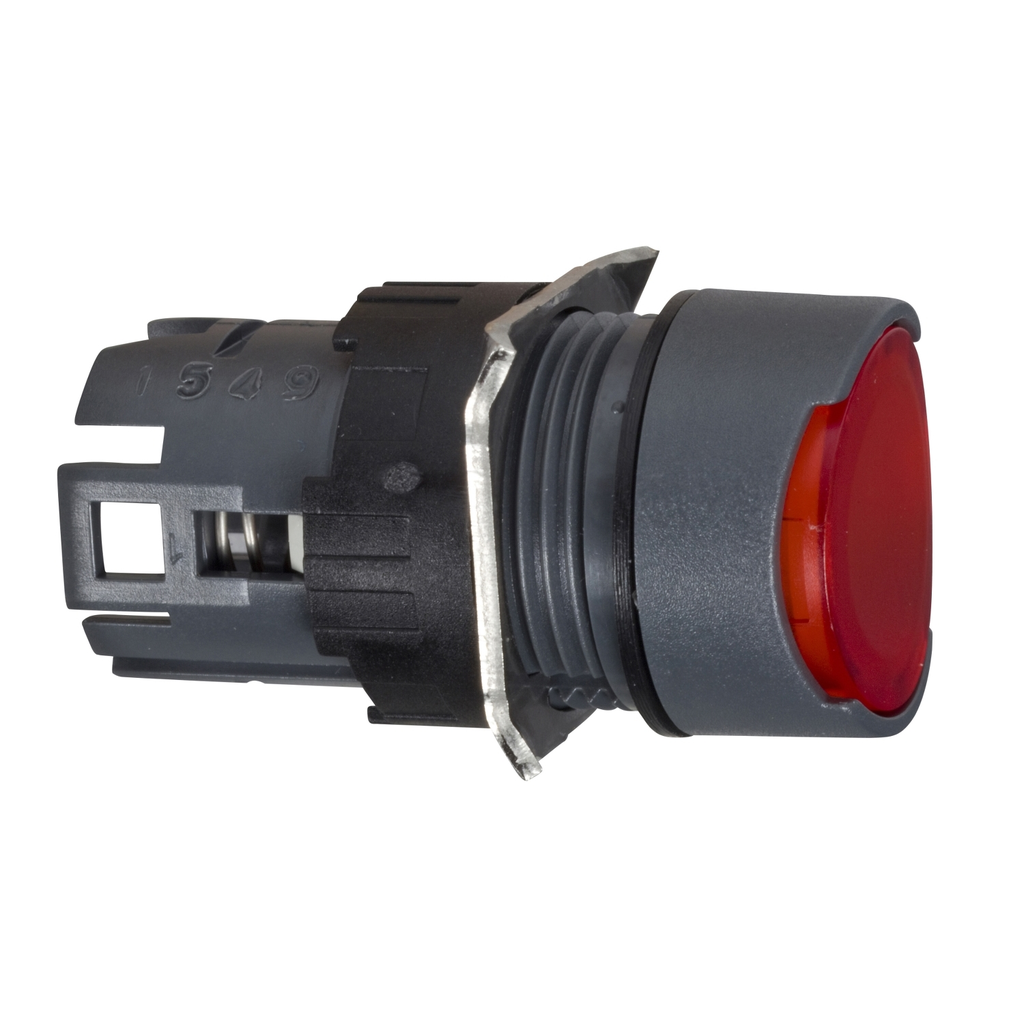

Square D ZB6AF4 16 mm Red Round Flush Illuminated Push Button Operator

Manufacturer: Square-D / Schneider | Catalog # ZB6AF4 | Cooper Electric Part # 1882216
$10.58/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony ZB6AF4 is a red flush illuminated push button head, latching for integral LED. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Technical Information

Action
LATCHING
Actuator
LATCHING,RED FLUSH, UNMARKED
Applications
Integral LED
Bezel Material
Plastic
Enclosure
NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94
Indicator
RED
Net Weight
0.016 kg
Operating Temperature
-25-70 Adegrees C
Size
0.63 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-5,JIS C 852,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for illuminated push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB6

General Product Info

12-Digit UPC
785901359777
GTiN
03389110776171
Product UPC
78590135977
Weight
0.016 kg

Dimensions

Height
18 mm
Warranty Length
18 mth
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,GOST,UL
Country of Origin
Spain
