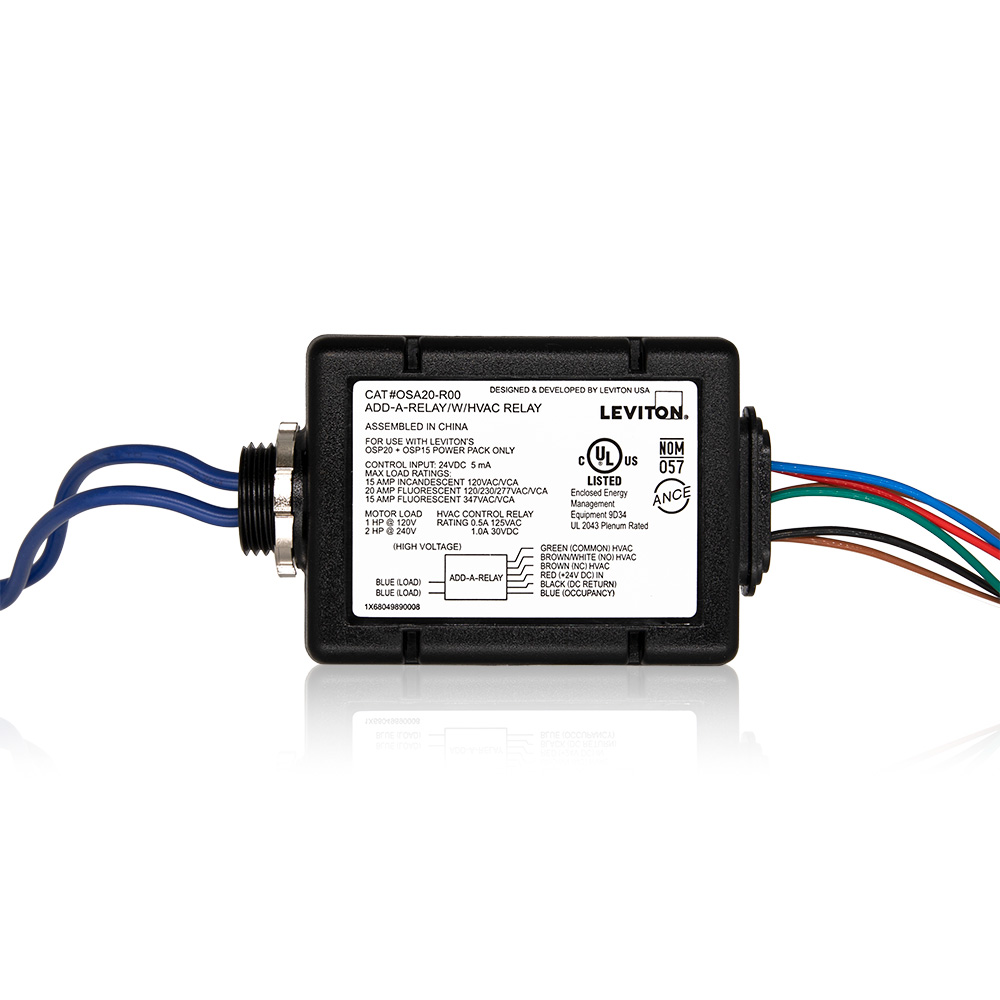

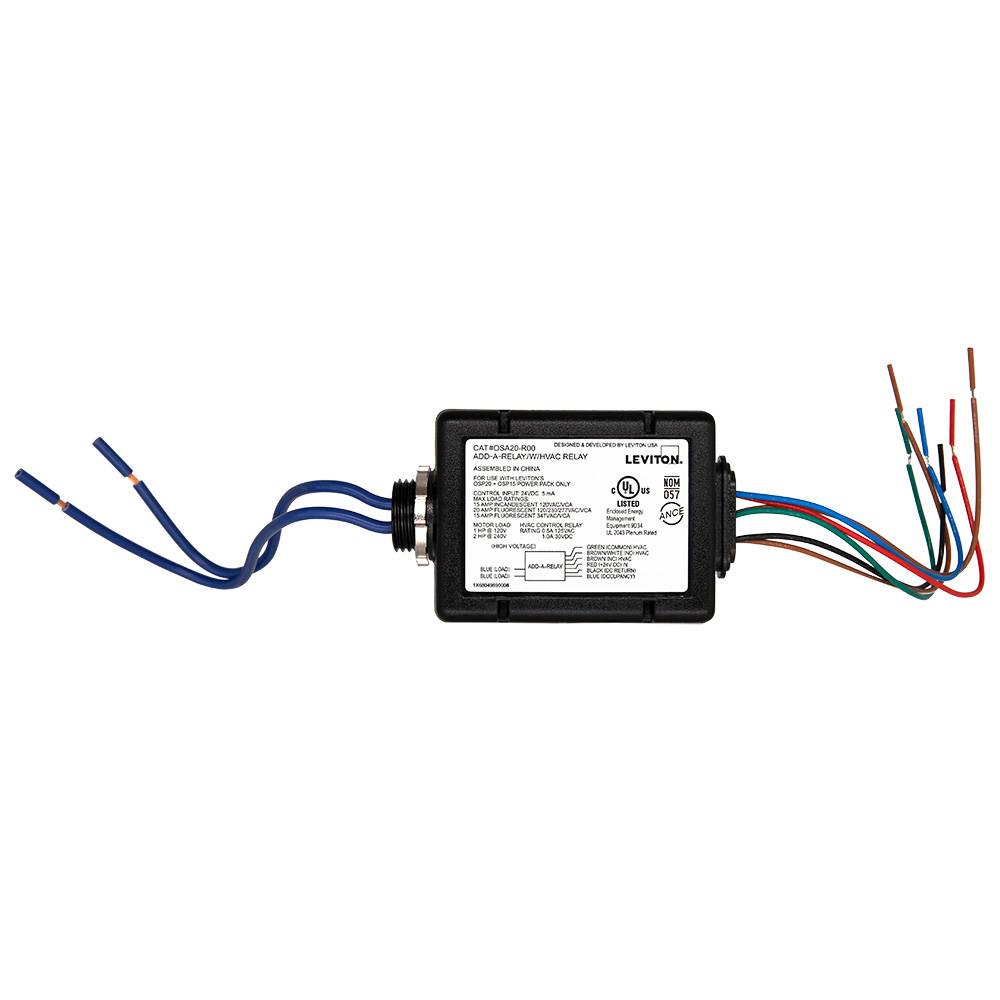

LEV OSA20-R00 EB ADD-A-RELAY W/HVAC

Manufacturer: Leviton Mfg Co | Catalog # OSA20-R00 | Cooper Electric Part # 187789
$62.60/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
15A INC 20A FL 120/277VAC 15A FL 347VAC, Add-A-Relay for Occupancy Sensor w/ HVAC Relay 0.5A 125VAC 1.0A 30VDC, Title 24 Compliant, ASHRAE 90.1 Compliant

Technical Information

Amperage
0.5 Amp
Applications
Commercial
Contact Material
Silver Alloy
Device Type
Add-A-Relay
Frequency
50 Hz
Material
Plastic
Mounting Type
Box
Operating Temperature
104 degrees F
Sensor Type
Power Pack
Standard
US,cUL
Type
Add-A-Relay
Voltage
277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
C/I OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477166512
Color
Black
Environmental Conditions
0 - 90 PCT
GTiN
00078477166512
Product UPC
07847716651

Dimensions

Depth
1.432 Inch
Height
2.4 Inch
Length
1.432 Inch
Warranty Length
5 yr
Width
3.811 in

Certifications and Compliance

Country of Origin
Please Contact Customer Service
Features
  • Companion relay for Power Pack provides additional load capacity
  • Switches incandescent, magnetic and electronic fluorescent, magnetic and electronic low-voltage and motor loads
  • Compact size and light weight allows easy mounting through knockout in junction box (from either inside or outside junction box) with a simple twist-on nut. Unit is also approved for mounting in ballast channel cavity.
  • Single or multiple luminaire control from one or more sensors
  • HVAC Relay for signaling energy management systems and controls
  • Zero crossing circuitry provides increased durability
  • CUL/US, FCC and NOM Certified
  • Meets ASHRAE Standard 90.1 requirements
  • Backed by a Limited 5-Year warranty
  • Containing both a 24VDC supply and a 20A line voltage relay for most models, the Leviton compact power pack provides low voltage power and line voltage control for Leviton Occupancy Sensors . Versions include Auto-ON and Manual-ON inputs for occupancy sensors, Hold-ON and Hold-OFF capabilities, and a local input for momentary or maintained dry contact switches. The OSP Power Pack Series is also used to supply power to the OSA Add-A-Relay model. The Power Pack conveniently mounts in a knockout hole of a standard junction box. The unit can be placed inside or outside the junction box with a simple twist-on nut. Do you have a question about an occupancy sensor or vacancy sensor?
