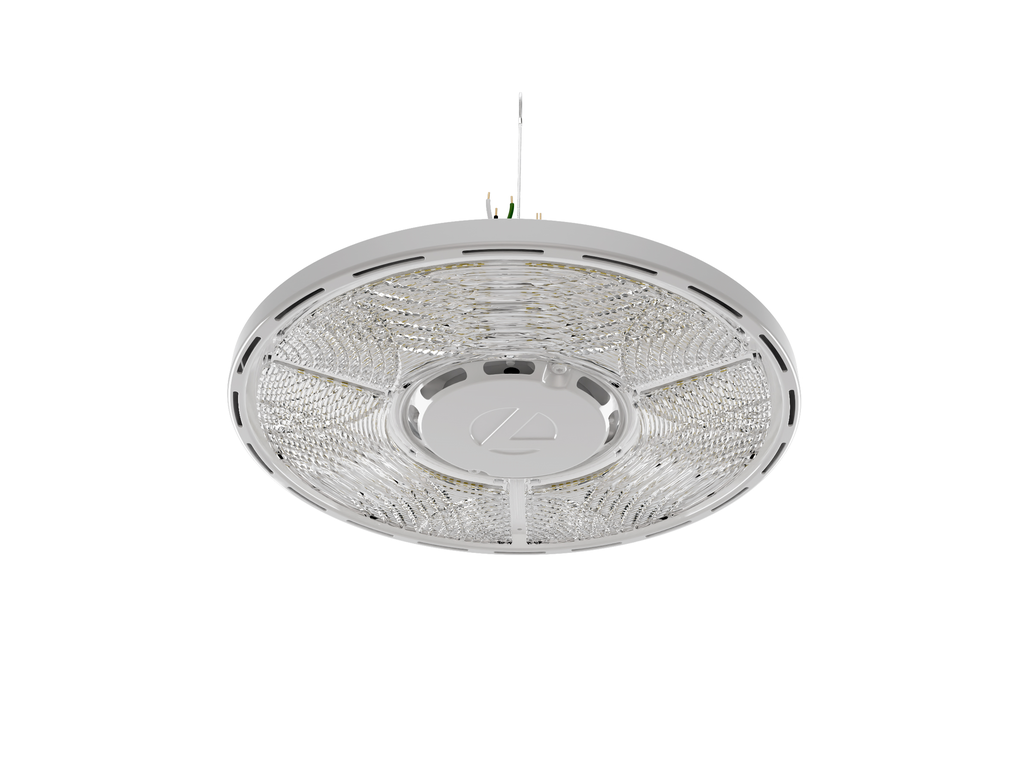

Product image for Lithonia CPRB-ALO13-UVOLT-SWW9-80CRI-DWH Compact Pro® LED Round High Bay Fixture, 12K/15K/18K Switchable Lumens, Switchable White 40K/50K, 80 CRI, 120-347V - Gloss White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Lithonia CPRB-ALO13-UVOLT-SWW9-80CRI-DWH Compact Pro® LED Round High Bay Fixture, 12K/15K/18K Switchable Lumens, Switchable White 40K/50K, 80 CRI, 120-347V - Gloss White

Manufacturer: Lithonia Lighting | Catalog # CPRB-ALO13-UVOLT-SWW9-80CRI-DWH | Cooper Electric Part # 1877570
$150.60/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
39 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet
The Compact Pro High Bay (CPRB) is a budget-oriented high bay designed specifically with the contractor in mind. Its compact design makes it easier and quicker to install. CPRB is built with quality to last and performance to meet the needs of the job, making it the best choice for affordable and reliable light-duty industrial applications

Technical Information

Applications
Common Areas,Sports And Recreation,Warehouses
Average Rated Life
54,000 hr
Color Rendering Index
80
Color Temperature
4000 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
Switchable Lumen
Material
Steel
Mounting Type
Pendant,Surface,Suspended
Power Source
Hardwired
Standard
CSA
Style
Traditional
Type
High Bay
Voltage
120 Volt
Wattage
132 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196182615023
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
GTiN
00196182615023
Product Type
High Bay
Product UPC
19618261502
Shape
Round
Weight
5 lb

Dimensions

Height
3.16 Inch
Length
12.98 Inch
Warranty Length
5 yr
Width
12.98 in

Certifications and Compliance

Country of Origin
Malaysia
Features
  • The Compact Pro High Bay (CPRB) is a budget-oriented high bay designed specifically with the contractor in mind. Its compact design makes it easier and quicker to install. CPRB is built with quality to last and performance to meet the needs of the job, making it the best choice for affordable and reliable light-duty industrial applications
  • TECHNOLOGY: Adjustable Lumen Output (12000/15000/18000) and Switchable White (4000K/5000K) features allow for 9 potential configurations within one fixture, using two switches
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • CONTROLS: 0-10V dimming driver standard for 10% to 100% dimming capabilities; Available with nLight® AIR Wireless Controls option
  • RATINGS: CSA listed, Damp location listed, IP54 rated, designed for ambient temperature ranging -40°C to 55°C
  • VOLTAGE: UVOLT driver 120-347V
  • HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours
  • INSTALLATION: Includes patent-pending permanently attached hook with safety latch feature and 7' galvanized safety cable standard
  • BATTERY: Emergency battery pack, 40W AC output, sold separately
  • WARRANTY: 5-year limited warranty
