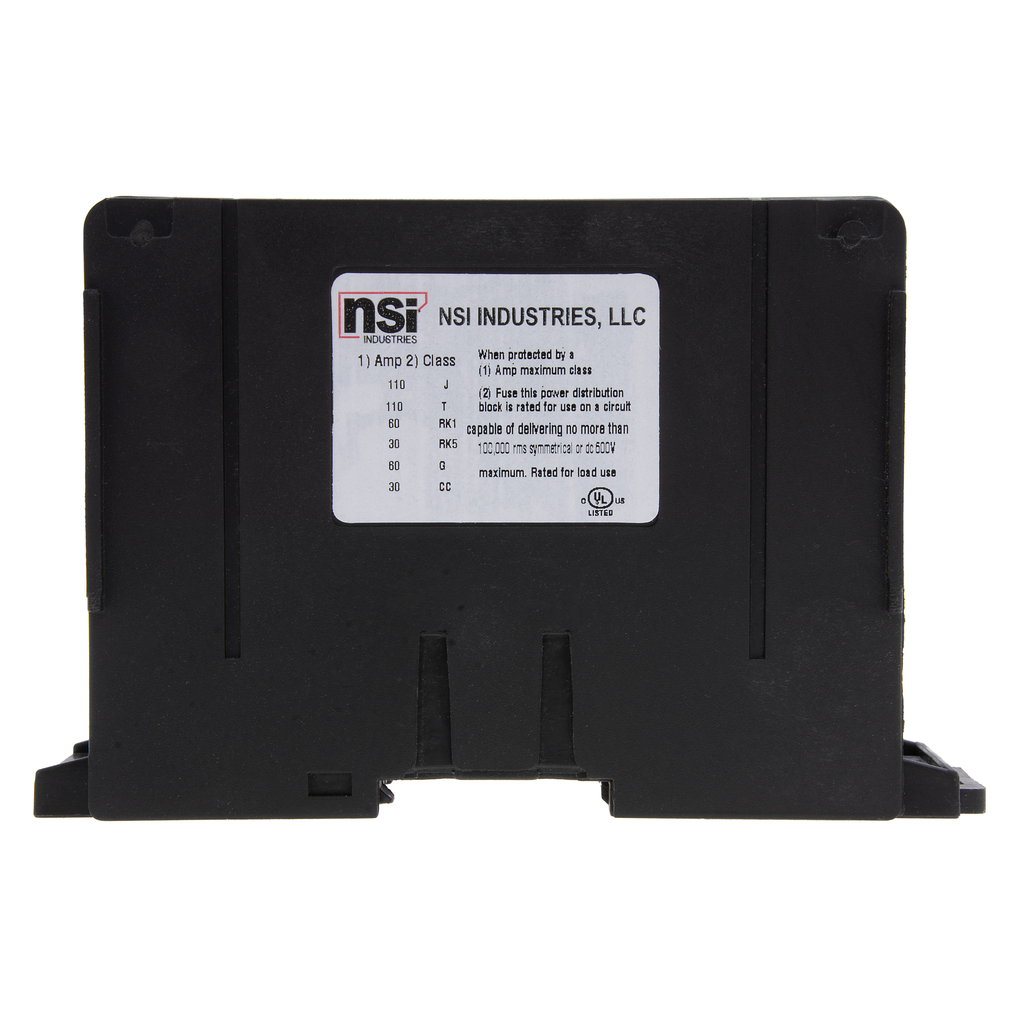

Product image for NSI NPDB-26-2/0-1 NPDB LINE 2X2/0-1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

NSI NPDB-26-2/0-1 NPDB LINE 2X2/0-1

Manufacturer: NSi | Catalog # NPDB-26-2/0-1 | Cooper Electric Part # 1874161
$73.87/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
100kA Short Circuit Current Rated Power Distribution Block. 2 x 2/0-14 AWG Line, 6 x 4-14 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

Technical Information

Amperage
350 Amp
Applications
Splicing of 2 conductors of 22 -26 AWG UTP communication wiring
Material
Aluminum
Max Temperature
90 degrees C
Operating Temperature
90 degrees C
Size
L=5.800 - W=2.750 - H=3.750 IN
Type
Single Key Access
Voltage
600 Volt
Wire Size
2/0-14 AWG, 4-14 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
NPDB Power Distribution Blocks

General Product Info

12-Digit UPC
662381367518
Color
Black,Orange,White
Finish
Tin Plated
GTiN
00662381367518
Product UPC
66238136751

Dimensions

Height
3.74 Inch
Length
5.79 Inch
Warranty Length
1 yr
Width
1.94 in

Certifications and Compliance

Country of Origin
India
Features
  • Locking Mechanism to lock/release block on DIN rail
  • Modular design allows for insertion on standard 35mm DIN rail or through mounting holes provided
  • Dual-rated AL9CU for use with copper or aluminum conductors
Certifications and Standards
  • cULus
  • UL Listed
  • UL 1953, UL 1059
